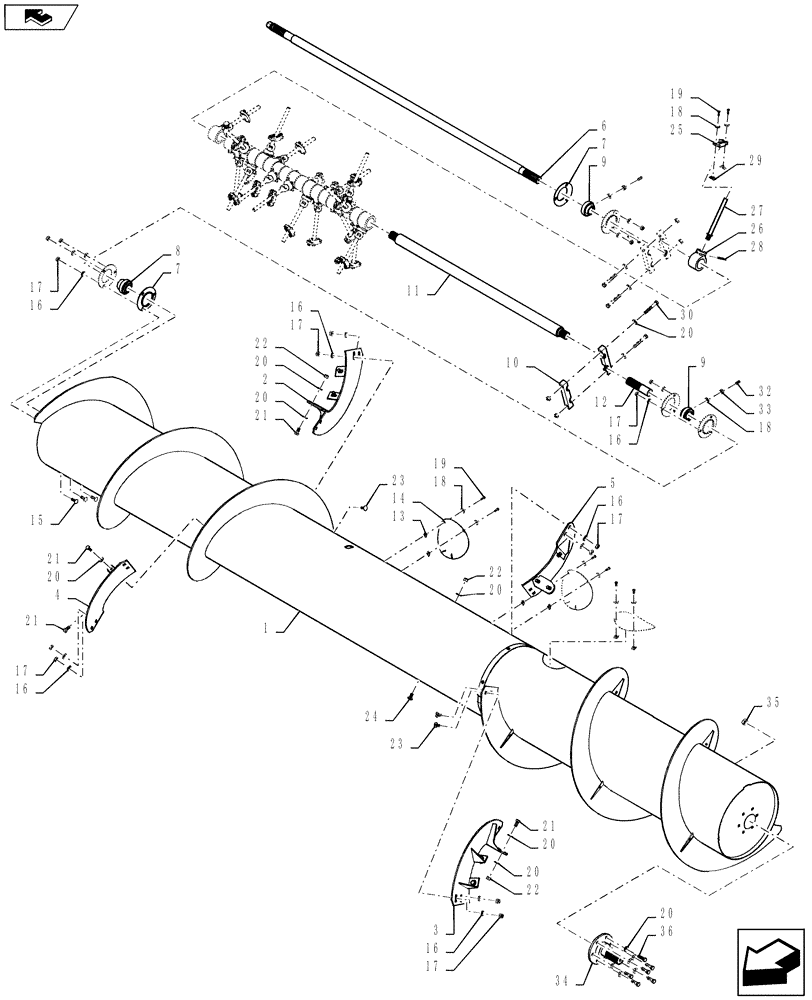

Запчасти Case IH 3016 (58.120.06[01]) - AUGER, 12FT, S.N. YHS071596 AND PRIOR (58) - ATTACHMENTS/HEADERS

1

84546346

AUGER

, Serial Range: -YES049060

1шт.

1

47484268

AUGER

, Start Serial: YES058001

1шт.

2

84224162

AUGER FLIGHT

RH, Serial Range: -YES049060

1шт.

2

47448677

AUGER FLIGHT

RH, Start Serial: YES058001

3шт.

3

84224159

AUGER FLIGHT

LH, Serial Range: -YES049060

1шт.

3

47448673

AUGER FLIGHT

LH, Start Serial: YES058001

3шт.

4

84263896

AUGER FLIGHT

RH, Serial Range: -YES049060

1шт.

5

84263900

AUGER FLIGHT

LH, Serial Range: -YES049060

1шт.

6

84283594

SHAFT

1шт.

7

36403

BEARING HOUSING

6шт.

8

84814912

BALL BEARING,35 mm ID x 72 mm OD x 51.1 mm

1шт.

9

87323339

BALL BEARING,35mm ID x 72mm OD x 19mm W

2шт.

10

86620720

CRANKED LINK

2шт.

11

84261948

SHAFT

1шт.

12

87392469

SHAFT

LH

1шт.

13

86014250

SPRING NUT,M6 x 1.0

8шт.

14

87017844

COVER

4шт.

15

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

3шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

17шт.

17

100016

NUT,M10 x 1.5, Cl 8

17шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

50шт.

19

47819060

FLANGE BOLT,Hex, M6 x 1 x 12mm, Full Thd, Cl 8.8

48шт.

20

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

38шт.

20

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

, Serial Range: -YDS036955

6шт.

Use with Ref 34

1шт.

20

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

, Start Serial: YDS036956

6шт.

Use with Ref 34

1шт.

21

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

14шт.

22

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

20шт.

23

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

24

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

6шт.

25

84287636

GUIDE

20шт.

26

84362468

JOINT

20шт.

27

84194057

FINGER,Assembly, Grain Header

20шт.

28

740591

SPRING,M10 x 67

20шт.

29

84315756

NUT

40шт.

30

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

4шт.

32

84262759

SET SCREW,M6 x 0.75 x 16mm

2шт.

33

84268307

NUT,M6 x 0.75, 8 ZND

2шт.

34

86622892

SHAFT

, Serial Range: -YDS036955

1шт.

34

84251628

SHAFT

, Start Serial: YDS036956

1шт.

35

86000021

BEARING LOCK NUT,M12, Cl 8

, Serial Range: -YDS036955

6шт.

36

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

, Serial Range: -YDS036955

6шт.

Use with Ref 34

1шт.

36

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

, Start Serial: YDS036956

6шт.

Use with Ref 34

1шт.
