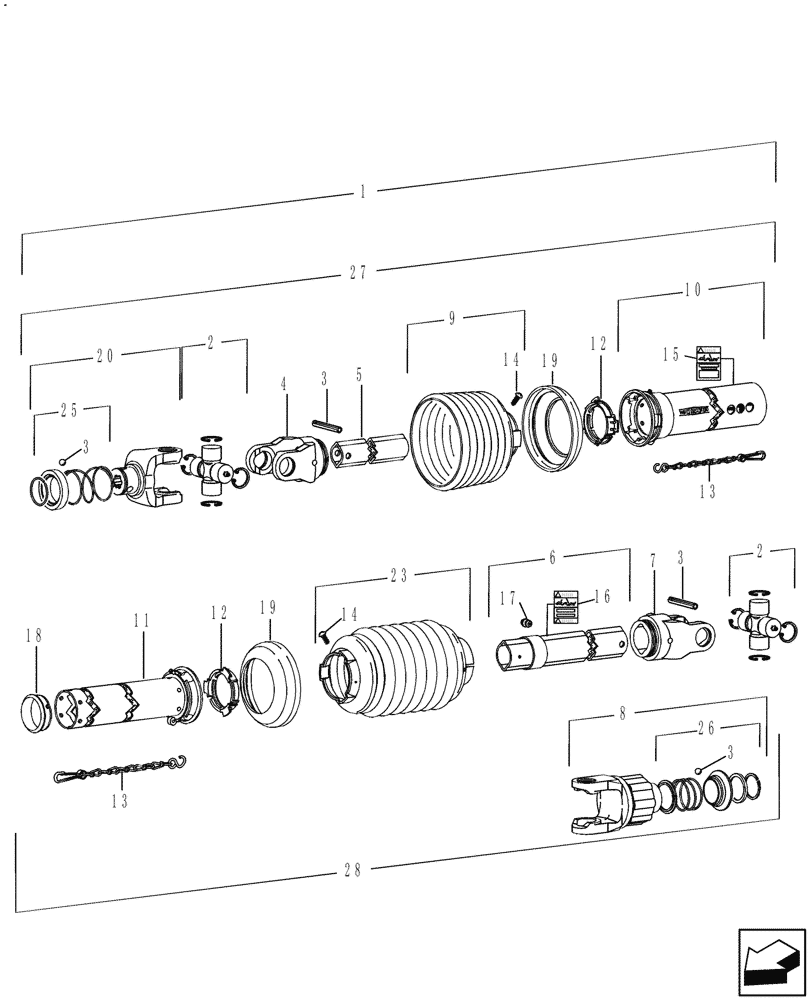

Запчасти Case IH 3016 (58.100.03) - POWER TAKE OFF, 15 HEADERS (58) - ATTACHMENTS/HEADERS

1

84141206

PTO

PTO, Long , 15' Headers, 540 RPM

1шт.

1

48053592

PTO

PTO, Long , 15' Headers, 1000 RPM

1шт.

2

84607620

SPIDER

2шт.

3

412690

PIN,10mm OD x 65mm L, Slotted

1шт.

4

727163

YOKE

1шт.

5

84287809

PTO SHAFT

Inner Profile

1шт.

6

84287810

PTO SHAFT

Outer Profile

1шт.

7

727164

YOKE

1шт.

8

84287814

PTO CLUTCH

Radial Pin, 540 RPM

1шт.

8

48053594

PTO CLUTCH

Friction Disc, 1000 RPM

1шт.

9

87024157

OUTER SHIELD

Cone 7 RIB

1шт.

10

84287815

OUTER SHIELD

Outer

1шт.

11

84287817

INNER SHIELD

Inner

1шт.

12

1281450C1

RING

2шт.

13

1281453C1

CHAIN (AG)

Restraint

2шт.

14

86597706

SCREW,10mm

2шт.

15

849471

DANGER DECAL

English

1шт.

15

849482

DANGER DECAL

French

1шт.

15

9801260

DANGER DECAL

Spanish

1шт.

16

849472

DANGER DECAL

English

1шт.

16

849483

DANGER DECAL

French

1шт.

16

9801256

DANGER DECAL

Spanish

1шт.

17

80750220

LUBE NIPPLE

1шт.

18

9803337

BEARING

1шт.

19

456679

COLLAR

2шт.

20

84287804

YOKE

1-3/8"- 6 Splines

1шт.

20

87049108

YOKE

1-3/8"- 21 Splines

1шт.

21

NS

NOT SERVICED

CE Decal

1шт.

22

86520062

DECAL

1шт.

23

84287819

SHIELD,291mm L

Cone Flex 10 RIB

1шт.

25

84292204

KIT

1шт.

26

84287822

REPAIR KIT

1шт.

27

84287830

PTO SHAFT

Input Half, 15', 540 RPM, 6 Splines

1шт.

27

47952129

PTO SHAFT

Input Half, 15', 1000 RPM, 21 Splines

1шт.

28

84287831

PTO SHAFT

Output Half, 15', 540 RPM, Hex

1шт.

28

48053593

PTO SHAFT

Output Half, 15', 1000 RPM, Hex

1шт.
