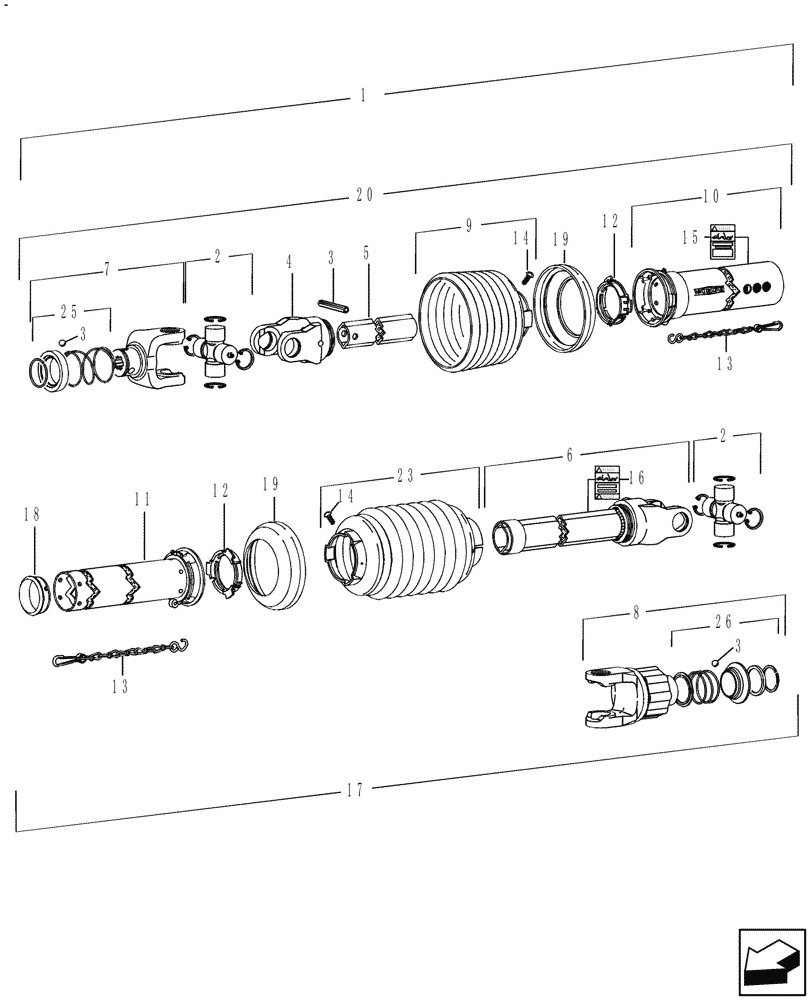

Запчасти Case IH 3016 (58.100.01) - POWER TAKE OFF, LONG, 12 HEADERS, USE WITH 5088, 6088, 7088 COMBINES (58) - ATTACHMENTS/HEADERS

1

0C

ORDER COMPONENTS

PTO, Long 12' Headers

1шт.

2

84607620

SPIDER

2шт.

3

412690

PIN,10mm OD x 65mm L, Slotted

1шт.

4

727163

YOKE

1шт.

5

84287813

PTO SHAFT

Inner Profile

1шт.

6

84287811

PTO SHAFT

Outer Profile

1шт.

7

84287804

YOKE

1-3/8"- 6 Splines

1шт.

7

87049108

YOKE

1-3/8"- 21 Splines, Serial Range: -YGS064536

1шт.

7

47900838

YOKE

1-3/8"- 21 Splines, Start Serial: YGS071001

1шт.

8

84287814

PTO CLUTCH

Radial Pin

1шт.

9

87024157

OUTER SHIELD

Cone 7 RIB, Serial Range: -YGS064536

1шт.

9

47952103

OUTER SHIELD

Cone 9 RIB, Start Serial: YGS071001

1шт.

10

84287821

INNER SHIELD

Inner Profile

1шт.

11

84287818

INNER SHIELD

Inner

1шт.

12

1281450C1

RING

, Serial Range: -YGS064536

2шт.

12

728164

RING

MY17, Start Serial: YGS071001

2шт.

13

1281453C1

CHAIN (AG)

Restraint

2шт.

14

86597706

SCREW,10mm

2шт.

15

849471

DANGER DECAL

English

1шт.

15

849482

DANGER DECAL

French

1шт.

15

9801260

DANGER DECAL

Spanish

1шт.

16

849472

DANGER DECAL

English

1шт.

16

849483

DANGER DECAL

French

1шт.

16

9801256

DANGER DECAL

Spanish

1шт.

17

84287828

PTO SHAFT

Output Half, 12'

1шт.

18

9803337

BEARING

1шт.

19

456679

COLLAR

2шт.

20

84287829

PTO SHAFT

Input Half, 12' Long, Serial Range: -YGS064536

1шт.

20

47950991

PTO SHAFT

Input Half, 12' Long, Start Serial: YGS071001

1шт.

21

NS

NOT SERVICED

CE Decal, Serial Range: -YGS064536

1шт.

21

47952119

DANGER DECAL

CE Decal, Start Serial: YGS071001

1шт.

22

86520062

DECAL

1шт.

23

84287819

SHIELD,291mm L

Cone Flex 10 RIB

1шт.

25

84292204

KIT

1шт.

26

84287822

REPAIR KIT

1шт.
