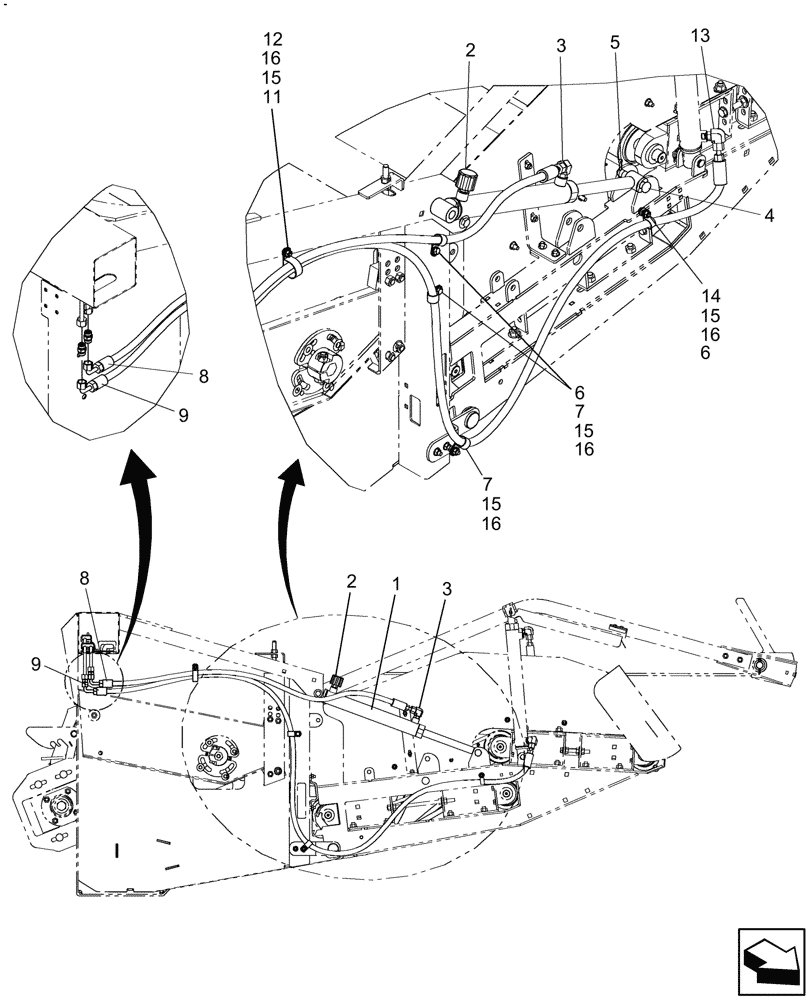

Запчасти Case IH 3016 (35.910.09) - HYDRAULIC FLOTATION, RH HOSES (35) - HYDRAULIC SYSTEMS

1

47582908

HYDRAULIC CYLINDER

Flotation

1шт.

Use Existing Hardware

1шт.

1

84162962R

REMAN-HYD CYLINDER

3016 PICKUP HEADER, Flotation, Use Existing Hardware (6/10-), Reman for New PN 47582908

1шт.

1

84162962C

CORE-HYD CYLINDER

Return Number

1шт.

2

84192870

BREATHER

1шт.

3

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

4

84292043

HEADED PIN,15.88mm OD x 82.55mm L

2шт.

5

733-5040

COTTER PIN,M5 x 40

2шт.

6

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

7

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

8

84148089

HYDRAULIC HOSE,9.53mm ID x 1250mm L, SAE 100R17

to Flotation Cylinders

1шт.

9

84148087

HYDRAULIC HOSE,9.53mm ID x 2375mm L, SAE 100R17

to Hold Down Cylinders

1шт.

10

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

11

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

12

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

13

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

1шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

15

43362

NUT,M8 x 1.25, Cl 10

3шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.
