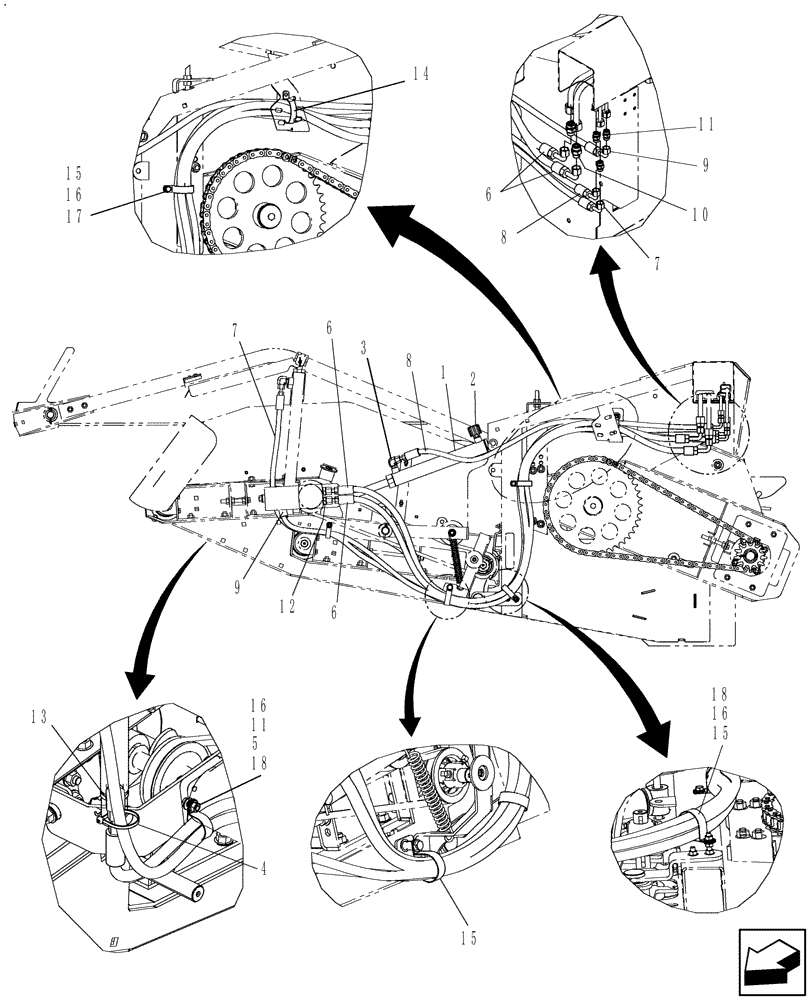

Запчасти Case IH 3016 (35.910.08) - HYDRAULIC FLOTATION, LH HOSES (35) - HYDRAULIC SYSTEMS

1

47582908

HYDRAULIC CYLINDER

1шт.

1

84162962R

REMAN-HYD CYLINDER

3016 PICKUP HEADER (6/10-), Reman for New PN 47582908

1шт.

1

84162962C

CORE-HYD CYLINDER

Return Number

1шт.

2

84192870

BREATHER

1шт.

3

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

1шт.

4

86566989

CABLE TIE,208mm L

CABLE STRAP

1шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

6

84148080

HYDRAULIC HOSE,12.7mm ID x 2155mm L, SAE 100R16

to Hydraulic Motor

2шт.

7

84148085

HYDRAULIC HOSE,9.53mm ID x 2760mm L, SAE 100R17

to Hold Down Lift Cylinders

1шт.

8

84148089

HYDRAULIC HOSE,9.53mm ID x 1250mm L, SAE 100R17

to Flotation Cylinders

1шт.

9

84148087

HYDRAULIC HOSE,9.53mm ID x 2375mm L, SAE 100R17

to Hold Down Lift Cylinders

1шт.

10

84431302

HYD CONNECTOR,1"-14 ORFS x 13/16"-16 ORFS

2шт.

11

515-22349

CLAMP,1 3/8", Insul, 5/16" Bolt

2шт.

12

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

2шт.

13

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

2шт.

14

87495305

CLAMP,65mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

Use Existing Hardware

1шт.

15

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

Use Existing Hardware

1шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

17

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

18

43362

NUT,M8 x 1.25, Cl 10

3шт.
