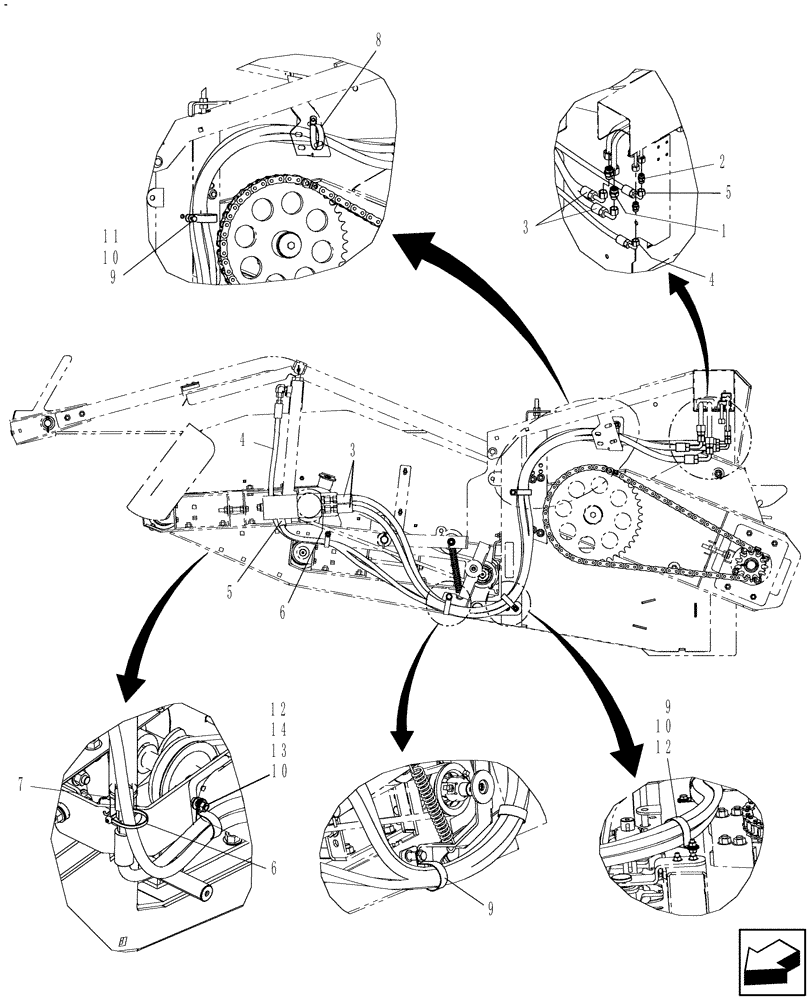

Запчасти Case IH 3016 (35.910.03) - MECHANICAL FLOTATION, LH HOSES (35) - HYDRAULIC SYSTEMS

1

84431302

HYD CONNECTOR,1"-14 ORFS x 13/16"-16 ORFS

2шт.

2

84431546

UNION,11/16"-16 ORFS

3шт.

3

84148080

HYDRAULIC HOSE,12.7mm ID x 2155mm L, SAE 100R16

to Hydraulic Motor

2шт.

4

84148085

HYDRAULIC HOSE,9.53mm ID x 2760mm L, SAE 100R17

to Hold Down Lift Cylinders

1шт.

5

84148087

HYDRAULIC HOSE,9.53mm ID x 2375mm L, SAE 100R17

to Hold Down Lift Cylinders

1шт.

6

86566989

CABLE TIE,208mm L

CABLE STRAP

1шт.

7

86580178

ELBOW,90 Deg, 11/16-16 ORFS x M12 x 1.5 ORB

1шт.

8

87495305

CLAMP,65mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

9

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

11

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

12

43362

NUT,M8 x 1.25, Cl 10

1шт.

13

22510700

HOSE CLAMP,15.86mm

1шт.

14

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.
