Запчасти Case IH 3016 (35.420.02) - WINDGUARD RAISE SLAVE HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

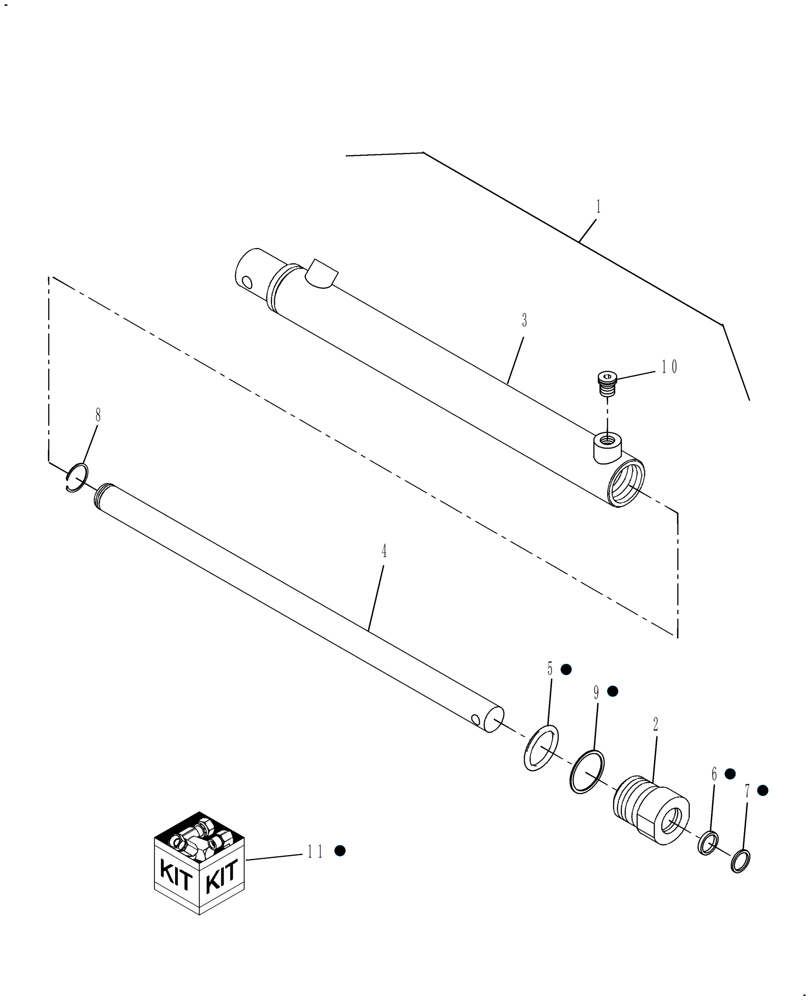

Схема запчастей Case IH 3016 - (35.420.02) - WINDGUARD RAISE SLAVE HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS
5
2
6
9
10
4
1
7
11
8
3

Артикул

Название

Примечание

Количество

1

87485412

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 400mm Stroke

Slave, Windguard Raise

1шт.

Manufacturer's Production Date Stamp - (ex. 06 2010 84246780 = M / Year / Part Number)

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Head

1шт.

3

NSS

NOT SOLD SEPARAT

Cylinder Tube

1шт.

4

NSS

NOT SOLD SEPARAT

Rod

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

NSS

NOT SOLD SEPARAT

Rod Seal

1шт.

7

NSS

NOT SOLD SEPARAT

Rod Wiper

1шт.

8

NSS

NOT SOLD SEPARAT

Retaining Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Backup Washer

1шт.

10

86598043

PLUG,M12 x 1.5 ORB

Steel Plug

1шт.

11

87485429

SEAL KIT

1шт.

Components are N.S.S.

1шт.

Выбрано товаров: 13
