Запчасти Case IH 3016 (35.420.01) - WINDGUARD RAISE MASTER HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

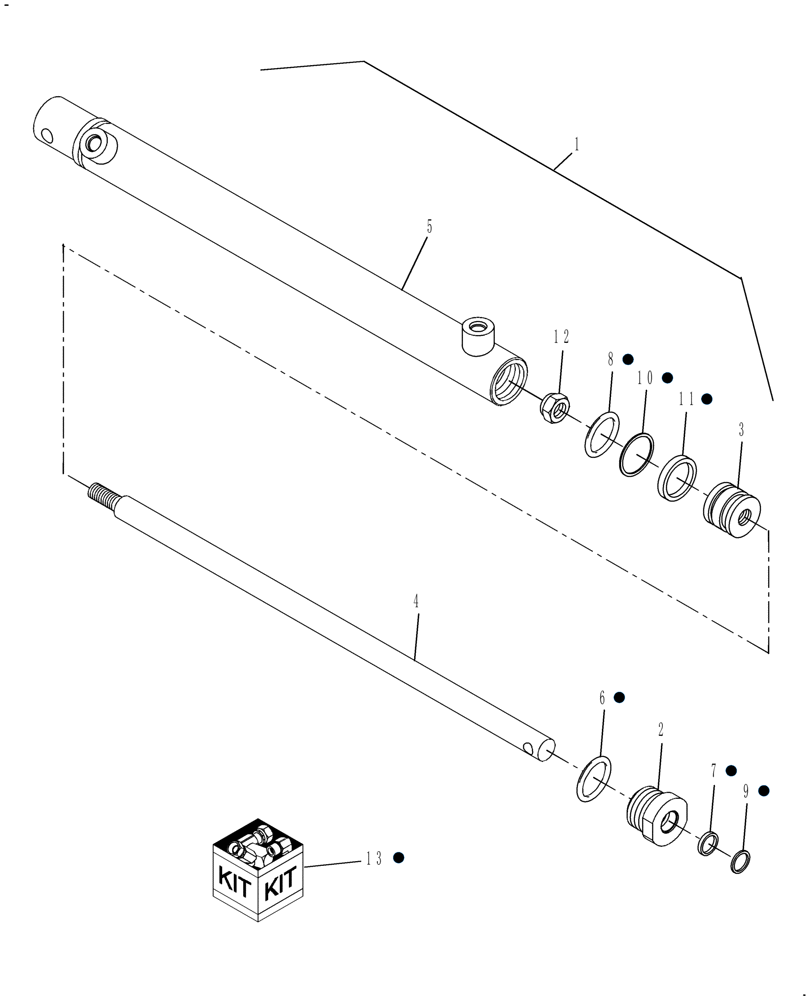

Схема запчастей Case IH 3016 - (35.420.01) - WINDGUARD RAISE MASTER HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS
10
8
13
9
7
3
5
2
6
1
12
11
4

Артикул

Название

Примечание

Количество

1

87485411

HYDRAULIC CYLINDER,Double Acting, 19.05mm Rod, 400mm Stroke

Master, Windguard Raise

1шт.

Manufacturer's Production Date Stamp - (ex. 06 2010 84246780 = M / Year / Part Number)

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Head

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

4

NSS

NOT SOLD SEPARAT

Rod

1шт.

5

NSS

NOT SOLD SEPARAT

Cylinder Tube

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

NSS

NOT SOLD SEPARAT

Rod Seal

1шт.

8

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Rod Wiper Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Piston Ring Seal

1шт.

11

NSS

NOT SOLD SEPARAT

Wear Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Lock Nut

1шт.

13

87746030

KIT

Seal

1шт.

Выбрано товаров: 14
