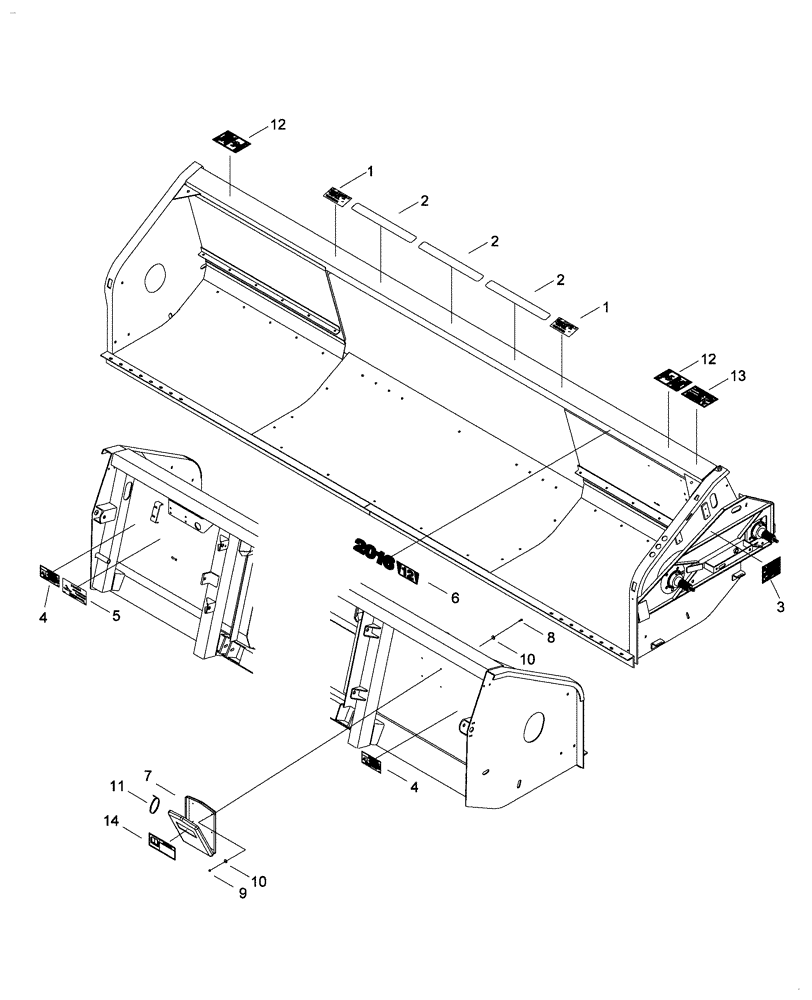

Запчасти Case IH 2016 (90.108.01) - DECALS & DOCUMENT HOLDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86611825

WARNING DECAL

Warning, Slippery Surface, 3-Panel

2шт.

1

87635830

DECAL

2-Panel Wordless

2шт.

2

87561573

ANTI-SKID STRIP

Traction

3шт.

3

87532571

DECAL

Warning, Shield Open, ANSI Verbal

1шт.

3

84011345

DECAL

Warning, Shield Open, ISO Non-Verbal

1шт.

4

86624774

DANGER DECAL

Danger, Header Crush, 3-Panel

2шт.

4

293849A1

DECAL

2-Panel Wordless

2шт.

5

9826789

DANGER DECAL,180mm x 90mm H

Danger, Rotating Drive Line, 3-Panel

1шт.

5

237175A1

DECAL

Danger, Keep Shields In Place, ISO Non-Verbal

1шт.

6

86983607

DECAL

2016, 12 Ft

1шт.

6

86983608

DECAL

2016, 14 Ft

1шт.

6

87433429

DECAL

2016, 16 Ft

1шт.

7

87372682

BOX

Document

1шт.

8

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

9

832-10406

NUT,M6 x 1, Cl 8

4шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

11

386969A1

CLAMP

Tie Strap, 8-1/2"

1шт.

12

87749381

DECAL

Danger, Auger Wrap, 3-Panel

2шт.

12

293849A1

DECAL

2-Panel Wordless

2шт.

13

86626958

WARNING DECAL

Rotating Drive, 3-Panel, English

1шт.

13

144373A1

WARNING DECAL

Do Not Open, Chain Entanglement, ISO Non-Verbal

1шт.

14

87753071

DECAL

Warning, Read OP Manual, 3-Panel

1шт.

14

374332A1

DECAL

2-Panel Wordless

1шт.
