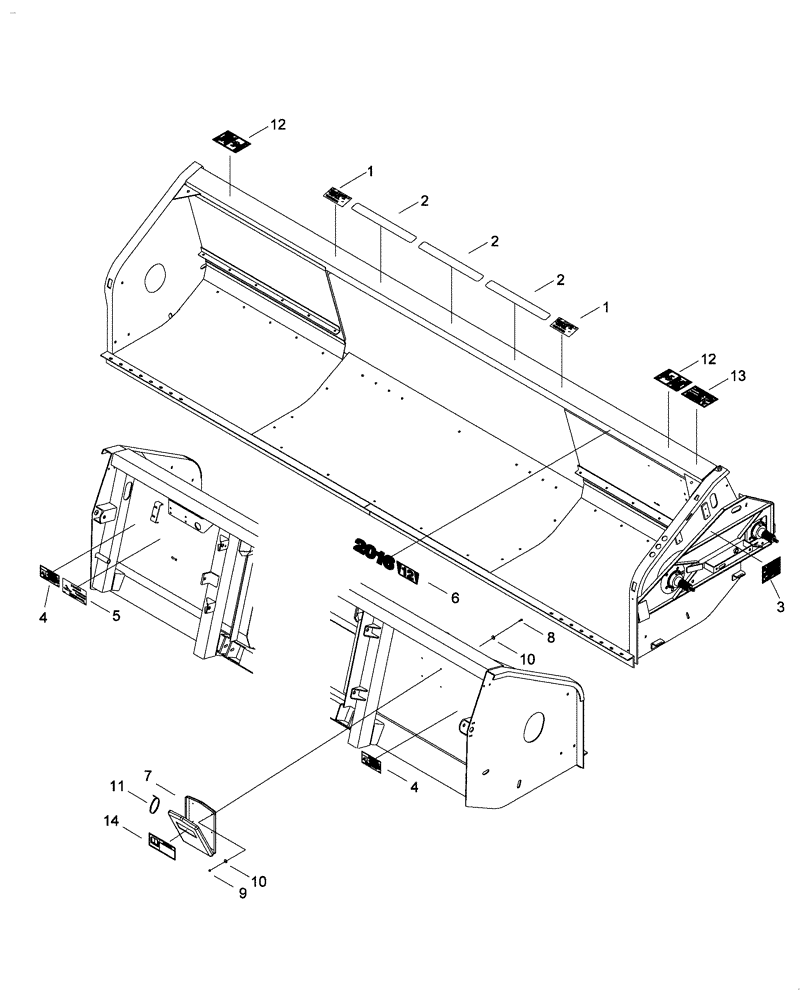

Запчасти Case IH 2016 (20.08) - DECALS & DOCUMENT HOLDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86611825

WARNING DECAL

Slippery Surface, 3-Panel

2шт.

1

87635830

DECAL

2-Panel Wordless

2шт.

2

87022092

DECAL

Traction

3шт.

3

87532571

DECAL

Warning, Read Op Man. 3-Panel

1шт.

3

84011345

DECAL

2-Panel Wordless

1шт.

4

86624774

DANGER DECAL

Header Crush, 3-Panel

2шт.

4

87027712

DECAL

2-Panel Wordless

2шт.

5

9826789

DANGER DECAL,180mm x 90mm H

Rotating Drive Line, 3-Panel

1шт.

5

86999254

DANGER DECAL

2-Panel Wordless

1шт.

7

87372682

BOX

Document

1шт.

8

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

9

412250

NUT,M8 x 1.25, Cl 8

4шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

11

386969A1

CLAMP

Tie Strap, 8-1/2"

1шт.

12

87749381

DECAL

Danger, Auger Wrap, 3-Panel

2шт.

12

293849A1

DECAL

2-Panel Wordless

2шт.

13

86626958

WARNING DECAL

Rotating Drive, 3-Panel

1шт.

13

84004734

WARNING DECAL

2-Panel Wordless

1шт.

14

87753071

DECAL

Warning, Read Op Man., 3-Panel

1шт.

14

374332A1

DECAL

2-Panel Wordless

1шт.
