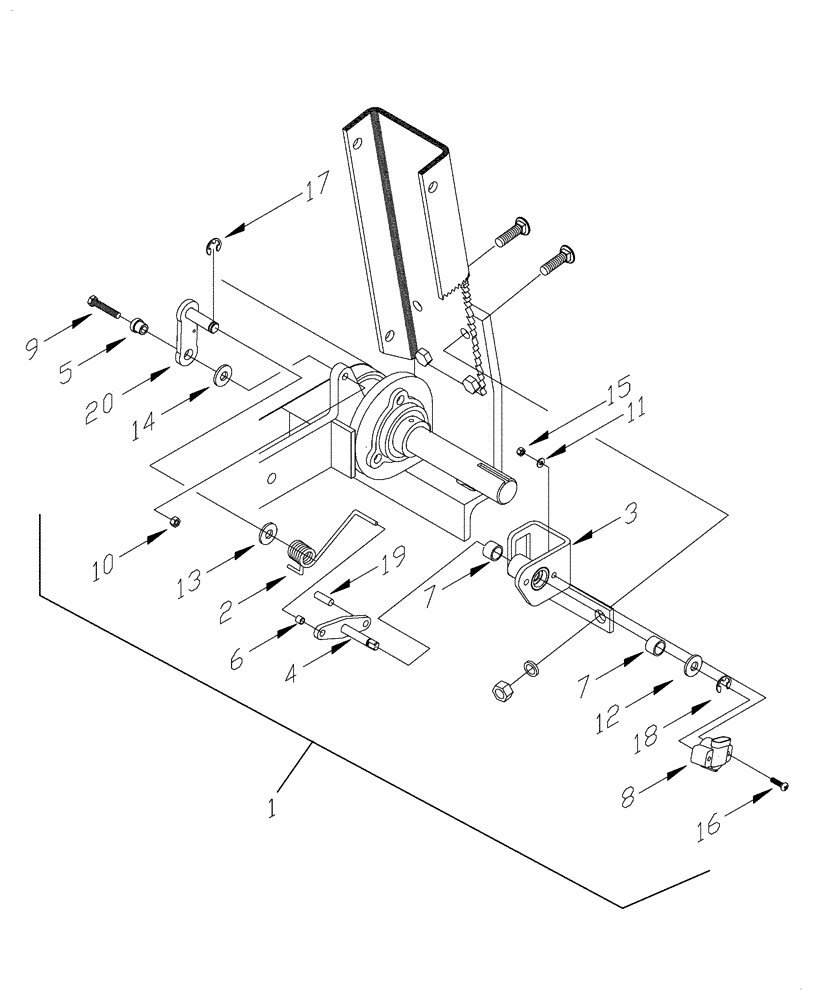

Запчасти Case IH 2016 (60.220.20) - ACTIVE HEADER HEIGHT CONTROL (60) - PRODUCT FEEDING

1

87408082

KIT

AHHC, AFX, Field Install

1шт.

2

86992042

TORSION SPRING

Height Control

1шт.

3

87433403

MOUNTING PARTS

Sensor

1шт.

4

87433405

ARM ASSY.

1шт.

5

86992098

BUSHING

5/16" ID x 1/2" OD x 3/8" Long

1шт.

6

86992099

BUSHING

1/8" ID x 1/4" OD x 1/4" Long

1шт.

7

432024A1

BUSHING

5/16" ID x 3/8" Long

2шт.

8

86616339

SENSOR,CCW

Height Control

1шт.

9

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

10

231-4145

NUT,5/16"-18, GB

1шт.

11

495-31022

WASHER,#10

2шт.

12

495-11034

WASHER,5/16", SAE

1шт.

13

495-11053

WASHER,1/2", SAE

1шт.

14

495-81018

WASHER,17/32" x 7/8" x .060"

1шт.

15

86632551

NUT,#10-24, GB

2шт.

16

463-11024

SCREW,Hex Hd, #10-24 x 1 1/2"

2шт.

17

100-1150

SNAP RING,#50, Ext

1шт.

18

103-3431

SNAP RING,#31, Ext, E-Type

1шт.

19

87433418

ROLL PIN

1/4" x 3/4"

1шт.

20

86992040

LEVER

Spring Mount

1шт.
