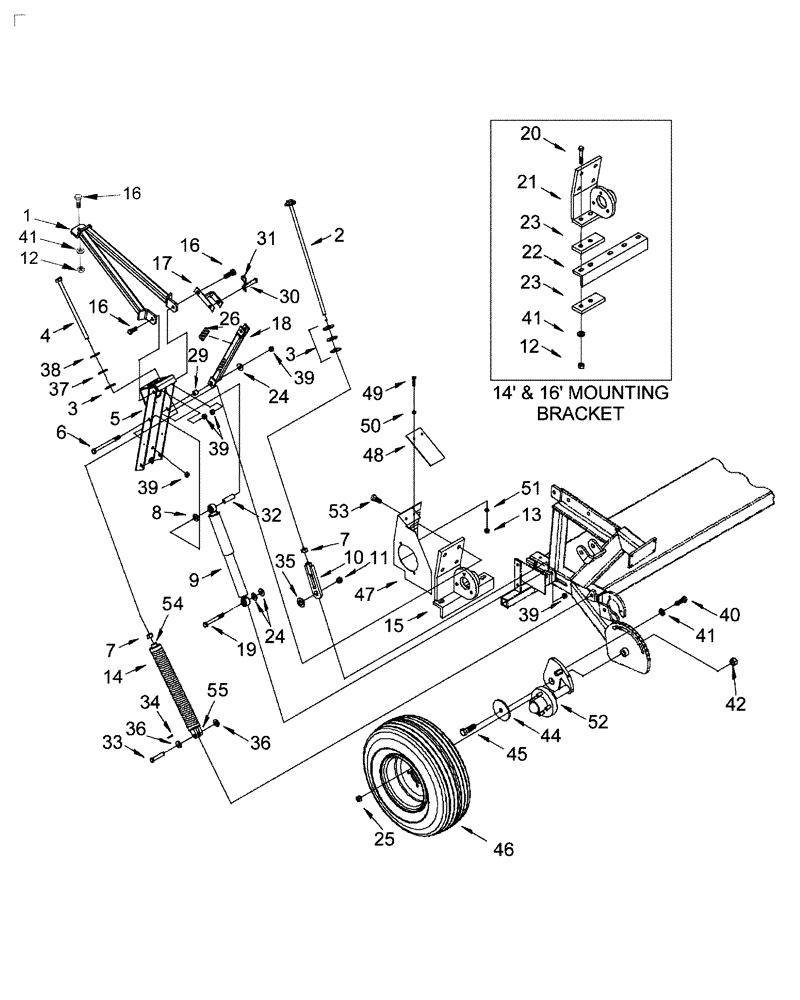

Запчасти Case IH 2016 (60.220.19) - MAIN FRAME MOUNTING ASSEMBLY, RAKE-UP (60) - PRODUCT FEEDING

1

374078A1

BRACE

12 Ft Right Hand, 14 & 16 Ft Left Hand

1шт.

1

374079A1

BRACE

12 Ft Left Hand, 14 & 16 Ft Right Hand

1шт.

2

373982A1

BOLT

Lifter Adjust

2шт.

3

373938A1

STOP

Rubber

8шт.

4

87303012

BOLT,Hex, 5/8" - 11 x 14", Gr 5

5/8" x 12;5

2шт.

5

87451998

CHANNEL

3/4" Bolt Hole

2шт.

6

9627857

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

2шт.

7

425-1010

NUT,5/8"-11, G5

4шт.

8

374626A1

WASHER

1-1/4" x 17/32" x 1/4"

4шт.

9

374171A1

SHOCK ABSORBER

2шт.

10

87532555

BRACKET

Lifter

2шт.

11

373940A1

BUSHING

Lifter Bracket

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

6шт.

13

425-104

NUT,1/4"-20, Cl 5

4шт.

14

87635823

SPRING

2шт.

15

87635733

BRACKET

Left Hand [On Cutter Bar], 12 Ft

1шт.

15

87635734

BRACKET

Right Hand [On Cutter Bar], 12 Ft

1шт.

16

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

17

373907A1

BRACE

Stiff Arm Clevis

2шт.

18

87452011

BRACE

Left Hand

1шт.

18

87452013

BRACE

Right Hand

1шт.

19

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

2шт.

20

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

4шт.

21

87372143

BRACKET

Left Hand [Below Cutter Bar], 14 & 16 Ft

1шт.

21

87372144

BRACKET

Right Hand [Below Cutter Bar], 14 & 16 Ft

1шт.

22

87642400

ANGLE

Left Hand [Below Cutter Bar]

1шт.

22

87642412

ANGLE

Right Hand [Below Cutter Bar]

1шт.

23

413630A1

SHIM

Mounting Bracket [Below Cutter Bar]

4шт.

24

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

2шт.

25

374570A1

WHEEL NUT

Wheel, 1/2" UNF

8шт.

26

87452006

DECAL

Notification, (Yellow Bars)

8шт.

29

373963A1

BUSHING

Stiff Arm

2шт.

30

87532621

PIN

1/2" x 2"

2шт.

31

87532622

PIN

Grip Clip, 1/8" x 2-9/16"

2шт.

32

87408990

SPACER

Shock Mount

2шт.

33

87532621

PIN

1/2" x 2"

2шт.

34

432-828

COTTER PIN,1/8" x 1 3/4"

2шт.

35

87366

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

2шт.

36

495-11053

WASHER,1/2", SAE

4шт.

37

495-21069

WASHER,5/8"

2шт.

38

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

2шт.

39

231-5348

FLANGE NUT,Flg, 1/2"-13

14шт.

40

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

41

87532623

CONE WASHER

Lock, 12mm

8шт.

42

280375

NUT,3/4"-10, GC

2шт.

44

87642414

PLATE

Retainer, Wheel

2шт.

45

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

2шт.

46

NSS

NOT SOLD SEPARAT

WHEEL ASSY,Standard Duty, See Figure 44.100.01

2шт.

47

376879A1

GUARD

Belt, Rear, Right Hand Drive

1шт.

48

376880A1

FLAP

Rear Belt Guard

1шт.

49

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

50

495-31031

WASHER,0.31" ID x 0.88" OD x 0.07" Thk

2шт.

51

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

52

87372146

HUB

Left Hand

1шт.

52

87372148

HUB

Right Hand

1шт.

53

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

8шт.
