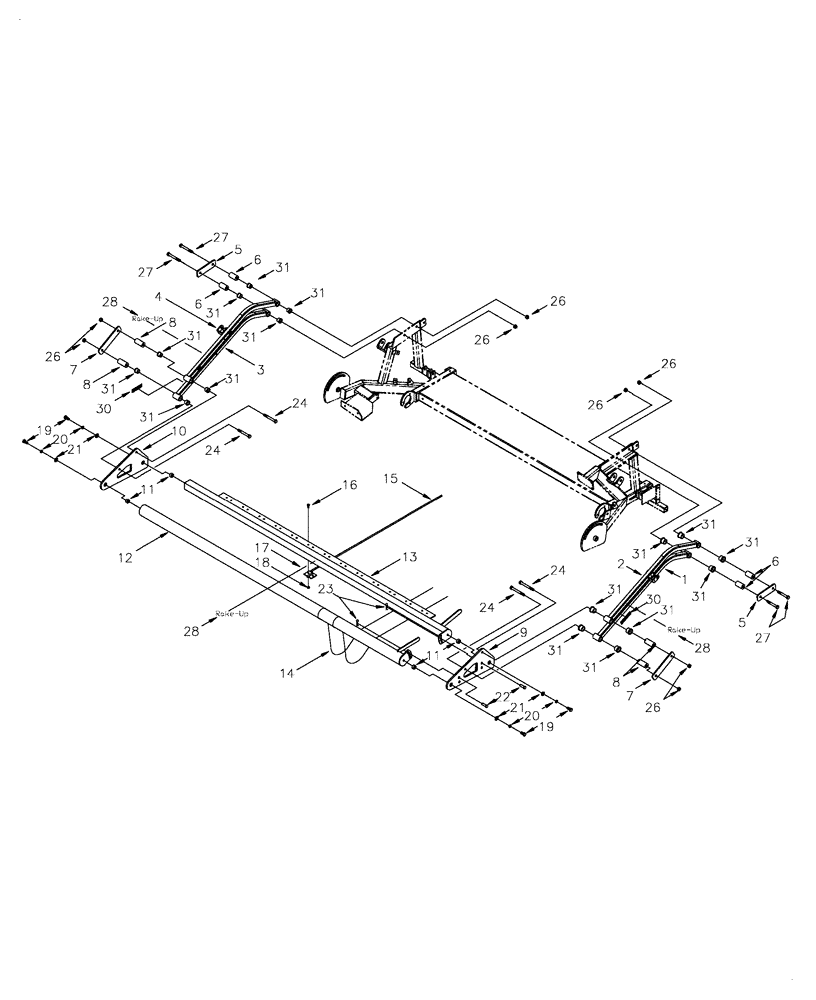

Запчасти Case IH 2016 (60.220.13) - HOLDDOWN ASSY, RAKE-UP (60) - PRODUCT FEEDING

1

87494145

ARM ASSY.

Lower Left Hand, Includes: Verbal ANSI Decal

1шт.

1

87735716

ARM ASSY.

Lower Left Hand, Includes: Non-Verbal ISO Decal

1шт.

2

87685329

ARM ASSY.

Upper, Left Hand, No Decals

1шт.

3

87494146

ARM ASSY.

Lower, Right Hand, Includes: Verbal ANSI Decal

1шт.

3

87735717

ARM ASSY.

Lower Right Hand, Includes: Non-Verbal ISO Decal

1шт.

4

87685330

ARM ASSY.

Upper, Right Hand, No Decals

1шт.

5

373953A1

PLATE

Rear

2шт.

6

87372162

BUSHING

Short

4шт.

7

373954A1

PLATE

Front

2шт.

8

87372163

BUSHING

Long

4шт.

9

87372165

PLATE

Adjusting Side

1шт.

10

373966A1

PLATE

Side

1шт.

11

373941A1

BUSHING

4шт.

12

87372154

TUBE,3619.5 mm L

Spring Wire, 12 Ft

1шт.

12

87722962

TUBE,4102.1 mm L

Spring Wire, 14 Ft

1шт.

12

87372155

TUBE,4584.7 mm L

Spring Wire, 16 Ft

1шт.

13

87494144

ROD ASSY.

Fiber Rod, 12 Ft, With No Decal

1шт.

13

87372158

TUBE,4102 mm L

Fiber Rod, 14 Ft, With No Decal

1шт.

13

87372159

TUBE,4585 mm L

Fiber Rod, 16 Ft, With No Decal

1шт.

14

373949A1

WIRE

WIRE 12 Ft

11шт.

14

373949A1

WIRE

WIRE 14 Ft

13шт.

14

373949A1

WIRE

WIRE 16 Ft

14шт.

15

374172A1

ROD

12 Ft, 3/8" x 48"

21шт.

15

374172A1

ROD

14 Ft, 3/8" x 48"

24шт.

15

374172A1

ROD

16 Ft, 3/8" x 48"

27шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12 Ft

42шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14 Ft

48шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

16 Ft

54шт.

17

87642415

CLIP

12 Ft

21шт.

17

87642415

CLIP

14 Ft

24шт.

17

87642415

CLIP

16 Ft

27шт.

18

483303R1

LOCK NUT

Nut Lock, 5/16" UNC, 12 Ft

42шт.

18

483303R1

LOCK NUT

Nut Lock, 5/16" UNC, 14 Ft

48шт.

18

483303R1

LOCK NUT

Nut Lock, 5/16" UNC, 16 Ft

54шт.

19

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

20

87532623

CONE WASHER

Conical, M12

4шт.

22

127-210

CLEVIS PIN,1/2" x 1.530"

2шт.

23

591107R1

COTTER PIN

1/8" x 2-9/16"

2шт.

24

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

4шт.

26

231-4148

NUT,1/2"-13, GB

8шт.

27

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

4шт.

28

436099A1

DECAL

Rake-Up, 1-1/8" Silver

2шт.

30

87749382

DECAL

Warning, Safety Lock, Includes: Verbal ANSI Decal

2шт.

30

87735715

DECAL

Warning, Safety Lock, Includes: Non-Verbal ISO Decal

2шт.

31

87372164

BUSHING,25.96mm ID x 32mm OD x 25.4mm L

16шт.
