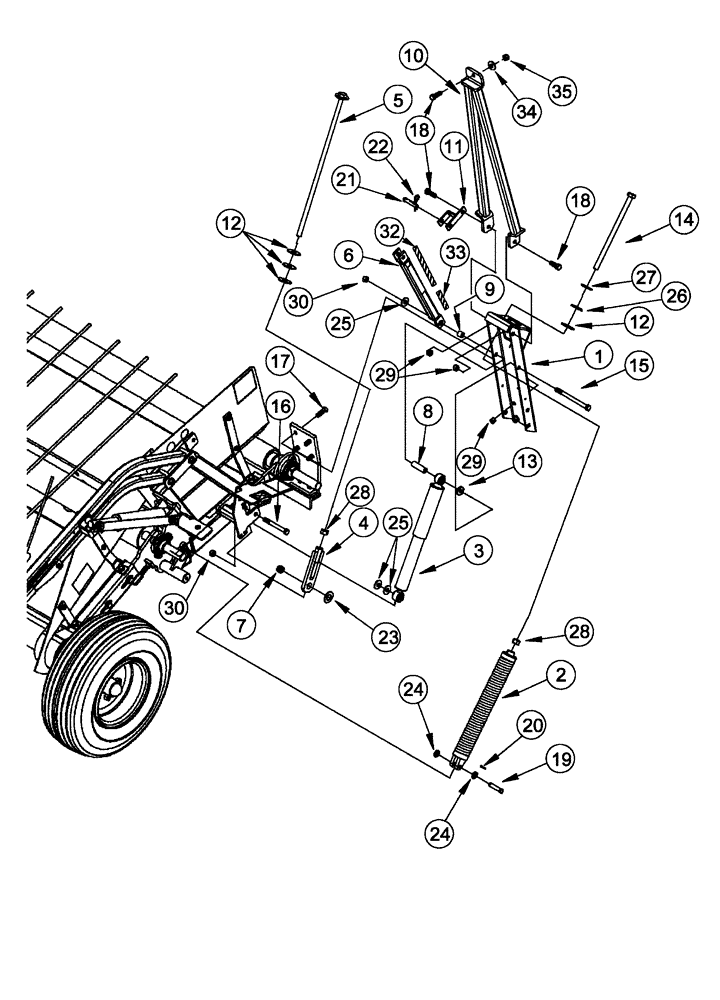

Запчасти Case IH 2016 (60.220.10) - SUSPENSION ASSEMBLY, SWATHMASTER (60) - PRODUCT FEEDING

1

87451998

CHANNEL

3/4 Bolt Holes

2шт.

2

87635823

SPRING

Plugs - order separate (Top plug p/n 87635742. Bottom plug p/n 87635743)

2шт.

3

374171A1

SHOCK ABSORBER

2шт.

4

87532555

BRACKET

Lifter

2шт.

5

373982A1

BOLT

Lifter Adjuster

2шт.

6

87452001

BRACE

Storage, SM Left Hand

1шт.

6

87452002

BRACE

Storage, SM Right Hand

1шт.

7

373940A1

BUSHING

Lifter Bracket

2шт.

8

87408990

SPACER

Shock Mount

2шт.

9

373963A1

BUSHING

Stiff Arm

2шт.

10

374079A1

BRACE

12 Ft Left Hand, 14 & 16 Ft Right Hand

1шт.

10

374078A1

BRACE

12 Ft Right Hand, 14 & 16 Ft Left Hand

1шт.

11

373907A1

BRACE

Clevis, Stiff Arm Header Mounting

2шт.

12

373938A1

STOP

Rubber

8шт.

13

374626A1

WASHER

1-1/4" x 17/32" x 1/4"

2шт.

14

87303012

BOLT,Hex, 5/8" - 11 x 14", Gr 5

5/8"

2шт.

15

9627857

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

2шт.

16

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

2шт.

17

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

18

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

19

27-8231

CLEVIS PIN,1/2" x 2 5/16"

2шт.

20

87673

COTTER PIN,1/8" x 1 3/4"

2шт.

21

87532621

PIN

1/2" x 2"

2шт.

22

87532622

PIN

1/8" x 2-9/16"

2шт.

23

87366

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

2шт.

24

495-11053

WASHER,1/2", SAE

4шт.

25

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

6шт.

26

495-21069

WASHER,5/8"

2шт.

27

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

2шт.

28

425-1010

NUT,5/8"-11, G5

4шт.

29

231-5348

FLANGE NUT,Flg, 1/2"-13

14шт.

30

231-5348

FLANGE NUT,Flg, 1/2"-13

4шт.

32

87452007

DECAL

Notification, Yellow Bars, Large

4шт.

33

87452006

DECAL

Notification, Yellow Bars,Small

4шт.

34

87532623

CONE WASHER

2шт.

35

425-108

NUT,1/2" - 13, Gr 5

2шт.
