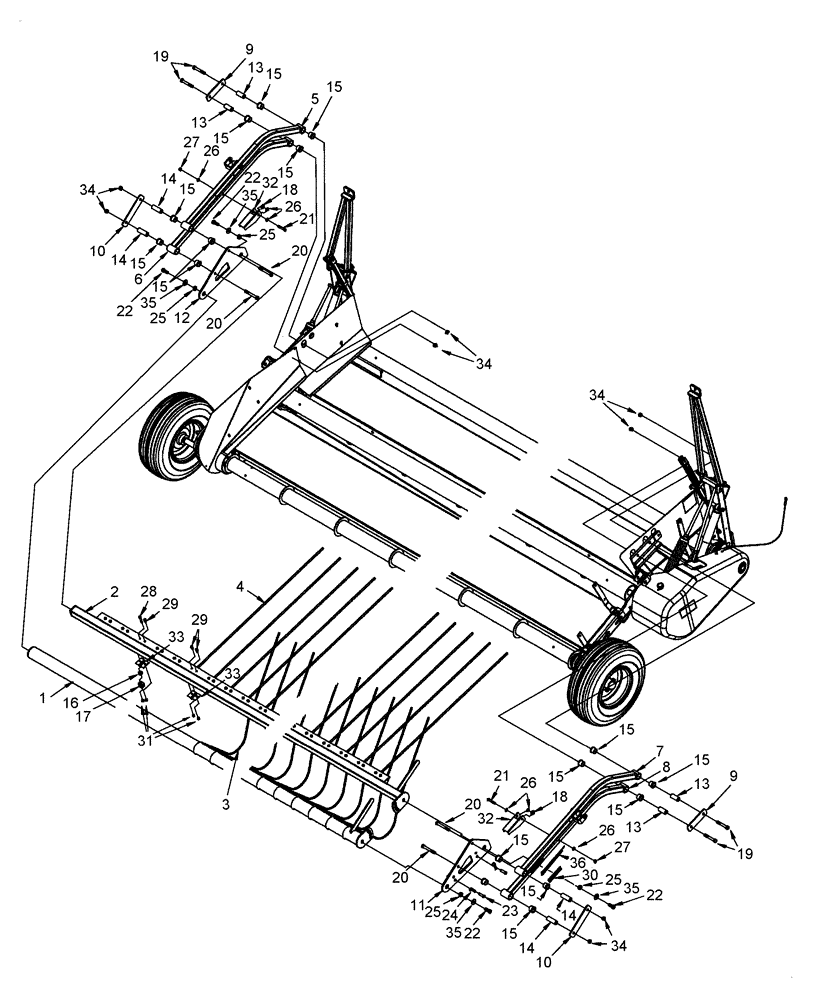

Запчасти Case IH 2016 (60.220.07) - HOLDDOWN ASSY, SWATHMASTER (60) - PRODUCT FEEDING

1

87476904

TUBE,3485 mm L

Wire Tube, 12 Ft

1шт.

1

87372565

TUBE,3883 mm L

Wire Tube, 14 Ft

1шт.

1

87476905

TUBE,4365.6 mm L

Wire Tube, 16 Ft

1шт.

2

87372566

SPRING

Fiber Glass Rod, 12 Ft

1шт.

2

87372569

TUBE,3889 mm L

Fiber Glass Rod, 14 Ft

1шт.

2

87372571

TUBE,4366 mm L

Fiber Glass Rod, 16 Ft

1шт.

3

373949A1

WIRE

WIRE 12 Ft

11шт.

3

373949A1

WIRE

WIRE 14 Ft

12шт.

3

373949A1

WIRE

WIRE 16 Ft

14шт.

4

374172A1

ROD

Fiberglass, 3/8" x 48", 12 Ft

21шт.

4

374172A1

ROD

Fiberglass, 3/8" x 48", 14 Ft

23шт.

4

374172A1

ROD

Fiberglass, 3/8" x 48", 16 Ft

27шт.

5

87685330

ARM ASSY.

Upper, Right Hand-No Decal

1шт.

6

87494146

ARM ASSY.

Lower, Right Hand, Includes: Verbal ANSI Decal

1шт.

6

87735717

ARM ASSY.

Lower Right Hand, Includes: Non-Verbal ISO Decal

1шт.

7

87685329

ARM ASSY.

Upper, Left Hand-No Decal

1шт.

8

87494145

ARM ASSY.

Lower Left Hand, Includes: Verbal ANSI Decal

1шт.

8

87735716

ARM ASSY.

Lower Left Hand, Includes: Non-Verbal ISO Decal

1шт.

9

373953A1

PLATE

Rear

2шт.

10

373954A1

PLATE

Front

2шт.

11

87372165

PLATE

Adjusting Side

1шт.

12

373966A1

PLATE

Side

1шт.

13

87372162

BUSHING

Short

4шт.

14

87372163

BUSHING

Long

4шт.

15

87372164

BUSHING,25.96mm ID x 32mm OD x 25.4mm L

Flange

16шт.

16

87372633

SPACER

5шт.

17

413632A1

CLAMP

3/8" Pipe Clamp, Pair, Drilled

5шт.

18

374328A1

WASHER

Neoprene, 3/8" x 1.1" x 1/16"

2шт.

19

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

4шт.

20

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

4шт.

21

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

23

127-210

CLEVIS PIN,1/2" x 1.530"

2шт.

24

591107R1

COTTER PIN

1/8" x 2-9/16"

2шт.

25

373941A1

BUSHING

4шт.

26

495-21044

WASHER,3/8"

6шт.

27

231-4246

LOCK NUT,3/8"-16, GB

2шт.

28

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5шт.

29

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12 Ft

37шт.

29

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14 Ft

41шт.

29

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

16 Ft

49шт.

30

87749382

DECAL

Warning, Safety Lock, Includes: Verbal ANSI Decal

2шт.

30

87735715

DECAL

Warning, Safety Lock, Includes: Non-Verbal ISO Decal

2шт.

31

483303R1

LOCK NUT

5/16", 12 Ft

42шт.

31

483303R1

LOCK NUT

5/16", 14 Ft

46шт.

31

483303R1

LOCK NUT

5/16", 16 Ft

54шт.

32

448679A1

LOCK

Safe, Hold Down

2шт.

33

87642415

CLIP

12 Ft

21шт.

33

87642415

CLIP

14 Ft

23шт.

33

87642415

CLIP

16 Ft

27шт.

34

231-4148

NUT,1/2"-13, GB

8шт.

35

87532623

CONE WASHER

Conical, M12

4шт.

36

436098A1

DECAL

Swathmaster, Silver, 1-1/8"

2шт.
