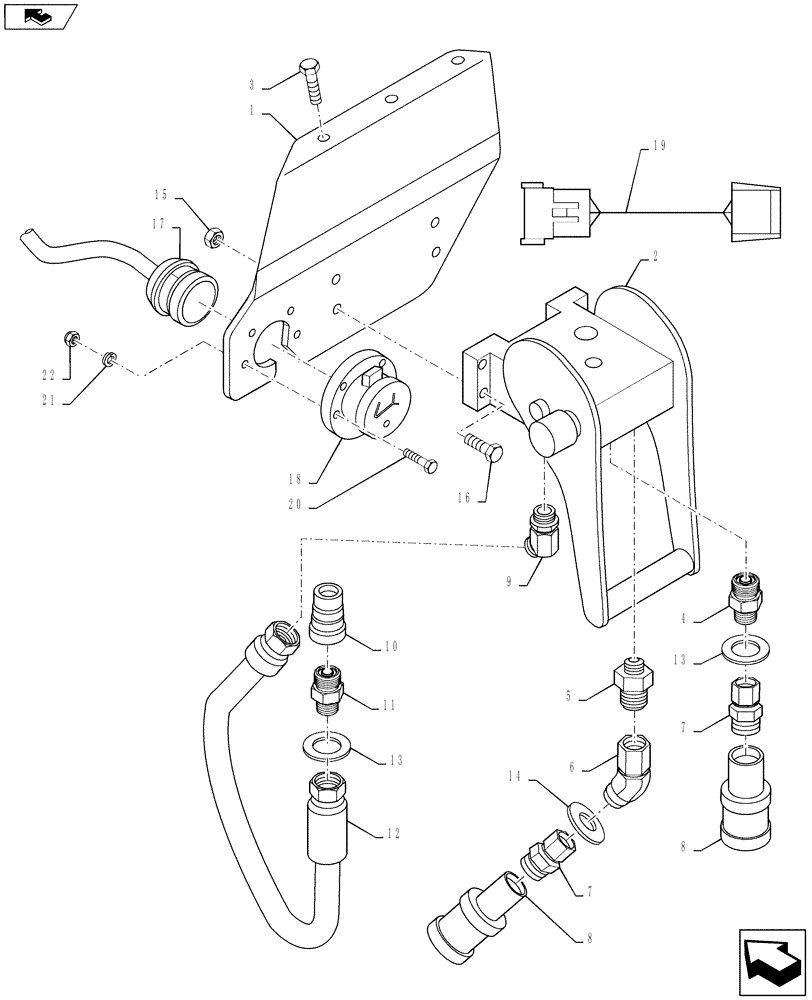

Запчасти Case IH 2016 (60.220.05) - COMBINE ADAPTER (60) - PRODUCT FEEDING

1

87735704

BRACKET

1шт.

2

87400249

COUPLING

Quick Release

1шт.

3

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

4

21747

HEAD ASSY.

1шт.

5

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

1шт.

6

86512960

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

7

386376A1

ADAPTER

2шт.

8

1282338C91

COUPLING, QUICK, FEM

2шт.

9

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

10

1272399C2

QUICK MALE COUPLING

1шт.

11

441788A1

ADAPTER

1шт.

12

87472320

HOSE ASSY.

1шт.

13

1345266C1

WASHER

Identification, White

2шт.

14

1541804C1

WASHER

Identification, Black

1шт.

15

483303R1

LOCK NUT

4шт.

16

87020811

HEX SOC SCREW,5/16" - 18 x 1"

4шт.

17

87735705

WIRE HARNESS

1шт.

18

86606228

COVER

1шт.

19

87481577

WIRE HARNESS

Jumper

1шт.

20

84178100

SCREW,Truss, #10 - 24 x 1"

5шт.

21

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

5шт.

22

86632551

NUT,#10-24, GB

5шт.
