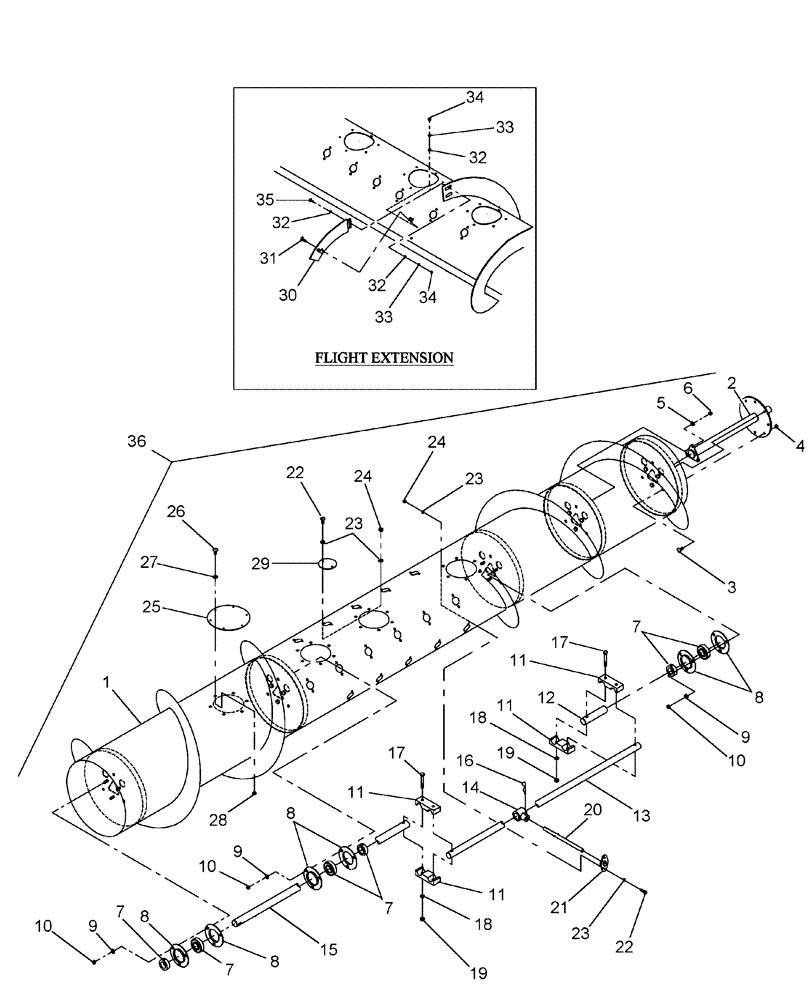

Запчасти Case IH 2016 (60.220.04) - AUGER (60) - PRODUCT FEEDING

1

NLS

NO LONGER SERVICED

12 & 14 Ft, Straight Pattern, See Figure Note

1шт.

BPIN CAB010350

1шт.

1

87532564

AUGER

12 & 14 Ft, V-Finger Pattern, Use for prior PIN units

1шт.

PIN CAB010350 and after

1шт.

1

NLS

NO LONGER SERVICED

16 Ft, Straight Pattern, See Figure Note

1шт.

BPIN CAB010350

1шт.

1

87532562

AUGER

16 Ft, V-Finger Pattern, Use for prior PIN units

1шт.

PIN CAB010350 and after

1шт.

2

86989913

SHAFT

Auger Drive

1шт.

3

413666A1

BOLT

HH, CL 10.9, M12 x 1.75 x 30

8шт.

4

832-44612

FLANGE NUT,M12 x 1.75, Flg, Cl 10

8шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

7

374130A1

BALL BEARING,50 mm ID

W/Collar, 1-3/8" Bore

3шт.

8

374132A1

HOUSING

Flanged, Pair

3шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

9шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

9шт.

11

374038A1

CLAMP

Finger Support

4шт.

12

374070A1

SHAFT

Auger Stub

1шт.

13

374060A1

SHAFT

Finger Support

1шт.

14

374178A1

HOLDER

Auger Finger

18шт.

15

440415A1

CRANKSHAFT

12 & 14 Ft

1шт.

15

87433443

CRANKSHAFT

16 Ft

1шт.

16

185309A1

HAIR PIN COTTER

Cotter, M78.6 x 4.6 Chamfered End

18шт.

17

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

4шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

20

374042A1

FINGER ASSY.,15.8mm OD x 270mm L

Auger, C/W Spring Pin

18шт.

21

374177A1

GUIDE

Auger Finger

18шт.

22

120100

BOLT,M6 x 20mm, Cl 8.8

44шт.

23

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

88шт.

24

832-10406

NUT,M6 x 1, Cl 8

44шт.

25

374061A1

GUARD

Hand Hole

5шт.

26

120100

BOLT,M6 x 20mm, Cl 8.8

44шт.

27

892-11006

LOCK WASHER,M6

30шт.

28

377776A1

NUT

Anchor, CL 6, M6 x 1

30шт.

29

440416A1

COVER

Finger Hole

4шт.

30

446296A1

EXTENSION

Auger Flight, Left Hand

1шт.

30

446298A1

EXTENSION

Auger Flight, Right Hand

1шт.

31

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

12шт.

32

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

24шт.

33

892-11008

LOCK WASHER,8mm ID

16шт.

34

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

16шт.

35

386987A1

HEX SOC SCREW,Btn Hd, M8 x 1.25 x 25mm, Cl 12.9

Hex Socket, Btn Hd, M8 x 1.25 x 25

4шт.

36

87433406

AUGER

Assembly, 22 Finger, 12 & 14 Ft

1шт.

BPIN CAB010350

1шт.

36

87433434

AUGER

Assembly, 22 Finger, 16 Ft

1шт.

BPIN CAB010350

1шт.

36

NS

NOT SERVICED

Assembly, 14 Ft

1шт.

PIN CAB010350 and after

1шт.

36

NS

NOT SERVICED

Assembly, 16 Ft

1шт.

PIN CAB010350 and after

1шт.
