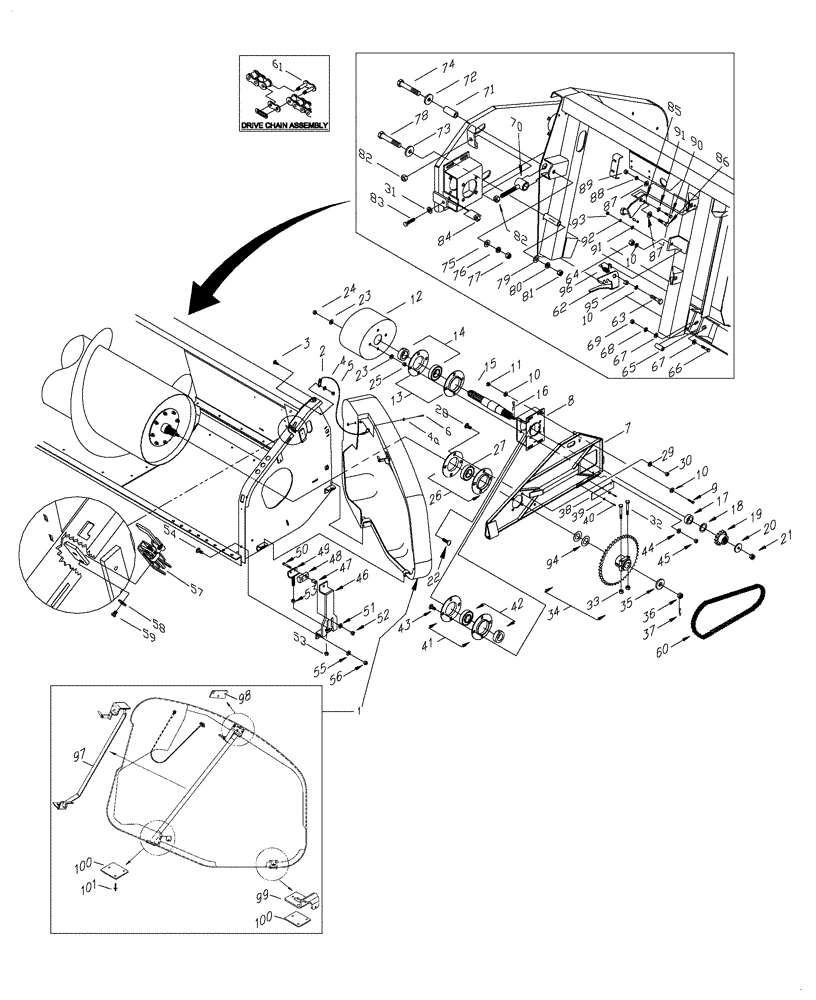

Запчасти Case IH 2016 (60.220.02) - AUGER DRIVE AND SUPPORT, LEFT HAND (60) - PRODUCT FEEDING

1

87635831

SHIELD

Inc. 2 to 6, 97 to 101, Was 86989919

1шт.

2

86989903

CABLE

Shield Anchor

1шт.

3

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

1шт.

4

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

1шт.

4a

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

6

151-570

RIVET,Pop, 1/4" x 3/4"

1шт.

7

87532566

SUPPORTING ARM

Auger, Left Hand, W/Decal, Was 86993454

1шт.

8

87675682

SUPPORT ASSY.

Drive Shaft

1шт.

9

811-12030

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 30mm, Cl 8.8

4шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

12

86989916

SHIELD

Clutch, Drilled

1шт.

13

374131A1

FLANGED BEARING

Flanged, Pair

1шт.

14

374129A1

BEARING ASSY

40mm Bore

1шт.

15

86989897

HEAD

Jack Shaft

1шт.

16

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

17

86989898

SPACER

Drive Shaft

1шт.

18

86989899

SHIM

Drive Sprocket

7шт.

19

87451990

SPROCKET

14 Tooth, Standard

1шт.

19

378416A1

SPROCKET ASSY.

17 Tooth

1шт.

19

374071A1

SPROCKET ASSY.

20 Tooth

1шт.

20

440386A1

WASHER

M17, Auger Pivot

1шт.

21

825-3416

SLOTTED NUT,M16 x 2, Cl 8

1шт.

22

811-12050

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 50mm, Cl 8.8

4шт.

23

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

24

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

25

829-1412

NUT,M12, Cl 10.9

4шт.

26

86989924

FLANGE

Pair

1шт.

27

86989921

BEARING

W/Collar

1шт.

28

811-12030

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 30mm, Cl 8.8

4шт.

29

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

30

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

31

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

32

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

33

832-44612

FLANGE NUT,M12 x 1.75, Flg, Cl 10

2шт.

34

87635801

SPROCKET

#60, No Longer W/Hardware

1шт.

35

86989915

THRUST WASHER

1шт.

36

425-1318

SLOTTED NUT,1 1/8"-12, G5

1шт.

37

432-1016

COTTER PIN,5/32" x 1"

1шт.

38

86989911

BAT

Flipper

1шт.

39

140014

WASHER,M5 x 10mm OD x 1mm Thk

3шт.

40

151-538

RIVET,Pop, 3/16" x .575"

3шт.

41

374131A1

FLANGED BEARING

Bearing, Pair

1шт.

42

374129A1

BEARING ASSY

40mm Bore

1шт.

43

811-12030

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 30mm, Cl 8.8

4шт.

44

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

45

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

46

86989892

GUIDE

Arm

1шт.

47

440413A1

BUSHING

2шт.

48

374068A1

STOP

Rubber

1шт.

49

374032A1

ADJUSTER

Lower Limit

1шт.

50

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

51

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

2шт.

52

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

53

829-1416

NUT,M16, Cl 10

2шт.

54

711-10030

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

3шт.

55

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

56

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

57

86989917

LOCK

Lever

1шт.

58

492-11025

LOCK WASHER,1/4"

1шт.

59

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

60

87532577

CHAIN

Auger Drive For 14 Tooth, #60H-USA, 101 Links

1шт.

60

87532576

CHAIN

Auger Drive For 17 & 20 Tooth, #60H-USA, 103 Links

1шт.

61

241-4316

CHAIN LINK

#60 Conn Link, Was 374145A1

1шт.

62

87749384

LATCH ASSY.

1шт.

63

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

64

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

65

86993446

BUSHING

Locking Hook

2шт.

66

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

2шт.

67

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

68

892-11012

LOCK WASHER,M12

2шт.

69

829-1412

NUT,M12, Cl 10.9

2шт.

70

440380A1

EYEBOLT

1шт.

71

440384A1

SPACER

Auger Pivot

1шт.

72

440386A1

WASHER

Auger Pivot

1шт.

73

440388A1

THRUST WASHER

1шт.

74

814-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 8.8

1шт.

75

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

76

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

77

829-1416

NUT,M16, Cl 10

1шт.

78

814-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 8.8

1шт.

79

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

80

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

81

829-1416

NUT,M16, Cl 10

1шт.

82

829-1416

NUT,M16, Cl 10

2шт.

83

614-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8, Full Thd

1шт.

84

829-4412

NUT,Thin, M12 x 1.75, Cl 5

1шт.

85

87749386

BRACKET

Drive Shaft

1шт.

86

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

1шт.

87

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

88

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

89

829-1416

NUT,M16, Cl 10

1шт.

90

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

91

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

92

892-11008

LOCK WASHER,8mm ID

1шт.

93

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

94

87415827

SHIM

2шт.

95

87433411

BUSHING

J-Series

1шт.

96

87434539

SPRING

Secondary Latch

1шт.

97

87749394

SUPPORT ASSY.

1шт.

98

87749390

PLATE ASSY.

1шт.

99

87749388

BRACKET

1шт.

100

87749392

PLATE ASSY.

2шт.

101

151-532

RIVET,Pop, 3/16" x .700"

Aluminum

9шт.
