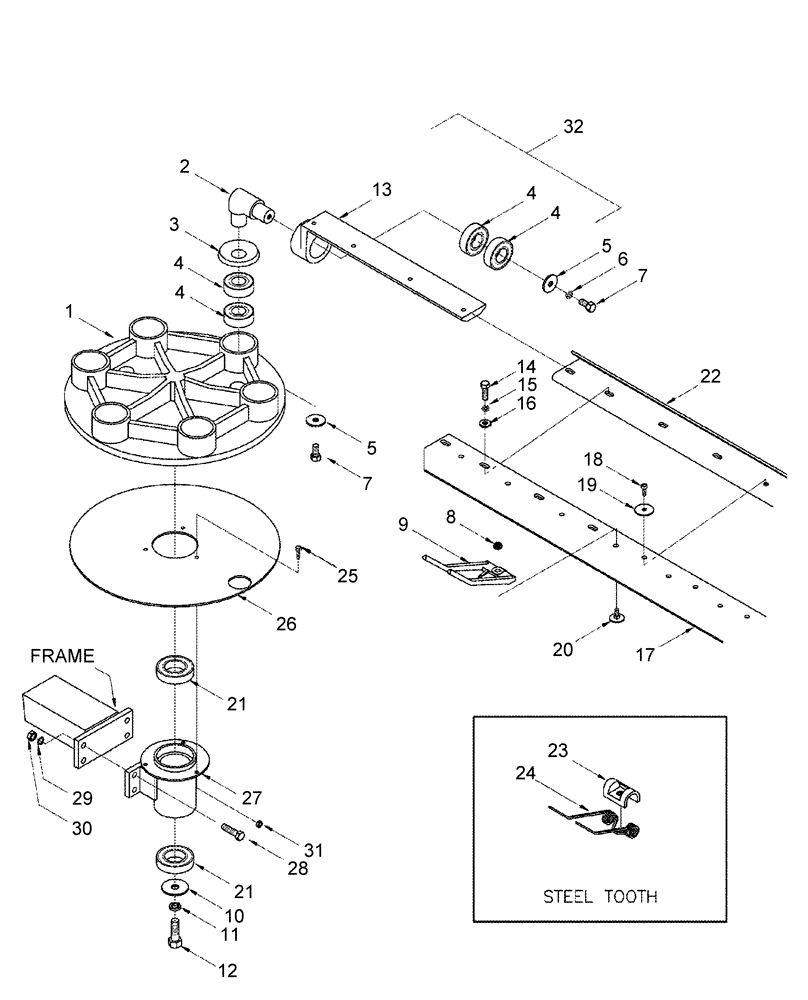

Запчасти Case IH 2016 (20.23) - ROTOR IDLER END, RAKE TYPE (60) - PRODUCT FEEDING

1

373985A1

ROTOR ASSY.

W/Idler Rotor And Bearing

1шт.

2

373868A1

ELBOW

6шт.

3

373934A1

CAP

Cup

6шт.

4

374103A1

BEARING

24шт.

5

86636827

WASHER,0.41" ID x 1.25" OD x 0.13" Thk

12шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

7

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

12шт.

8

9626558

FLANGE NUT,Flg, 1/4"-20

28/Bar, 12 Ft

168шт.

8

9626558

FLANGE NUT,Flg, 1/4"-20

32/Bar, 14 Ft

192шт.

8

9626558

FLANGE NUT,Flg, 1/4"-20

32/Bar, 16 Ft

216шт.

9

373945A1

TOOTH

12 Ft, 28/Bar

168шт.

9

373945A1

TOOTH

14 Ft, 32/Bar

192шт.

9

373945A1

TOOTH

16 Ft, 36/Bar

216шт.

10

374632A1

WASHER

2" x 17/32" x 3/16"

1шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

12

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

13

NSS

NOT SOLD SEPARAT

1шт.

14

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

48шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

48шт.

16

86625243

WASHER,0.44" ID x 1.38" OD x 0.08" Thk

48шт.

17

87635746

BELT

Finger Bar, 6" x 12 Ft, Grass Seed Special

6шт.

17

373947A1

BELT

Finger Bar, 4" x 12 Ft. Standard

6шт.

17

373948A1

BELT,101.6 mm W x 3870.3 mm L

Finger Bar, 4" x 14 Ft

6шт.

17

87448949

BELT

Finger Bar, 4" x 16 Ft

6шт.

18

377773A1

SCREW,Hex, #14 x 19mm

SM, #14 x 3/4", 21/Bar, 12 Ft

126шт.

18

377773A1

SCREW,Hex, #14 x 19mm

SM, #14 x 3/4", 25/Bar, 14 Ft

150шт.

18

377773A1

SCREW,Hex, #14 x 19mm

SM, #14 x 3/4", 21/Bar, 16 Ft

174шт.

18

86636810

SCREW,Pan, 5/16" - 8 x 3/4"

SM, 5/16" x 3/4" (Use if #14 Strips)

1шт.

19

374327A1

WASHER

1/4" x 1-1/4", 21/Bar, 12 Ft

126шт.

19

374327A1

WASHER

1/4" x 1-1/4", 25/Bar, 14 Ft

150шт.

19

374327A1

WASHER

1/4" x 1-1/4", 25/Bar, 16 Ft

174шт.

20

377386A1

BOLT

Elevator, 1/4"-20 x 3/4", 28/Bar, 12 Ft

168шт.

20

377386A1

BOLT

Elevator, 1/4"-20 x 3/4", 32/Bar, 14 Ft

192шт.

20

377386A1

BOLT

Elevator, 1/4"-20 x 3/4", 28/Bar, 16 Ft

216шт.

21

374105A1

BALL BEARING,35mm ID x 62mm OD x 14mm W

2шт.

22

373929A1

BAR

Finger, Cut, Coped, 12 Ft

6шт.

22

373930A1

BAR

Finger, Cut, Coped, 14 Ft

6шт.

22

87448948

BAR

Finger, Cut, Coped, 16 Ft

6шт.

23

374175A1

RETAINER

28/Bar, 12 Ft

168шт.

23

374175A1

RETAINER

32/Bar, 14 Ft

192шт.

23

374175A1

RETAINER

36/Bar, 16 Ft

216шт.

24

374174A1

TOOTH

28/Bar, 12 Ft

168шт.

24

374174A1

TOOTH

32/Bar, 14 Ft

192шт.

24

374174A1

TOOTH

36/Bar, 16 Ft

216шт.

25

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

3шт.

26

87642418

PLATE

Idler Rotor

1шт.

27

373943A1

HOUSING

Idler Rotor

1шт.

28

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

29

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

30

87039402

NUT,3/8"-16, GB

4шт.

31

9626558

FLANGE NUT,Flg, 1/4"-20

3шт.

32

374194A1

ARM

Finger, Idler, RH Side, W/Bearing

6шт.
