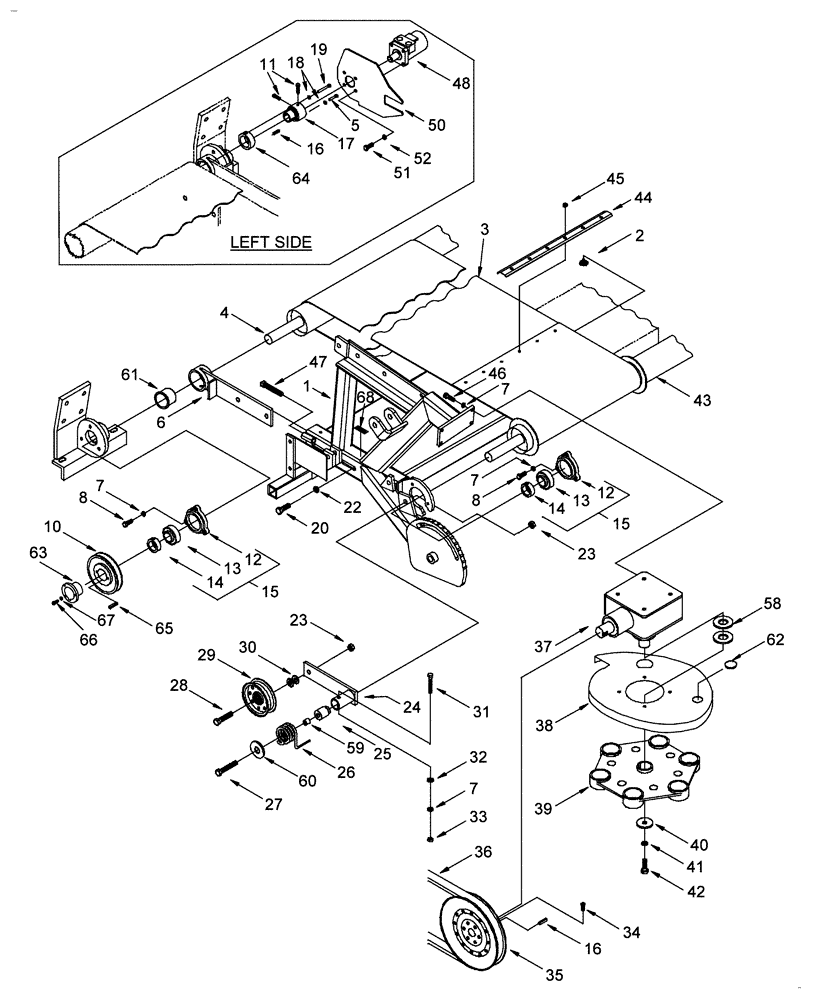

Запчасти Case IH 2016 (20.21[02]) - DRAPER AND GEAR BOX DRIVE, RAKE TYPE, PIN PMN003045 [PNP002010] AND AFTER (60) - PRODUCT FEEDING

1

87675660

FRAME ASSY

12 Ft, W/Decals

1шт.

1

87675661

FRAME ASSY

14 Ft, W/Decals

1шт.

1

87675662

FRAME ASSY

16 Ft, W/Decals

1шт.

2

377387A1

BOLT

1/4"-20 x 1/2". Qty Per Belt

6шт.

3

374098A1

BELT

12 Ft, Rear Draper, Bolt Together

7шт.

3

87635819

BELT

12 Ft, Full Width, Grass Seed Special

1шт.

3

374098A1

BELT

14 Ft, Rear Draper, Bolt Together

8шт.

3

374098A1

BELT

16 Ft, Rear Draper, Bolt Together

9шт.

4

87462693

ROLLER,3820.5mm L

12 Ft, Rear, Rear Frame, Standard

1шт.

4

87494141

ROLLER

12 Ft, Rear, Rear Frame, Grass Seed Special

1шт.

4

87462694

ROLLER,4302.5mm L

14 Ft, Rear, Rear Frame, Standard

1шт.

4

87462695

ROLLER

16 Ft, Rear, Rear Frame, Standard

1шт.

5

113-83

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5, Full Thd

2шт.

6

87372130

BRACKET

Carrier, Adjustable Tab

2шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

17шт.

8

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

10

373909A1

PULLEY

MB52L

1шт.

11

87616

SET SCREW,3/8" - 16 x 3/4"

Cup Point

1шт.

11

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

Cone Point

1шт.

12

NSS

NOT SOLD SEPARAT

4шт.

13

156011C92

BALL BEARING

W/Collar, 62mm OD

4шт.

14

NSS

NOT SOLD SEPARAT

Locking Collar

4шт.

15

373987A1

BEARING ASSY

4шт.

16

Q26

KEY,1/4" Sq x 1 1/4", Par

2шт.

17

87451996

COUPLING,25.43mm ID x 63.5mm OD x 73mm L

Motor, 4 Bolt Holes

1шт.

18

80682

LOCK WASHER,1/4"

4шт.

19

87535228

BOLT

2шт.

20

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

22

87532623

CONE WASHER

4шт.

23

9636698

NUT,1/2"-13, GB

2шт.

24

373905A1

ARM

Belt Tightener

1шт.

25

87372631

BUSHING

1шт.

26

374134A1

TIGHTENER

1шт.

27

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

28

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

29

87635814

PULLEY,102mm OD

1шт.

30

86636809

WASHER

2шт.

31

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

32

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

33

9628503

NUT,3/8"-16, G5

2шт.

34

87616

SET SCREW,3/8" - 16 x 3/4"

1шт.

35

373912A1

PULLEY

B-10 Pulley

1шт.

36

374100A1

V-BELT

B-92

1шт.

37

See Figure 20.24

1шт.

38

373867A1

PLATE

Scroll

1шт.

39

See Figure 20.22

1шт.

40

374632A1

WASHER

1шт.

41

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

42

373979A1

BOLT

1/2"-13 x 1-1/2", Drilled

1шт.

43

87462696

ROLLER

Front Rear Frame, 12 Ft, Standard

1шт.

43

87462698

ROLLER

Front Rear Frame, 12 Ft, Grass Seed Special

1шт.

43

87462697

ROLLER

Front Rear Frame, 14 Ft

1шт.

43

87462698

ROLLER

Front Rear Frame, 16 Ft

1шт.

44

373946A1

PROTECTOR

Edge, Qty 1/Belt

1шт.

45

9626558

FLANGE NUT,Flg, 1/4"-20

Qty 6/Belt

1шт.

46

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

47

87759335

SET SCREW,Sq Hd, 1/2" - 13 x 3"

2шт.

48

87423608

MOTOR

Orbit, 74cc

1шт.

87423616

SEAL KIT

Kit, All Seals Orbit Motor

1шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Motor Shaft

1шт.

50

87642417

ARM

Torque

1шт.

51

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

52

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

58

448681A1

BUSHING

1-7/8" OD x 1-3/8" ID x 18 Ga B, Stamped 0

2шт.

58

448681A1

BUSHING

1-7/8" OD x 1-3/8" ID x 18 Ga B, Stamped 50

3шт.

58

448681A1

BUSHING

1-7/8" OD x 1-3/8" ID x 18 Ga B, Stamped 100

4шт.

58

448681A1

BUSHING

1-7/8" OD x 1-3/8" ID x 18 Ga B, Stamped 150

5шт.

58

448681A1

BUSHING

1-7/8" OD x 1-3/8" ID x 18 Ga B, Stamped 200

6шт.

59

440385A1

BUSHING

Locking

1шт.

60

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

61

87372657

BUSHING

Carrier Bracket

2шт.

62

87635817

PLUG

1-1/4"

1шт.

63

374138A1

BUSHING

1-1/4", Split Taper

1шт.

64

374139A1

HUB

HH-1 Sleeve

1шт.

65

389396A1

KEY

0.188" x 0.25" x 1.25"

1шт.

66

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

67

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

68

87494153

DECAL

Draper Tension

1шт.
