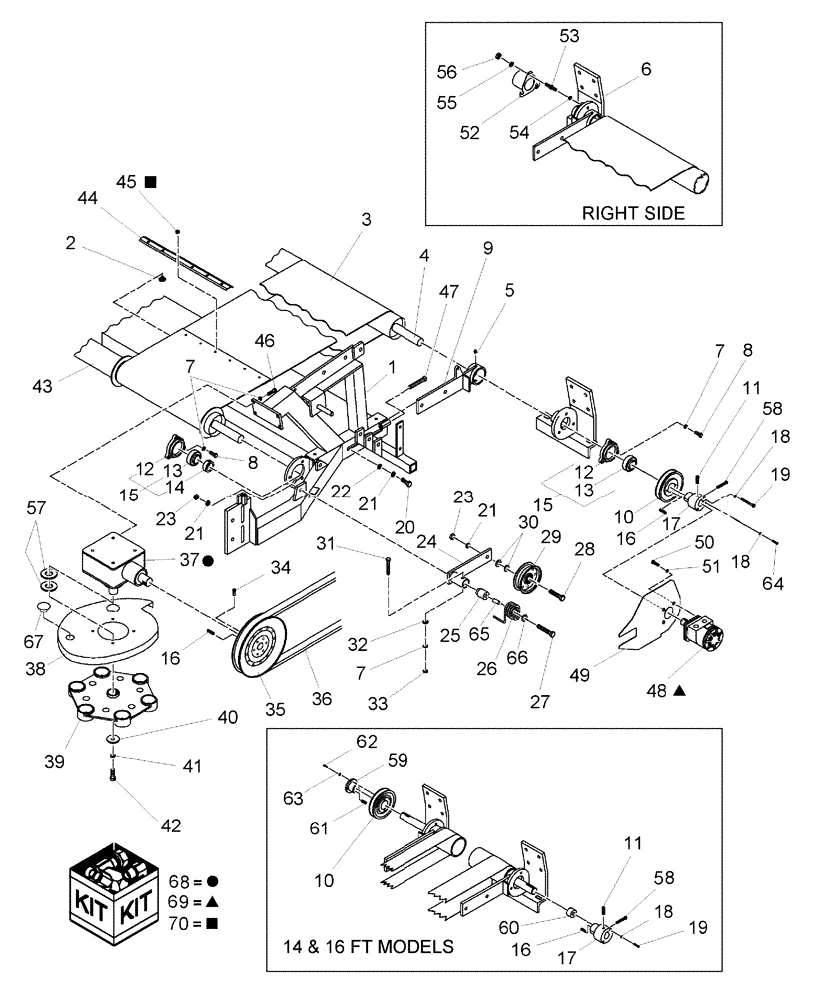

Запчасти Case IH 2016 (20.21[01]) - DRAPER AND GEAR BOX DRIVE, RAKE TYPE, BPIN PMN003045 [PNP002010] (60) - PRODUCT FEEDING

1

86989870

FRAME

Main, 12 Ft, W/Decals

1шт.

1

86989871

FRAME

Main, 14 Ft, W/Decals

1шт.

1

87448943

FRAME

Main, 16 Ft, W/Decals

1шт.

2

377387A1

BOLT

Elevator, 1/4"-20 x 1/2", 3 Prong, Qty Per Belt

6шт.

3

374098A1

BELT

Draper, 12 Ft

7шт.

3

374098A1

BELT

Draper, 14 Ft

8шт.

3

374098A1

BELT

Draper, 16 Ft

9шт.

3

376886A1

KIT

Qty (6) 1/4"-20 x 1/2" Elevator Bolts, Washers, & Nuts

1шт.

4

87462693

ROLLER,3820.5mm L

Rear, 12 Ft, Was 373863A1

1шт.

4

87462694

ROLLER,4302.5mm L

Rear, 14 Ft, Was 373864A1

1шт.

4

87462695

ROLLER

Rear, 16 Ft, Was 87433452

1шт.

5

86636811

LUBE NIPPLE

Straight, 1/8"

2шт.

6

373889A1

BRACKET

Carrier, RH

2шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

17шт.

8

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

9

86992031

BRACKET, SUPPORTING

Carrier, LH, W/AHHC Tab

1шт.

10

373909A1

PULLEY

Draper

1шт.

11

84983

SET SCREW,3/8" x 1"

Hydraulic Coupler Requires (2)

2шт.

12

373876A1

BEARING HOUSING

Roller Bearing

4шт.

13

156011C92

BALL BEARING

4шт.

14

557995R12

COLLAR ASSY.

Locking

4шт.

15

373987A1

BEARING ASSY

4шт.

16

Q26

KEY,1/4" Sq x 1 1/4", Par

2шт.

17

87451996

COUPLING,25.43mm ID x 63.5mm OD x 73mm L

Hydraulic Motor, 4 Bolt Holes, Was 373928A1

1шт.

17

87451997

COUPLING

Parts, Motor, Ref 17, 18, 19 & 64

1шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

19

86533305

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 2 1/2"

2шт.

20

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

22

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1/2", Hard

4шт.

23

280431

NUT,1/2"-13, G5

2шт.

24

373905A1

ARM

Belt Tightener

1шт.

25

87372631

BUSHING

Belt Tightener, Was 373942A1 W/O Ref 65

1шт.

26

374133A1

TIGHTENER

LH

1шт.

26

374134A1

TIGHTENER

RH

1шт.

27

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

28

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

29

87635814

PULLEY,102mm OD

Tightener

1шт.

30

86636809

WASHER

1/2"

2шт.

31

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

32

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

33

9628503

NUT,3/8"-16, G5

1шт.

34

87616

SET SCREW,3/8" - 16 x 3/4"

2шт.

35

373912A1

PULLEY

B, 10"

1шт.

36

374100A1

V-BELT

B92

1шт.

37

373877A1

GEARBOX ASSY

12 Ft

1шт.

37

373880A1

GEARBOX ASSY

14 Ft & 16 Ft

1шт.

37

373880A1R

REMAN-GEARBOX

Reman For New PN 373880A1

1шт.

37

373880A1C

CORE-GEARBOX

Return Number

1шт.

38

373865A1

PLATE

Scroll, 12 Ft

1шт.

38

373867A1

PLATE

Scroll, 14 Ft & 16 Ft

1шт.

39

See Figure 20.22

1шт.

40

374632A1

WASHER

Special, 2" x 17/32" x 3/16"

1шт.

41

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

42

373979A1

BOLT

Drilled, 1/2"-13 x 1-1/2"

1шт.

43

87462696

ROLLER

Front, 12 Ft, Was 373860A1

1шт.

43

87462697

ROLLER

Front, 14 Ft, Was 373861A1

1шт.

43

87462698

ROLLER

Front, 16 Ft, Was 87448947

1шт.

44

373946A1

PROTECTOR

Belt Edge, 1 Per Belt

1шт.

45

523282

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

46

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

47

87759335

SET SCREW,Sq Hd, 1/2" - 13 x 3"

2шт.

48

87423608

MOTOR

Orbit 101-1010-009, 74cc

1шт.

Shaft Key 1/4" x 1" Woodruff, SAE 15, HT, (CNH 126-124)

1шт.

49

373976A1

ARM

1шт.

50

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

51

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

52

376885A1

BEARING COVER

1шт.

53

386986A1

STUD

4шт.

54

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

55

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

56

9637692

NUT,3/8"-16, Gr B

4шт.

57

448681A1

BUSHING

1-7/8" OD x 1-3/8" ID x 18ga (Stamp located on top of rotor drive)

1шт.

448681A1

BUSHING

Stamped 0

2шт.

448681A1

BUSHING

Stamped 50

3шт.

448681A1

BUSHING

Stamped 100

4шт.

448681A1

BUSHING

Stamped 150

5шт.

448681A1

BUSHING

Stamped 200

6шт.

58

87616

SET SCREW,3/8" - 16 x 3/4"

1шт.

59

374138A1

BUSHING

Split Taper, 14 Ft

1шт.

60

374139A1

HUB

1шт.

61

389396A1

KEY

3/16" x 1/4" x 1-1/4"

1шт.

62

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

63

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

64

281-64724

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

2шт.

65

440385A1

BUSHING

1шт.

66

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

Includes All Seals In Orbit Motor

1шт.

67

373944A1

PLUG

1-1/4" Scroll

1шт.

68

373978A1

PULLER

Service Tool

1шт.

69

87423616

SEAL KIT

Includes All Seals, Orbit Motor

1шт.

70

376886A1

KIT

1/4"-20 x 1/2" Elevator Bolt W/Washers & Nuts, Qty 6

1шт.
