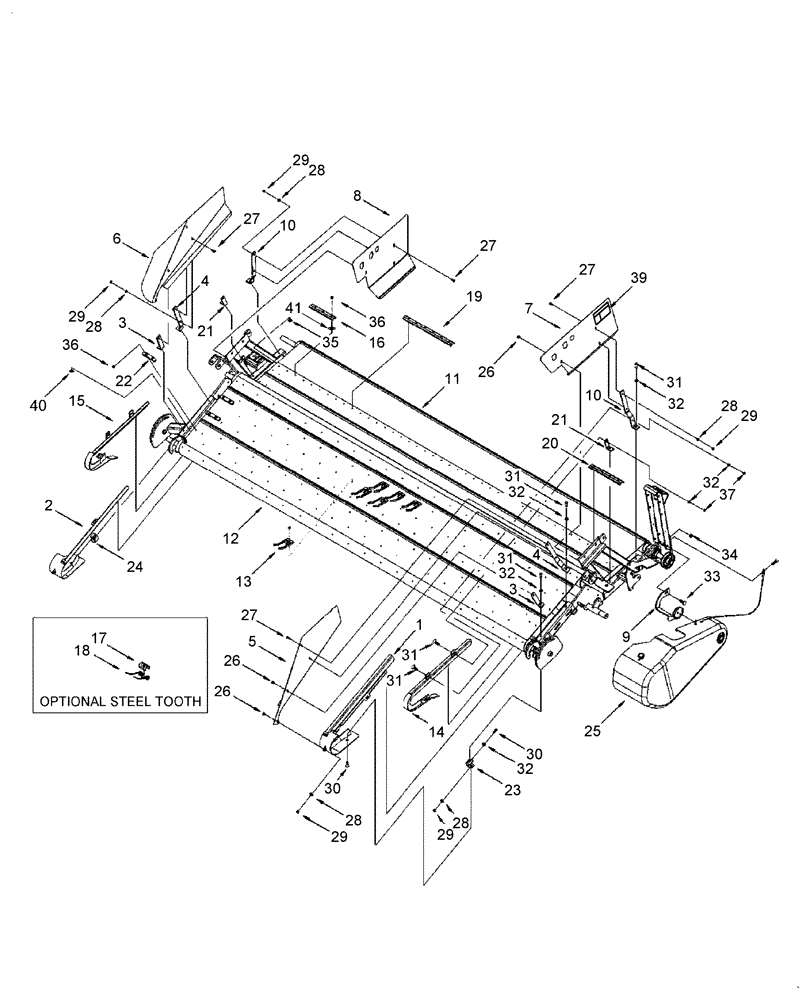

Запчасти Case IH 2016 (20.16[04]) - DRAPER & SHIELDS, BELT TYPE [SWATHMASTER], 12 FT GRASS SEED SPECIAL, P.I.N. PPP003001 & AFTER (60) - PRODUCT FEEDING

1

87635767

GUIDE

Belt Lead, Front, LH

1шт.

2

87635770

GUIDE

Belt Lead, Front, RH

1шт.

3

87642420

BRACKET

Front Windguard

2шт.

4

87642419

BRACKET

Windguard

2шт.

5

87372560

SHIELD

Front, LH, W/3-Panel Decal

1шт.

5

87494151

GUARD ASSY.

Front, LH, W/2-Panel Wordless

1шт.

6

87372563

SHIELD

Front, RH, W/3-Panel Decal

1шт.

6

87494152

GUARD ASSY.

Front, RH, W/2-Panel Wordless Decal

1шт.

7

86989886

WINDGUARD

LH, Rear, W/3-Panel Decal

1шт.

7

87494154

GUARD ASSY.

LH, Rear, W/2-Panel Wordless Decal

1шт.

8

86989885

WINDGUARD

RH, Rear, W/3-Panel Decal

1шт.

8

87494155

GUARD ASSY.

RH, Rear, W/2-Panel Wordless Decal

1шт.

9

87372622

BRACKET

Rear Shield

1шт.

10

87635778

BRACKET

Rear Windguard

2шт.

11

87635822

HEAD ASSY.

12' Solid, Rubber, Rear

1шт.

12

87635821

HEAD ASSY.

12' Solid, Rubber, Front

1шт.

13

374025A1

FINGER

Swathmaster

300шт.

377386A1

BOLT

1/4"-20 x 3/4", Elevator

300шт.

9626558

FLANGE NUT,Flg, 1/4"-20

300шт.

14

87635769

GUIDE

Rear, LH

1шт.

15

87635768

GUIDE

Rear, RH

1шт.

16

87635744

STRIP

Edge Protector, 3 Hole

2шт.

17

374175A1

RETAINER

Tooth Retainer, Steel

300шт.

18

374176A1

TOOTH

Finger, Steel

300шт.

19

373946A1

PROTECTOR

Edge

12шт.

20

87635745

STRIP

Protector, Edge, 4 Hole

2шт.

21

87635771

BRACKET

Windguard, Rear

2шт.

22

87675674

GUIDE

Plastic

38шт.

23

87532559

BRACKET

Lower, LH

1шт.

24

87532561

BRACKET

Lower, RH

1шт.

25

See Figure 20.16 (02)

1шт.

26

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

6шт.

27

619978

SCREW

8шт.

28

No Longer Used

1шт.

29

86521605

FLANGE NUT,5/16"-18, Cl 5

14шт.

30

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

31

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

32

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

33

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

34

280431

NUT,1/2"-13, G5

1шт.

35

87635828

BOLT

Elevator

86шт.

36

523282

SERRATED NUT,Flg, USR, 1/4"-20

162шт.

37

9628503

NUT,3/8"-16, G5

4шт.

38

86996879

DECAL

Danger, Pinch Point, 3-Panel

2шт.

38

278215A1

DECAL

2-Panel Wordless

2шт.

39

86989680

DECAL

Attention, Storage Beace, 3-Panel

2шт.

39

446299A1

DECAL

2-Panel Wordless

2шт.

40

377387A1

BOLT

Elevator, 1/4"-1/2", Prong

76шт.

41

87372681

LOCK WASHER

1/4", Nylon Retainer

86шт.
