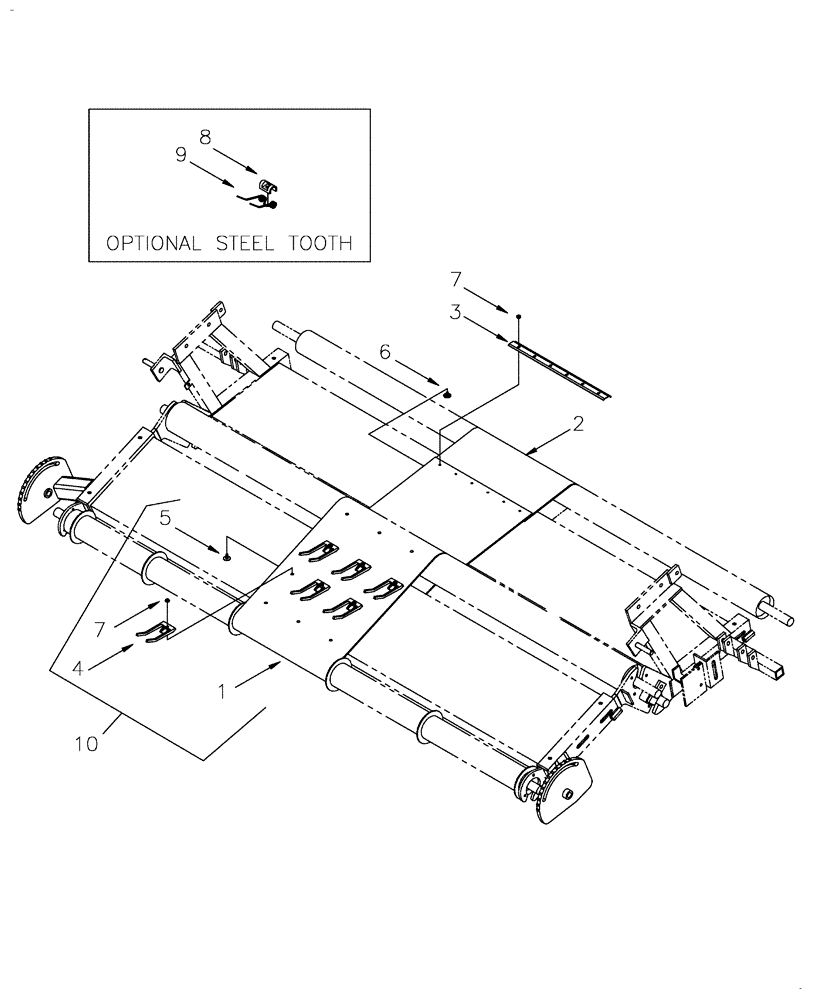

Запчасти Case IH 2016 (20.16[03]) - DRAPER ASSEMBLY, BELT TYPE [SWATHMASTER], P.I.N. PMN03045 [PNP002010] & AFTER (60) - PRODUCT FEEDING

1

374099A1

BELT

Front, 14 Ft

8шт.

1

374099A1

BELT

Front, 16 Ft

9шт.

2

374098A1

BELT

Rear, 14 Ft

8шт.

2

374098A1

BELT

Rear, 16 Ft

9шт.

3

373946A1

PROTECTOR

Edge, 1 Per Belt

1шт.

4

374025A1

FINGER

Swathmaster Plastic, 14 Ft

322шт.

4

374025A1

FINGER

Swathmaster Plastic, 16 Ft

364шт.

5

377386A1

BOLT

Elevator, 1/4" x 3/4"

1шт.

6

377387A1

BOLT

Elevator, 1/4" x 1/2", 3-Tip

6шт.

7

9626558

FLANGE NUT,Flg, 1/4"-20

Qty 6 Per Belt

6шт.

8

374175A1

RETAINER

1шт.

9

374176A1

TOOTH

1шт.

10

374197A1

BELT

Front, Complete W/Teeth

1шт.
