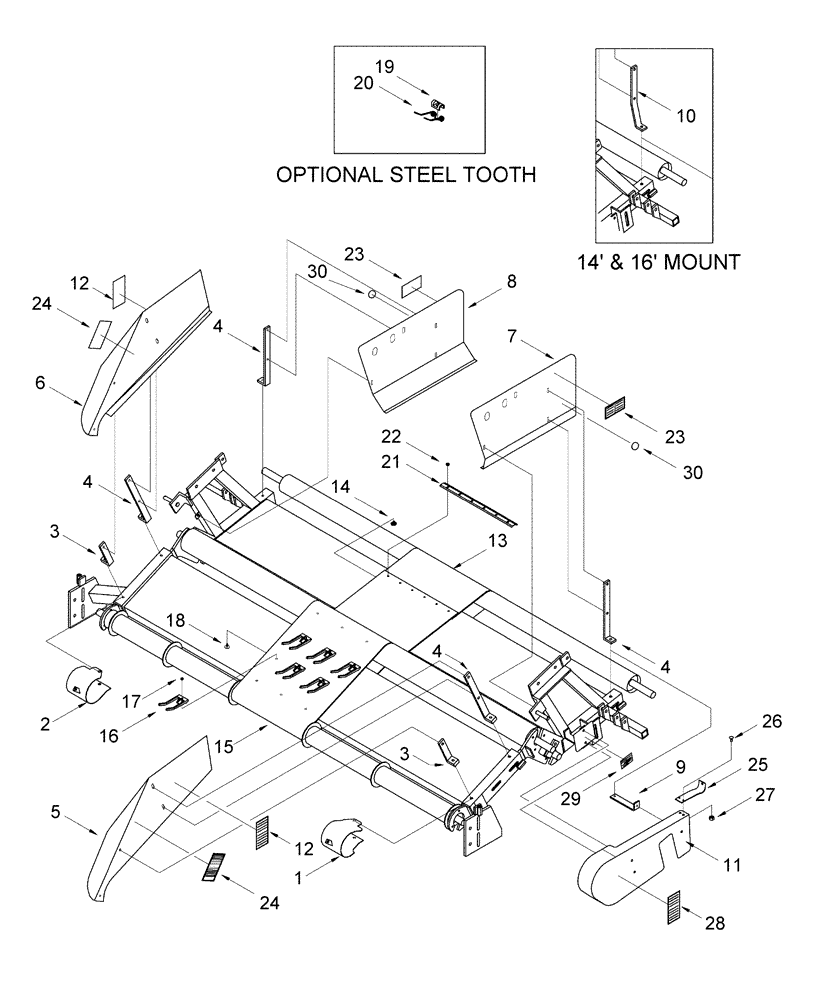

Запчасти Case IH 2016 (20.16[01]) - DRAPER & SHIELD, BELT TYPE [SWATHMASTER], P.I.N. PMN003045 [PNP002010] & PRIOR (60) - PRODUCT FEEDING

1

374020A1

GUARD

Roller, LH Front

1шт.

2

374021A1

GUARD

Roller, RH Front

1шт.

3

374012A1

BRACKET

Front Windguard

2шт.

4

373894A1

BRACKET

Windguard/90

4шт.

5

374017A1

GUARD

LH Front, W/Decal

1шт.

6

374018A1

GUARD

RH Front, W/Decal

1шт.

7

86989886

WINDGUARD

LH Rear, W/Decal

1шт.

8

86989885

WINDGUARD

RH Rear, W/Decal

1шт.

9

374013A1

BRACKET

Chain Guard, Rear

1шт.

10

373895A1

BRACKET

Windguard, 14 Ft, Offset

2шт.

11

448515A1

GUARD

Chain, W/Decal SWATHMASTER

1шт.

12

86996879

DECAL

Danger, Hazard

2шт.

13

374098A1

BELT

Rear, 12 Ft Header, Teeth Not Included

7шт.

13

374098A1

BELT

Rear, 14 Ft Header, Teeth Not Included

8шт.

13

374098A1

BELT

Rear, 16 Ft Header, Teeth Not Included

9шт.

13

374197A1

BELT

Rear, W/Teeth (belt, teeth, hardware)

1шт.

14

377387A1

BOLT

Elevator, 1/4"-20 x 1/2" (6 Per Belt)

1шт.

15

374099A1

BELT

Front, Bolt Together, Teeth Not Included

1шт.

376886A1

KIT

Bolt Together Hardware, Includes (6) 1/4"-20 x 1/2" Elevator bolts, (6) 1/4"-20 serrated flange nuts, (6) 1/4" flat washers

1шт.

16

374025A1

FINGER

12 Ft Header

280шт.

16

374025A1

FINGER

14 Ft Header

322шт.

16

374025A1

FINGER

16 Ft Header

364шт.

17

523282

SERRATED NUT,Flg, USR, 1/4"-20

Used W/Ref 16

1шт.

18

377386A1

BOLT

Used W/Ref 16

1шт.

19

374175A1

RETAINER

Used W/Ref 16

1шт.

20

374176A1

TOOTH

Used W/Ref 16

1шт.

21

373946A1

PROTECTOR

Belt Edge, Qty 1 Per Belt

1шт.

22

523282

SERRATED NUT,Flg, USR, 1/4"-20

Qty 6 Per Belt

1шт.

23

86989680

DECAL

ATTENTION, Storage Brace

2шт.

24

86989679

DECAL

WARNING, Safety Lock

2шт.

25

448517A1

GUARD

Flap, Chain, Rubber

1шт.

26

87327192

SCREW,Truss HD, 1/4" x 3/4", Gr 8

2шт.

27

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

28

84989464

DECAL

10 Hour Grease

2шт.

29

86626959

WARNING DECAL

Shield Open

1шт.

30

86626958

WARNING DECAL

Do Not Open

1шт.

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Ref 1 & 2 to Frame, Lower Side

2шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

Ref 1 & 2 to Frame, Lower Side

2шт.

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Ref 3 to Frame, LH and RH Side

2шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

Ref 3 to Frame, LH and RH Side

2шт.

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Ref 4 to Frame, RH Side

2шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

Ref 4 to Frame, RH Side

2шт.

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

Ref 4 & 9 to Frame, LH Side

2шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

Refg 4 & 9 to Frame, LH Side

2шт.

619978

SCREW

Truss Hd, USR, 5/16"-18 x 1", Ref 5 & 6 to Ref 1 & 2, Front of Shield

2шт.

80681

LOCK WASHER,5/16"

Ref 5 & 6 to Ref 1 & 2, Front of Shield

2шт.

9635082

NUT,5/16" - 18, Gr 5

Ref 5 & 6 to Ref 1 & 2, Front of Shield

2шт.

619978

SCREW

Truss Hd, USR, 5/16"-18 x 1", Ref 5 & 6 to Ref 3 & 4, Rear of Shield

6шт.

80681

LOCK WASHER,5/16"

Ref 5 & 6 to Ref 3 & 4, Rear of Shield

6шт.

9635082

NUT,5/16" - 18, Gr 5

Ref 5 & 6 to Ref 3 & 4, Rear of Shield

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

Ref 7 & 8 to Frame, Front of Shield

2шт.

80681

LOCK WASHER,5/16"

Ref 7 & 8 to Frame, Front of Shield

2шт.

9635082

NUT,5/16" - 18, Gr 5

Ref 7 & 8 to Frame, Front of Shield

2шт.

619978

SCREW

Ref 7 & 8 to Ref 4 or 10, Rear of Shield

4шт.

80681

LOCK WASHER,5/16"

Ref 7 & 8 to Ref 4 or 10, Rear of Shield

4шт.

9635082

NUT,5/16" - 18, Gr 5

Ref 7 & 8 to Ref 4 or 10, Rear of Shield

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

Ref 11 to Ref 9 & Frame

3шт.

80681

LOCK WASHER,5/16"

Ref 11 to Ref 9 & Frame

3шт.

9635082

NUT,5/16" - 18, Gr 5

Ref 11 to Ref 9 & Frame

3шт.

619978

SCREW

Truss Hd, USR, 5/16"-18 x 1", Ref 11 to Ref 9 & Frame

2шт.

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

Ref 25 to Ref 11

2шт.

523282

SERRATED NUT,Flg, USR, 1/4"-20

Ref 25 to Ref 11

2шт.
