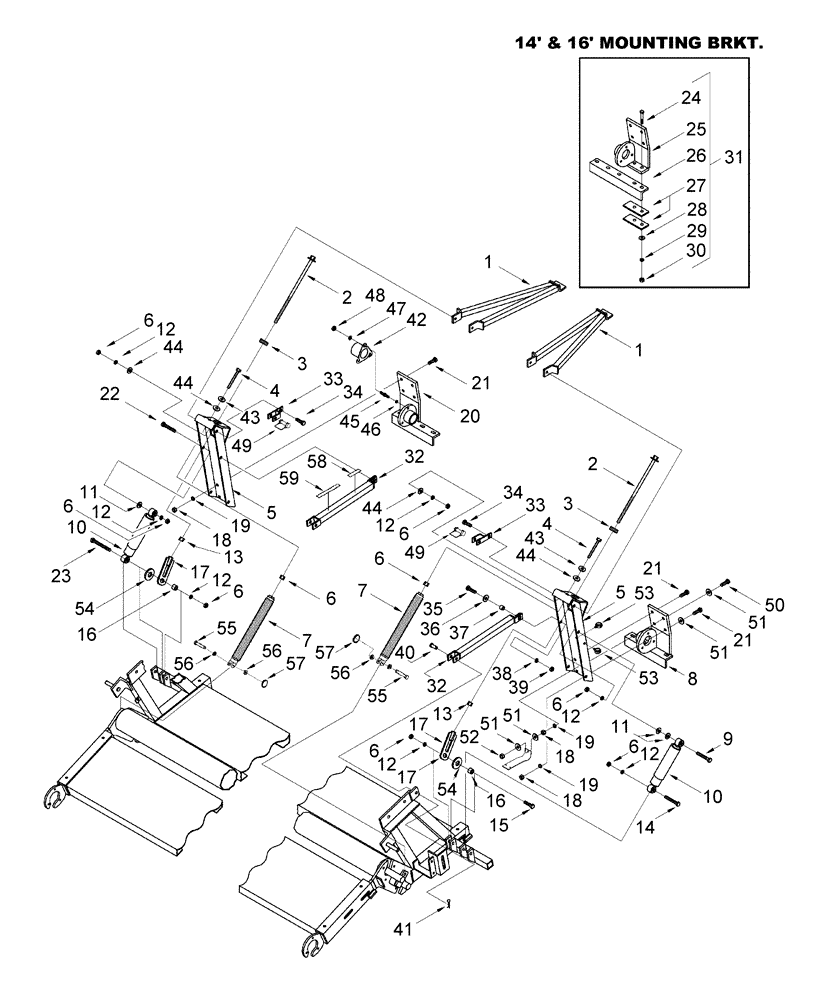

Запчасти Case IH 2016 (20.14[01]) - SUSPENSION, BELT TYPE [SWATHMASTER], P.I.N. HOLD DOWN, HYDRAULIC LIFT, BELT TYPE [SWATHMASTER], P.I.N. PMN003045 [PNP002010] & PRIOR (60) - PRODUCT FEEDING
№
Артикул
Название
Примечание
Количество
1
374078A1
BRACE
Header, 12 Ft RH, 14 Ft LH, 16 Ft LH
2шт.
1
374079A1
BRACE
Header, 12 Ft LH, 14 Ft RH, 16 Ft RH
2шт.
2
373982A1
BOLT
Lifter Adjust
2шт.
3
373938A1
STOP
Rubber
8шт.
4
373981A1
BOLT
HH, G5, 1/2" x 12"
2шт.
BPIN PMN002375 (PNU002030, AUS)
1шт.
4
87675535
BOLT
5/8"-11 x 12", Full Thread
2шт.
PIN PMN002375 (PNU002030, AUS) and after
1шт.
5
373903A1
CHANNEL
Upright
2шт.
BPIN PMN002375 (PNU002030, AUS)
1шт.
5
87451998
CHANNEL
Upright
2шт.
PIN PMN002375 (PNU002030, AUS) and after
1шт.
7
373937A1
SPRING
W/Plug
2шт.
BPIN PMN002375 (PNU002030, AUS)
1шт.
7
87451999
SPRING
W/Plug
2шт.
BPIN PMN002375 (PNU002030, AUS)
1шт.
7
87452000
SERVICE KIT
Suspension Spring Upgrade
1шт.
BPIN PMN002375 (PNU002030, AUS)
1шт.
8
373890A1
BRACKET
Mounting, LH, 12 Ft
1шт.
9
87339
BOLT,Hex, 1/2" - 13 x 3", Gr 5
1шт.
10
374171A1
SHOCK ABSORBER
2шт.
11
374626A1
WASHER
1/4"
3шт.
12
80679
LOCK WASHER,1/20.507 CST ZND
7шт.
14
87339
BOLT,Hex, 1/2" - 13 x 3", Gr 5
1шт.
15
9706716
BOLT,Hex, 1/2" - 13 x 2", Gr 5
1шт.
16
373940A1
BUSHING
Lifter Bracket
2шт.
17
373904A1
BRACKET
Lifter
2шт.
19
80679
LOCK WASHER,1/20.507 CST ZND
8шт.
20
373891A1
BRACKET
Mounting, RH, 12 Ft
1шт.
21
87689
BOLT,1/2"-13 x 1.813" OAL, Gr 5
7шт.
22
87339
BOLT,Hex, 1/2" - 13 x 3", Gr 5
1шт.
23
87996
BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5
1шт.
24
87972
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5
4шт.
25
373899A1
BRACKET
Mounting, LH, Below Cutter Bar
1шт.
25
373900A1
BRACKET
Mounting, RH, Below Cutter Bar
1шт.
26
373897A1
ANGLE
LH, Below Cutter Bar
1шт.
26
373898A1
ANGLE
RH, Below Cutter Bar
1шт.
27
413630A1
SHIM
14 Ft
4шт.
28
86636809
WASHER
1/2"
4шт.
29
80679
LOCK WASHER,1/20.507 CST ZND
4шт.
31
373892A1
BRACKET
Mounting Assy, LH, 14 & 16 Ft
1шт.
31
373893A1
BRACKET
Mounting Assy, RH, 14 & 16 Ft
1шт.
32
413636A1
BRACE
Storage, Clevis Type
2шт.
BPIN PMN002375 (PNU002030, AUS)
1шт.
32
87452001
BRACE
Storage, LH
1шт.
PIN PMN002375 (PNU002030, AUS) and after
1шт.
32
87452002
BRACE
Storage, RH
1шт.
PIN PMN002375 (PNU002030, AUS) and after
1шт.
33
373907A1
BRACE
Storage Holder
2шт.
34
87689
BOLT,1/2"-13 x 1.813" OAL, Gr 5
2шт.
36
86636809
WASHER
1/2"
2шт.
37
373963A1
BUSHING
Storage Brace
2шт.
38
80679
LOCK WASHER,1/20.507 CST ZND
2шт.
40
413663A1
CLEVIS PIN
1/2" x 1-3/4"
2шт.
41
1978737C1
COTTER PIN,Int, 1/8" x 49mm
1/8" x 2-9/16"
2шт.
42
376885A1
BEARING COVER
Bearing
3шт.
43
87452003
WASHER
Hardened, 5/8"
2шт.
PIN PMN002375 (PNU002030, AUS) and after
1шт.
43
86632589
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
Hardened, 1/2"
2шт.
BPIN PMN002375 (PNU002030, AUS)
1шт.
44
86636809
WASHER
1/2"
4шт.
BPIN PMN002375 (PNU002030, AUS)
1шт.
44
87452004
WASHER
5/8"
2шт.
PIN PMN002375 (PNU002030, AUS) and after
1шт.
45
386986A1
STUD
9шт.
46
80680
LOCK WASHER,3/8 0.381 CST ZND
9шт.
47
80702
WASHER,0.44" ID x 1" OD x 0.08" Thk
9шт.
48
9637692
NUT,3/8"-16, Gr B
9шт.
49
390586A1
PIN
3/8" x 2-1/2"
2шт.
51
87364
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
4шт.
52
86632558
JAM NUT,Jam, 1/2"-13, G5
1шт.
53
87432436
CLAMP
3/8", Loom Type, 12 Ft Header
1шт.
53
87432436
CLAMP
3/8", Loom Type, 14 Ft & 16 Ft Header
2шт.
55
86837477
CLEVIS PIN,12.7mm OD x 57.15mm L
2шт.
56
87364
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
4шт.
57
87452005
RING
Split
2шт.
58
87452006
DECAL
Notification, Small
4шт.
59
87452007
DECAL
Notification, Large
4шт.
87689
BOLT,1/2"-13 x 1.813" OAL, Gr 5
12 Ft (2), 14 Ft (4), Ref 1 to Ref 5 and Ref 1 to Header
6шт.
80679
LOCK WASHER,1/20.507 CST ZND
Ref 1 to Ref 5 and Ref 1 to Header
6шт.
Выбрано товаров: 89
