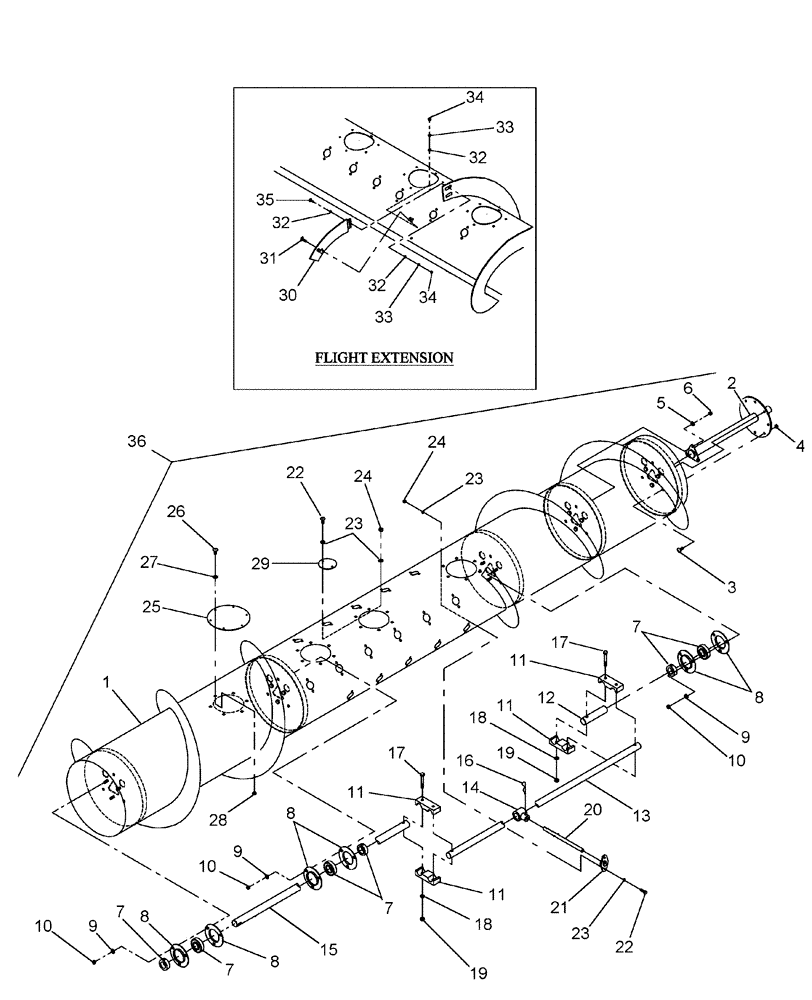

Запчасти Case IH 2016 (20.04) - AUGER (60) - PRODUCT FEEDING

1

NLS

NO LONGER SERVICED

12 Ft & 14 Ft, Straight Pattern, See Figure Note

1шт.

BPIN CAB010350

1шт.

1

87532564

AUGER

12 Ft & 14 Ft, V Pattern, Use for prior PIN units

1шт.

PIN CAB010350 and after

1шт.

1

NLS

NO LONGER SERVICED

16 Ft, Straight Pattern, See Figure Note

1шт.

BPIN CAB010350

1шт.

1

87532562

AUGER

16 Ft, V Pattern, Use for prior PIN units

1шт.

PIN CAB010350 and after

1шт.

2

86989913

SHAFT

Auger Drive

1шт.

3

413666A1

BOLT

Cap, HH, CL 10.9, M12 x 1.75 x 30

8шт.

4

86981468

FLANGE NUT,M12 x 1.75, Flg, Cl 10

8шт.

5

140017

WASHER,M10 x 20mm OD x 2mm Thk

3шт.

6

412141

NUT,M10 x 1.5, Cl 8

3шт.

7

374130A1

BALL BEARING,50 mm ID

W/Collar

3шт.

8

374132A1

HOUSING

Flanged Pair

3шт.

9

140017

WASHER,M10 x 20mm OD x 2mm Thk

9шт.

10

412141

NUT,M10 x 1.5, Cl 8

9шт.

11

374038A1

CLAMP

Finger Support

4шт.

12

374070A1

SHAFT

Stub

1шт.

13

374060A1

SHAFT

Finger Support

1шт.

14

374178A1

HOLDER

Finger

22шт.

15

440415A1

CRANKSHAFT

Finger, 12 Ft & 14 Ft

1шт.

15

87433443

CRANKSHAFT

Finger, 16 Ft

1шт.

16

185309A1

HAIR PIN COTTER

M78.6 x 4.6 Chamfered End

18шт.

17

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

4шт.

18

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

19

412141

NUT,M10 x 1.5, Cl 8

4шт.

20

374042A1

FINGER ASSY.,15.8mm OD x 270mm L

C/W Spring Pin

18шт.

21

374177A1

GUIDE

Auger Finger

18шт.

22

120100

BOLT,M6 x 20mm, Cl 8.8

44шт.

23

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

88шт.

24

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

44шт.

25

435915A1

COVER

Hand Hole

5шт.

26

120100

BOLT,M6 x 20mm, Cl 8.8

30шт.

27

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

30шт.

28

377776A1

NUT

M6 x 1, Anchor

30шт.

29

440416A1

COVER

Finger Hole

8шт.

30

446296A1

EXTENSION

LH

1шт.

30

446298A1

EXTENSION

RH

1шт.

31

611-8025

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

12шт.

32

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

24шт.

33

892-11008

LOCK WASHER,8mm ID

16шт.

34

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

16шт.

35

386987A1

HEX SOC SCREW,Btn Hd, M8 x 1.25 x 25mm, Cl 12.9

4шт.

36

87433406

AUGER

22 Finger, 12 & 14ft

1шт.

BPIN CAB010350

1шт.

36

87433434

AUGER

22 Finger, 16ft

1шт.

BPIN CAB010350

1шт.

36

NS

NOT SERVICED

Auger, 14ft

1шт.

PIN CAB010350 and after

1шт.

36

NS

NOT SERVICED

Auger, 16ft

1шт.

PIN CAB010350 and after

1шт.
