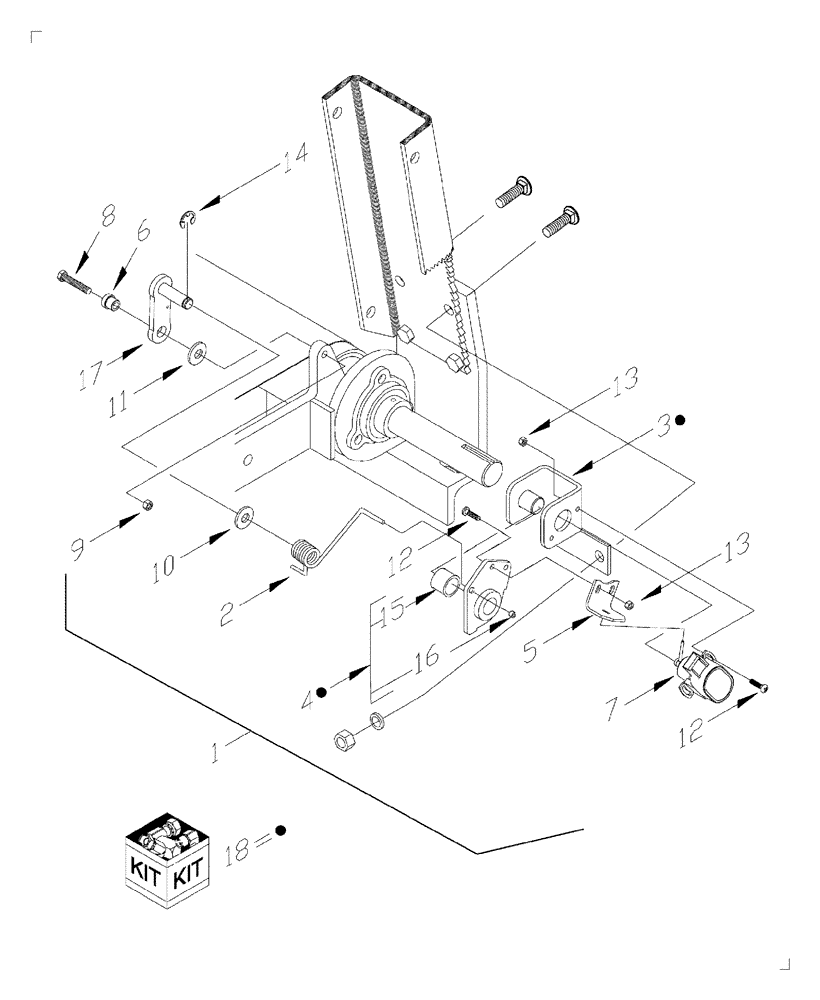

Запчасти Case IH 2016 (20.30) - ACTIVE HEADER HEIGHT CONTROL (58) - ATTACHMENTS/HEADERS

1

87408081

KIT

AHHC, CRCX, Field Install

1шт.

2

86992042

TORSION SPRING

Lever

1шт.

3

84130307

BRACKET

See Figure Note

1шт.

4

84130308

ARM ASSY.

C/W Ref 15 & 16, See Figure Note

1шт.

5

86607215

ANGLE

Bracket, Height Control

1шт.

6

86992098

BUSHING

5/16" ID x 1/2" OD x 3/8" L

1шт.

7

84073468

SENSOR

Height Control

1шт.

8

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

9

86629544

NUT,5/16” – 18, GR B

1шт.

10

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1шт.

11

87016230

WASHER

7/8" OD x 17/32" ID x 18 Gage

1шт.

12

87016228

BOLT,Hex, #10 - 24 x 5/8"

HH, #10-24 x 5/8"

4шт.

13

86632551

NUT,#10-24, GB

4шт.

14

86514147

SNAP RING,#50, Ext

1шт.

15

420761

BUSHING,20mm ID x 23mm OD x 20mm L

Split Plastic

1шт.

16

86992099

BUSHING

1/8" ID x 1/4" OD 1/4" L

1шт.

17

86992040

LEVER

Spring Mount

1шт.

18

84130306

KIT

Ref 3 & 4 C/W Bushings, See Figure Note

1шт.
