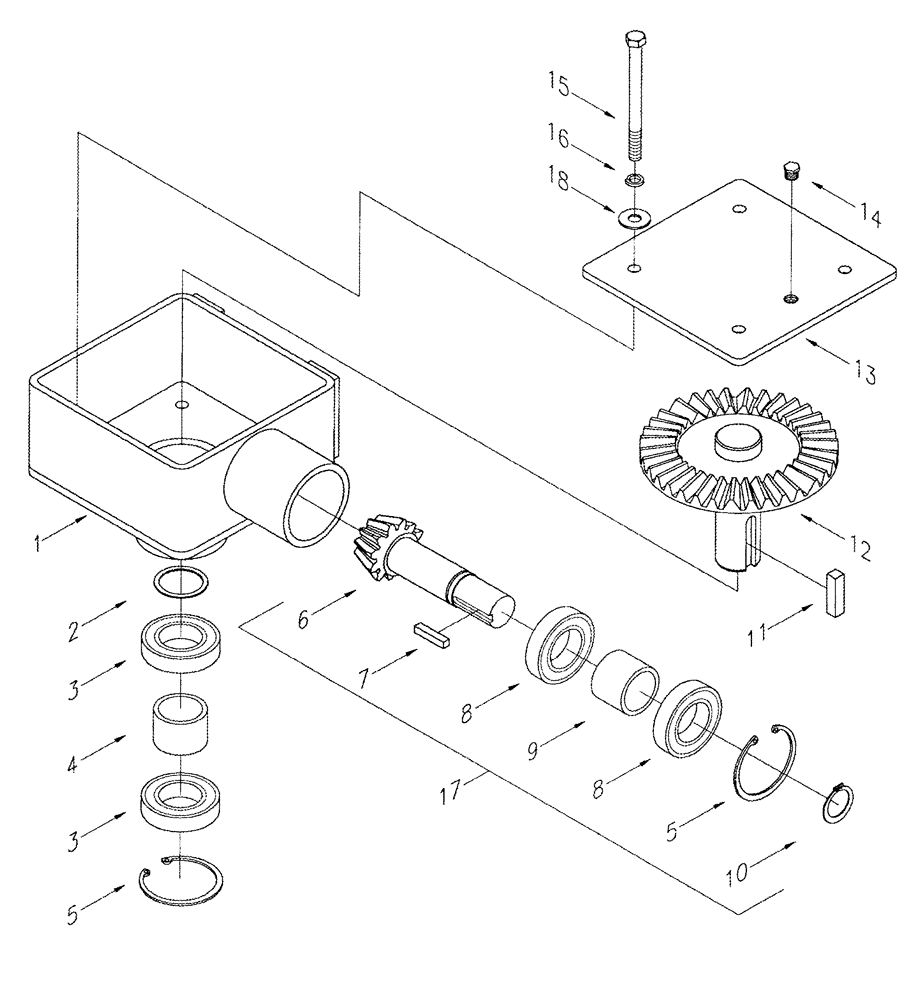

Запчасти Case IH 2016 (20.24) - GEAR BOX MAIN, RAKE TYPE (58) - ATTACHMENTS/HEADERS

373880A1

GEARBOX ASSY

Consists Of 1-18

1шт.

373880A1R

REMAN-GEARBOX

Reman For New PN 373880A1

1шт.

373880A1C

CORE-GEARBOX

Return Number

1шт.

1

373882A1

HOUSING

1шт.

2

374540A1

BUSHING

1шт.

3

374105A1

BALL BEARING,35mm ID x 62mm OD x 14mm W

2шт.

4

373885A1

SPACER

1шт.

5

32324

SNAP RING,2.44", Int, #244

2шт.

6

373884A1

GEAR

Pinion, 11T

1шт.

7

Q26

KEY,1/4" Sq x 1 1/4", Par

1шт.

8

374106A1

BALL BEARING

2шт.

9

373886A1

SPACER

1шт.

10

167080

SNAP RING,#118, Ext

1шт.

11

Q63

KEY,3/8" Sq x 1 1/2", Par

1шт.

12

373883A1

GEAR

36 T

1шт.

13

87635732

COVER

W/O Decal

1шт.

14

374184A1

PLUG

1/8" NF

1шт.

15

86505980

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

4шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

17

NLS

NO LONGER SERVICED

1шт.

18

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.
