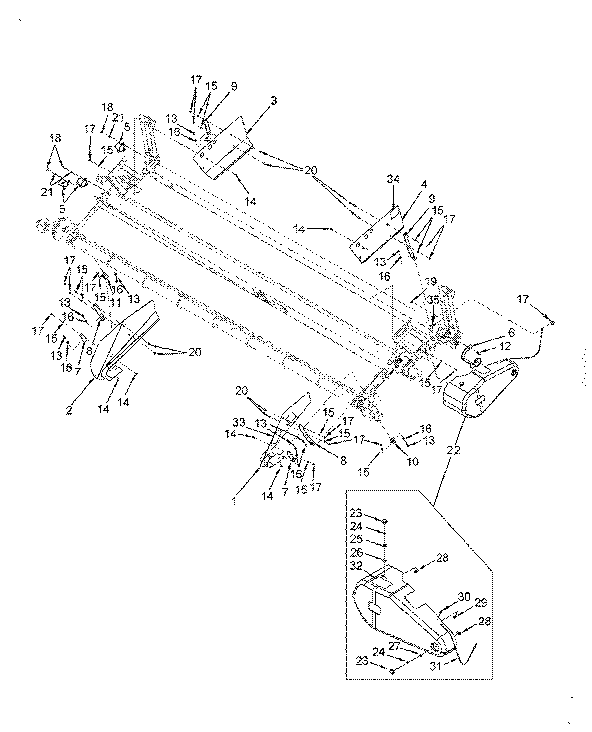

Запчасти Case IH 2016 (20.16[02]) - DRAPER & SHIELD, BELT TYPE [SWATHMASTER], P.I.N. PMN003045 [PNP002010] & AFTER (58) - ATTACHMENTS/HEADERS

1

87372560

SHIELD

Front, LH, W/3-Panel Decals

1шт.

1

87532580

GUARD

Front, LH, W/2-Panel Wordless Decals

1шт.

2

87372563

SHIELD

Front, RH, W/3-Panel Decals

1шт.

2

87532581

GUARD

Front, RH, W/2-Panel Wordless Decals

1шт.

3

86989885

WINDGUARD

Rear, RH, W/3-Panel Decals

1шт.

3

446292A1

WINDGUARD

Rear, RH, W/2-Panel Wordless Decals

1шт.

4

86989886

WINDGUARD

Rear, LH, W/3-Panel Decals

1шт.

4

446291A1

WINDGUARD

Rear, LH, W/2-Panel Wordless Decals

1шт.

5

376885A1

BEARING COVER

Bearing

3шт.

6

87372622

BRACKET

Rear Shield

1шт.

7

87642420

BRACKET

Front Windguard

2шт.

8

87642419

BRACKET

Windguard

2шт.

9

373895A1

BRACKET

Windguard

2шт.

10

87532559

BRACKET

Lower, LH

2шт.

11

87532561

BRACKET

Lower, RH

1шт.

12

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

13

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

14

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

6шт.

15

Not Used

15шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

17

86521605

FLANGE NUT,5/16"-18, Cl 5

15шт.

18

9637692

NUT,3/8"-16, Gr B

Qty 8, 12 Ft Grass Seed

8шт.

18

86509499

JAM NUT,3/8"-16, G2

Front Roller Rear Frame, 12 Ft Grass Seed

9шт.

19

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

20

619978

SCREW

5/16"-18 x 1", Truss Head

8шт.

21

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

9шт.

22

87372558

SHIELD

W/3-Panel Decal, Includes Ref. 23 - 31

1шт.

22

87532578

SHIELD

W/2-Panel, Wordless Decal, Includes Ref. 23 - 31

1шт.

23

87372658

KNOB

2шт.

24

80681

LOCK WASHER,5/16"

2шт.

25

87362

WASHER,5/16" SAE

1шт.

26

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

2шт.

27

87372623

BUSHING

Rear Shield Pivot

1шт.

28

87532624

NUT

2шт.

29

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

30

87013355

RIVET,Pop, 6.35mm OD x 19.05mm L

2шт.

31

86989903

CABLE

Shield Anchor

1шт.

32

86626958

WARNING DECAL

Do Not Open, 3-Panel

1шт.

32

84004734

WARNING DECAL

2-Panel, Wordless

1шт.

33

86996879

DECAL

Danger, Pinch Point, 3-Panel

1шт.

33

278215A1

DECAL

2-Panel Wordless

1шт.

34

86989680

DECAL

Attention, Storage Brace, 3-Panel

1шт.

34

446299A1

DECAL

2-Panel Wordless

1шт.

35

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.
