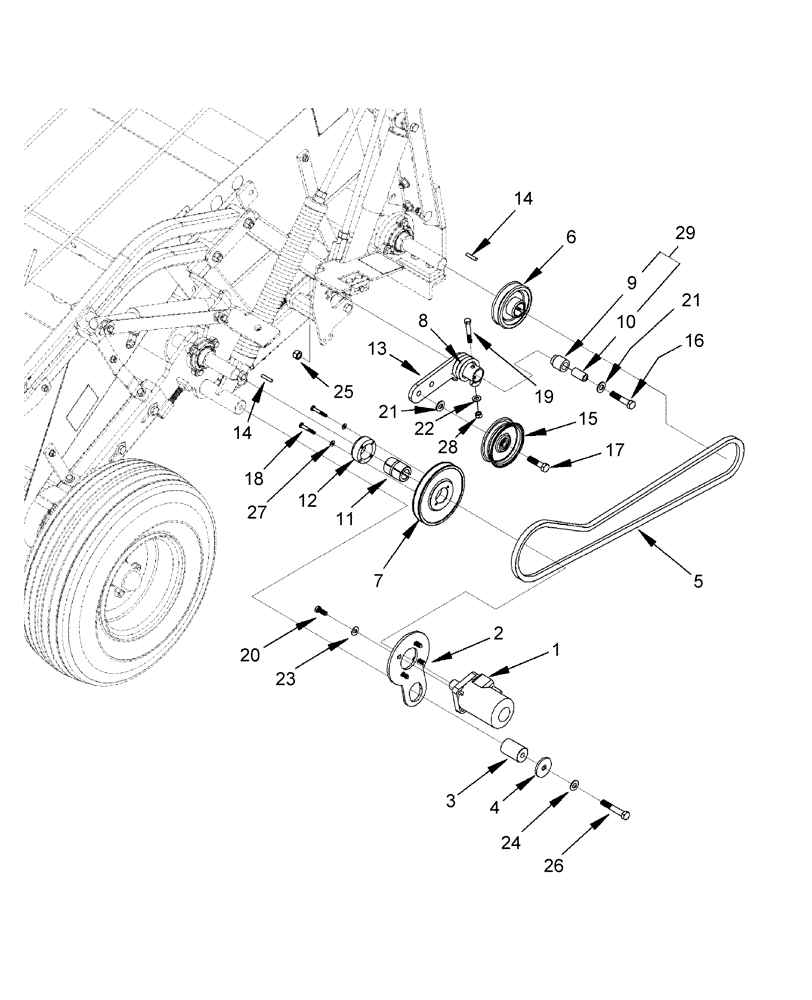

Запчасти Case IH 2016 (20.13[02]) - PICKUP DRIVE, BELT TYPE [SWATHMASTER], P.I.N. PMN003045 [PNP002010] & AFTER (58) - ATTACHMENTS/HEADERS

1

87532570

MOTOR

Orbit, 101-1011-009, 97cc

1шт.

Shaft Key 1/4" x 1" Woodruff, SAE 15, HT, (CNH 126-124)

1шт.

1

87423616

SEAL KIT

Kit, Motor, All Seals

1шт.

2

87635777

PLATE

Torque, 12 Ft, Grass Seed Special

1шт.

2

87372624

ARM ASSY.

Torque

1шт.

3

87372628

ARM ASSY.

Extension

1шт.

4

374632A1

WASHER

2" x 17/32" x 3/16"

1шт.

5

87635820

V-BELT

Grass Seed Special

1шт.

5

87372654

V-BELT

Super Blue Ribbon, BP66

1шт.

6

87532557

PULLEY

4-1/2", A/B Groove

1шт.

7

87635816

PULLEY

1шт.

8

374133A1

TIGHTENER

Spring

1шт.

9

87372631

BUSHING

Idler Arm

1шт.

10

440385A1

BUSHING

1шт.

11

87372553

COUPLING,25.4mm ID x 41.47mm OD x 56.4mm L

Sheave

1шт.

12

87372637

SLEEVE ASSY

Dual Coupler

1шт.

13

87372619

TENSIONER

Arm

1шт.

14

Q26

KEY,1/4" Sq x 1 1/4", Par

2шт.

15

87635814

PULLEY,102mm OD

Tightener

1шт.

16

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

17

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

18

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

19

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

20

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

21

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

22

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

25

9636698

NUT,1/2"-13, GB

1шт.

26

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

27

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

28

9637692

NUT,3/8"-16, Gr B

1шт.

29

NLS

NO LONGER SERVICED

1шт.
