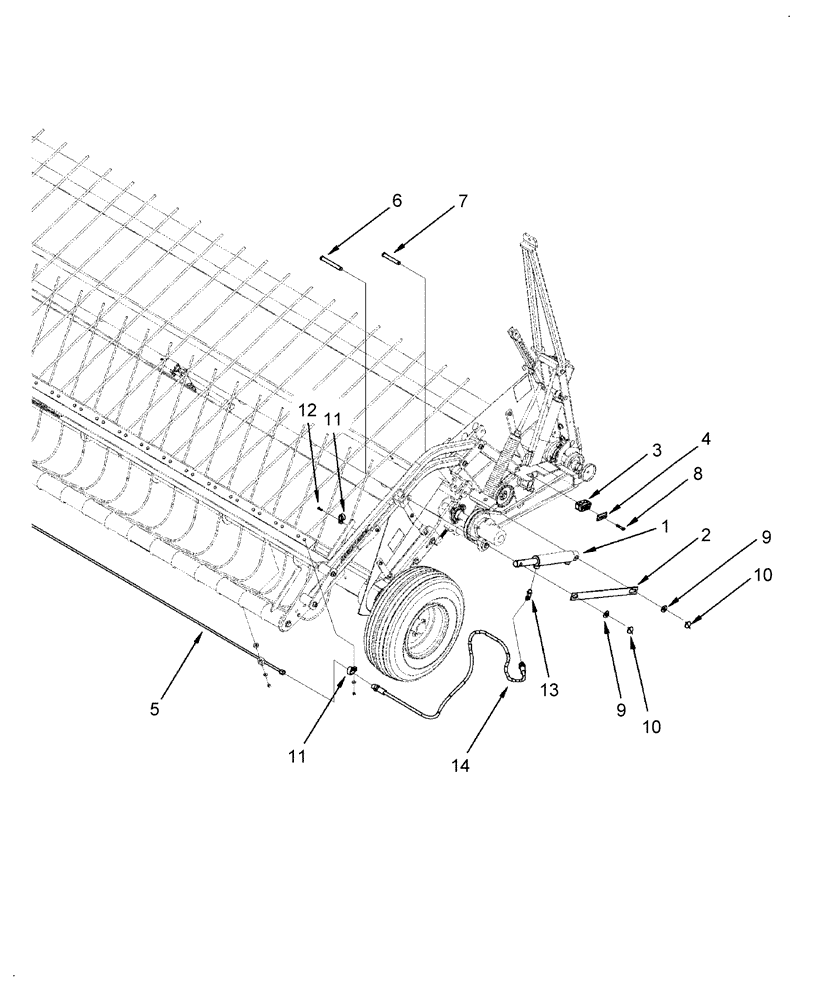

Запчасти Case IH 2016 (20.11[03]) - HOLD DOWN, HYDRAULIC LIFT, BELT TYPE [SWATHMASTER], P.I.N. PMN003045 [PNP002010] & AFTER (58) - ATTACHMENTS/HEADERS

1

413650A1

CYLINDER,Double Acting, 254mm Stroke

Master, 3000 PSI, 1-1/2" x 10", LH, See 20.12

1шт.

1

87423619

CYLINDER

Slave, 3000 PSI, 1-1/4" x 10", RH, See 20.12

1шт.

2

NS

NOT SERVICED

Shipping Only

2шт.

3

87532568

INSERT

Plastic

1шт.

4

87532569

PLATE

Top

1шт.

5

413633A1

HYD TUBE

12 Ft

1шт.

5

413634A1

TUBE

14 Ft

1шт.

5

87448946

TUBE,7.747 mm ID x 9.525/0.375 mm OD x 3810 mm L

16 Ft

1шт.

6

87522306

CLEVIS PIN

5/8" x 5"

2шт.

7

352621A1

CLEVIS PIN

5/8" x 4"

2шт.

8

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

1шт.

9

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

4шт.

10

341198A1

PIN

Lynch, Was Cotter Pin 1978737C1

4шт.

11

413662A1

HOSE CLAMP

Hose Clamp, Vinyl, 9/16"

4шт.

12

377773A1

SCREW,Hex, #14 x 19mm

#14 x 3/4", Sheet Metal

2шт.

13

374569A1

ELBOW UNION

Union Elbow #6 MORB x #6 MJIC

2шт.

14

413635A1

HOSE

2шт.
