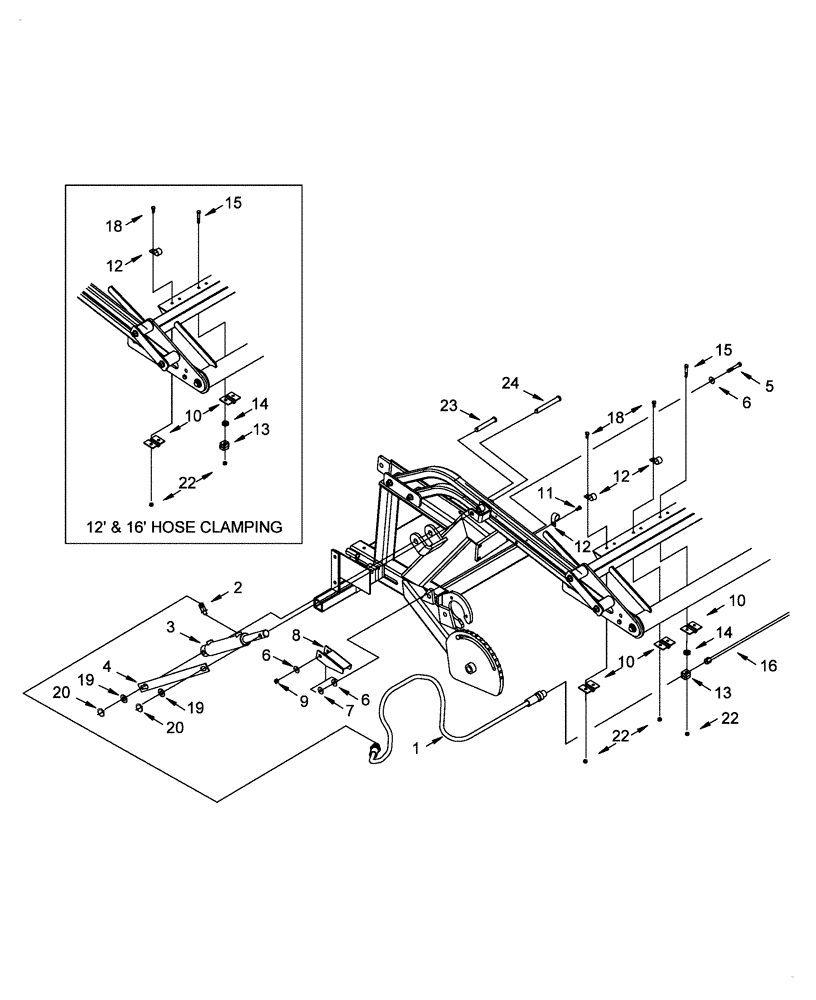

Запчасти Case IH 2016 (20.11[02]) - HOLD DOWN, HYDRAULIC LIFT, RAKE TYPE, P.I.N. CAB010350 [CBC010026] & AFTER (58) - ATTACHMENTS/HEADERS

1

413635A1

HOSE

2шт.

2

374569A1

ELBOW UNION

Union Elbow #6 MORB x #6 MJIC

2шт.

3

413650A1

CYLINDER,Double Acting, 254mm Stroke

Master, 3000 PSI, 1-1/2 " x 10", LH, See 20.12

1шт.

3

87423619

CYLINDER

Slave, 3000 PSI, 1-1/4" x 10", RH, See 20.12

1шт.

4

NS

NOT SERVICED

For Shipping Purposes

2шт.

5

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

6шт.

7

374328A1

WASHER

Neoprene, 3/8" x 1-1/8" x 1/16"

2шт.

8

448680A1

SHIELD

Safe Lock

2шт.

9

9637692

NUT,3/8"-16, Gr B

2шт.

10

87642415

CLIP

6шт.

11

377773A1

SCREW,Hex, #14 x 19mm

#14 x 3/4" Sheet Metal

3шт.

12

413662A1

HOSE CLAMP

Hose Clamp, 9/16", Vinyl Cover

6шт.

13

413632A1

CLAMP

Pipe Clamp

5шт.

14

87372633

SPACER

5шт.

15

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

5шт.

16

413633A1

HYD TUBE

12 Ft

1шт.

16

413634A1

TUBE

14 Ft

1шт.

16

87448946

TUBE,7.747 mm ID x 9.525/0.375 mm OD x 3810 mm L

16 Ft

1шт.

18

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

19

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

4шт.

20

341198A1

PIN

Lynch

4шт.

22

86521605

FLANGE NUT,5/16"-18, Cl 5

6шт.

23

352621A1

CLEVIS PIN

5/8" x 4"

2шт.

24

87522306

CLEVIS PIN

5/8" x 5"

2шт.
