Запчасти Case IH 2016 (20.11[01]) - HOLD DOWN, HYDRAULIC LIFT, BELT OR RAKE TYPE, P.I.N. CAB010350 [CBC010026] & PRIOR (58) - ATTACHMENTS/HEADERS

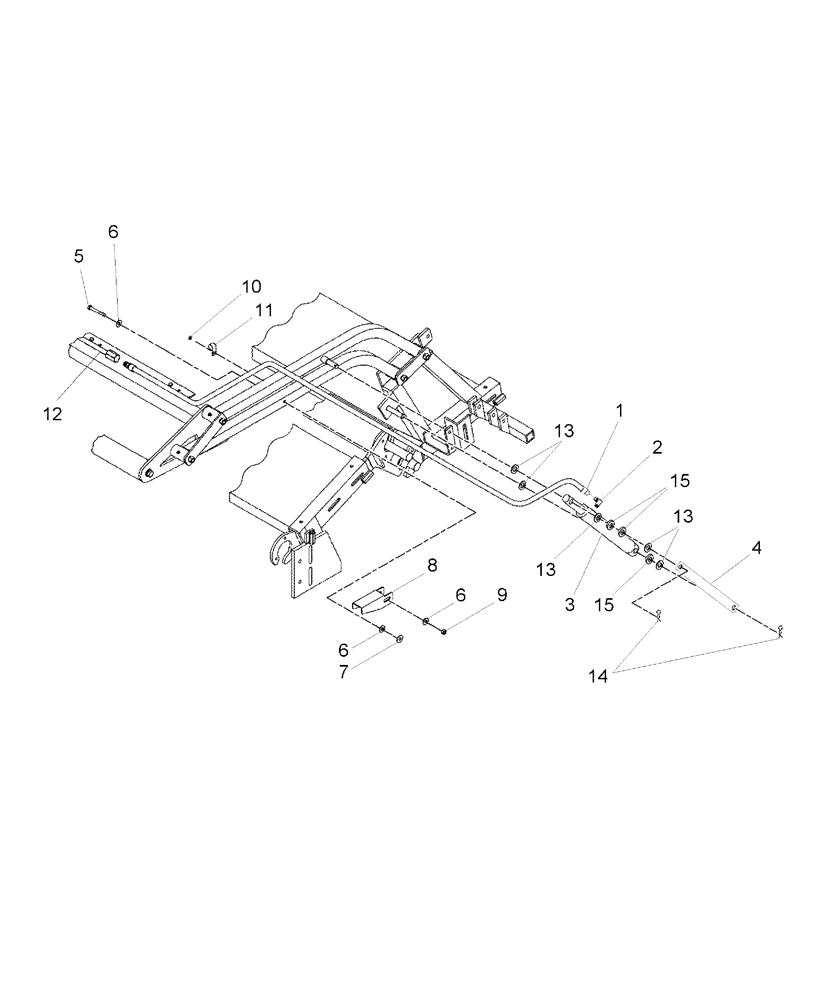

Схема запчастей Case IH 2016 - (20.11[01]) - HOLD DOWN, HYDRAULIC LIFT, BELT OR RAKE TYPE, P.I.N. CAB010350 [CBC010026] & PRIOR (58) - ATTACHMENTS/HEADERS
15
7
8
15
13
3
10
13
6
6
11
4
6
1
2
5
13
12
9
14

Артикул

Название

Примечание

Количество

1

413635A1

HOSE

2шт.

2

374569A1

ELBOW UNION

Union Elbow

2шт.

3

413650A1

CYLINDER,Double Acting, 254mm Stroke

Master, 3000 PSI, 1-1/2 x 10

1шт.

3

87423619

CYLINDER

Slave, 3000 PSI, 1-1/4 x 10

1шт.

4

373964A1

BRACE

2шт.

5

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

6шт.

7

374328A1

WASHER

Neoprene, 3/8" x 1-1/8" x 1/16"

2шт.

8

448680A1

SHIELD

Safe Lock, Hold Down

2шт.

9

9637692

NUT,3/8"-16, Gr B

2шт.

10

377773A1

SCREW,Hex, #14 x 19mm

#14, 3/4", Sheet Metal

3шт.

11

413662A1

HOSE CLAMP

Hose Clamp, Vinyl, 9/16", 12 Ft & 16 Ft Header

5шт.

11

413662A1

HOSE CLAMP

Hose Clamp, Vinyl, 9/16", 14 Ft Belt

6шт.

11

413662A1

HOSE CLAMP

Hose Clamp, Vinyl, 9/16", 14 Ft Rakeup

7шт.

12

413633A1

HYD TUBE

Steel Line Hold Down, 12 Ft Header

1шт.

12

413634A1

TUBE

Steel Line Hold Down, 14 Ft Header

1шт.

12

87448946

TUBE,7.747 mm ID x 9.525/0.375 mm OD x 3810 mm L

Steel Line Hold Down, 16 Ft Header

1шт.

13

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

11шт.

14

1978737C1

COTTER PIN,Int, 1/8" x 49mm

1/8" x 2-9/16"

4шт.

15

87451995

WASHER

5/8" x 7/8" x 3/16"

8шт.

Выбрано товаров: 20
