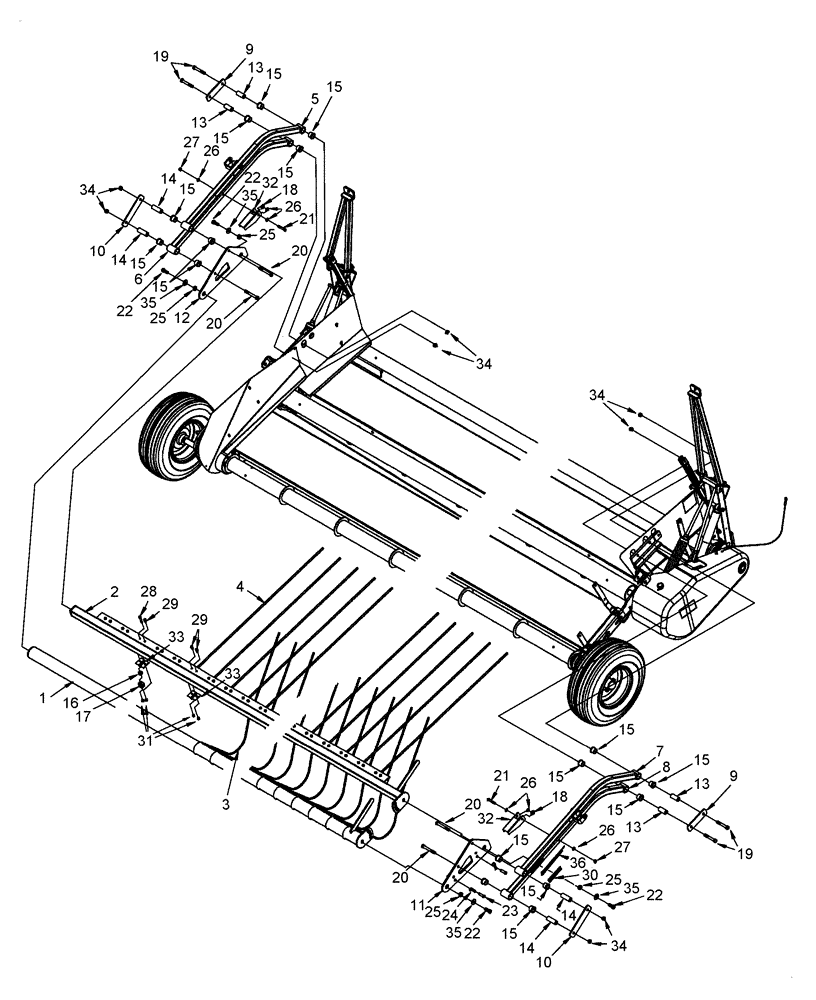

Запчасти Case IH 2016 (20.10[03]) - HOLD DOWN, HYDRAULIC, BELT TYPE [SWATHMASTER], P.I.N. CAB010350 [CBC010026]& AFTER (58) - ATTACHMENTS/HEADERS

1

87476904

TUBE,3485 mm L

Wire Tube, 12 Ft

1шт.

1

87372565

TUBE,3883 mm L

Wire Tube, 14 Ft

1шт.

1

87476905

TUBE,4365.6 mm L

Wire Tube, 16 Ft

1шт.

2

87372566

SPRING

Fiber Glass Rod, 12 Ft

1шт.

2

87372569

TUBE,3889 mm L

Fiber Glass Rod, 14 Ft

1шт.

2

87372571

TUBE,4366 mm L

Fiber Glass Rod, 16 Ft

1шт.

3

373949A1

WIRE

WIRE 12Ft

11шт.

3

373949A1

WIRE

WIRE 14 Ft

12шт.

3

373949A1

WIRE

WIRE 16 Ft

14шт.

4

374172A1

ROD

Fiberglass, 3/8" x 48", 12 Ft

21шт.

4

374172A1

ROD

Fiberglass, 3/8" x 48", 14 Ft

23шт.

4

374172A1

ROD

Fiberglass, 3/8" x 48", 16 Ft

27шт.

5

87685330

ARM ASSY.

Upper, RH-No Decal

1шт.

6

87494146

ARM ASSY.

Lower, RH, W/3-Panel Decal

1шт.

6

87735717

ARM ASSY.

Lower, RH, W/2-Panel Wordless Decal

1шт.

7

87685329

ARM ASSY.

Upper, LH-No Decal

1шт.

8

87494145

ARM ASSY.

Upper, LH, W/3-Panel Decal

1шт.

8

87735716

ARM ASSY.

Lower, LH, W/2-Panel Wordless Decal

1шт.

9

373953A1

PLATE

Rear

2шт.

10

373954A1

PLATE

Front

2шт.

11

87372165

PLATE

Adjusting Side

1шт.

12

373966A1

PLATE

Side

1шт.

13

87372162

BUSHING

Short

4шт.

14

87372163

BUSHING

Long

4шт.

15

87372164

BUSHING,25.96mm ID x 32mm OD x 25.4mm L

Flange

16шт.

16

87372633

SPACER

5шт.

17

413632A1

CLAMP

3/8" Pipe Clamp, Pair, Drilled

5шт.

18

374328A1

WASHER

Neoprene, 3/8" x 1.1" x 11/16"

2шт.

19

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

4шт.

20

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

4шт.

21

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

22

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

23

86636812

CLEVIS PIN,1/2" x 1.53"

1/2" x 1-1/2"

2шт.

24

1978737C1

COTTER PIN,Int, 1/8" x 49mm

1/8" x 2-9/16"

2шт.

25

373941A1

BUSHING

4шт.

26

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

6шт.

27

9637692

NUT,3/8"-16, Gr B

2шт.

28

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

5шт.

29

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12 Ft

37шт.

29

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14 Ft

41шт.

29

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

16 Ft

49шт.

30

87749382

DECAL

Warning, Safety Lock, 3-Panel Decal

2шт.

30

87735715

DECAL

2-Panel Wordless Decal

2шт.

31

86521605

FLANGE NUT,5/16"-18, Cl 5

12 Ft

42шт.

31

86521605

FLANGE NUT,5/16"-18, Cl 5

14 Ft

46шт.

31

86521605

FLANGE NUT,5/16"-18, Cl 5

16 Ft

54шт.

32

448680A1

SHIELD

Safe Lock

2шт.

33

87642415

CLIP

12 Ft

21шт.

33

87642415

CLIP

14 Ft

23шт.

33

87642415

CLIP

16 Ft

27шт.

34

9636698

NUT,1/2"-13, GB

8шт.

35

87532623

CONE WASHER

Conical, M12

4шт.

36

442687A1

DECAL

Swathmaster, White, 1-1/8"

2шт.
