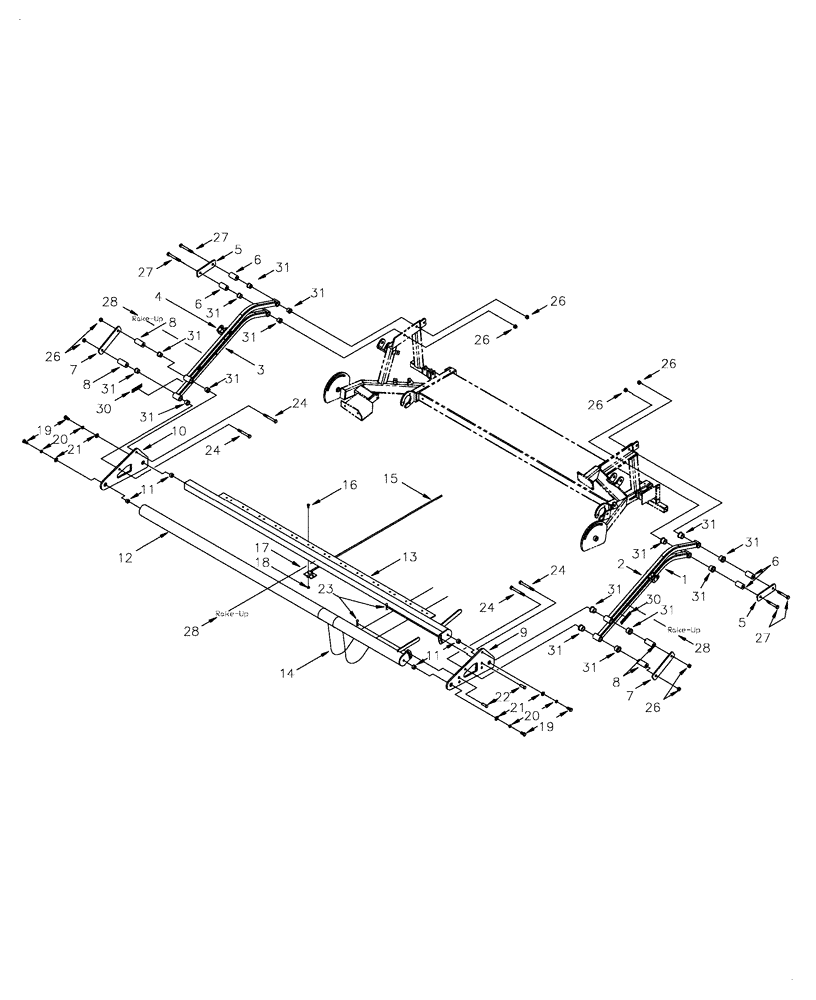

Запчасти Case IH 2016 (20.10[02]) - HOLD DOWN, HYDRAULIC, RAKE TYPE, PIN CAB010350 [CBC010026] & AFTER (58) - ATTACHMENTS/HEADERS

1

87494145

ARM ASSY.

Lower, LH, W/3-Panel Decal

1шт.

1

87735716

ARM ASSY.

Lower, LH, W/2-Panel Decal Wordless

1шт.

2

87685329

ARM ASSY.

Upper, LH, No Decals

1шт.

3

87494146

ARM ASSY.

Lower, RH, W/3-Panel Decal

1шт.

3

87735717

ARM ASSY.

Lower, RH, W/2-Panel Decal Wordless

1шт.

4

87685330

ARM ASSY.

Upper, RH, No Decals

1шт.

5

373953A1

PLATE

Rear

2шт.

6

87372162

BUSHING

Short

4шт.

7

373954A1

PLATE

Front

2шт.

8

87372163

BUSHING

Long

4шт.

9

87372165

PLATE

Adjusting Side

1шт.

10

373966A1

PLATE

Side

1шт.

11

373941A1

BUSHING

4шт.

12

87372154

TUBE,3619.5 mm L

Spring Wire, 12 Ft

1шт.

12

87722962

TUBE,4102.1 mm L

Spring Wire, 14 Ft

1шт.

12

87372155

TUBE,4584.7 mm L

Spring Wire, 16 Ft

1шт.

13

87494144

ROD ASSY.

Fiber Rod, 12 Ft, With No Decal

1шт.

13

87372158

TUBE,4102 mm L

Fiber Rod, 14 Ft, With No Decal

1шт.

13

87372159

TUBE,4585 mm L

Fiber Rod, 16 Ft, With No Decal

1шт.

14

373949A1

WIRE

WIRE 12 Ft

11шт.

14

373949A1

WIRE

WIRE 14 Ft

13шт.

14

373949A1

WIRE

WIRE 16 Ft

14шт.

15

374172A1

ROD

12 Ft, 3/8" x 48"

21шт.

15

374172A1

ROD

14 Ft, 3/8" x 48"

24шт.

15

374172A1

ROD

16 Ft, 3/8" x 48"

27шт.

16

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12 Ft

42шт.

16

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14 Ft

48шт.

16

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

16 Ft

54шт.

17

87642415

CLIP

12 Ft

21шт.

17

87642415

CLIP

14 Ft

24шт.

17

87642415

CLIP

16 Ft

27шт.

18

86521605

FLANGE NUT,5/16"-18, Cl 5

12 Ft

42шт.

18

86521605

FLANGE NUT,5/16"-18, Cl 5

14 Ft

48шт.

18

86521605

FLANGE NUT,5/16"-18, Cl 5

16 Ft

54шт.

19

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

21

NLS

NO LONGER SERVICED

Not Required

4шт.

20

87532623

CONE WASHER

Conical, M12

4шт.

22

86636812

CLEVIS PIN,1/2" x 1.53"

1/2" x 1-1/2"

2шт.

23

1978737C1

COTTER PIN,Int, 1/8" x 49mm

1/8" x 2-9/16"

2шт.

24

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

4шт.

26

9636698

NUT,1/2"-13, GB

8шт.

27

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

4шт.

28

442688A1

DECAL

RAKE-UP, 1-1/8" White

2шт.

30

87749382

DECAL

Warning, Safety Lock, 3-Panel

2шт.

30

87735715

DECAL

2-Panel, Wordless

2шт.

31

87372164

BUSHING,25.96mm ID x 32mm OD x 25.4mm L

16шт.
