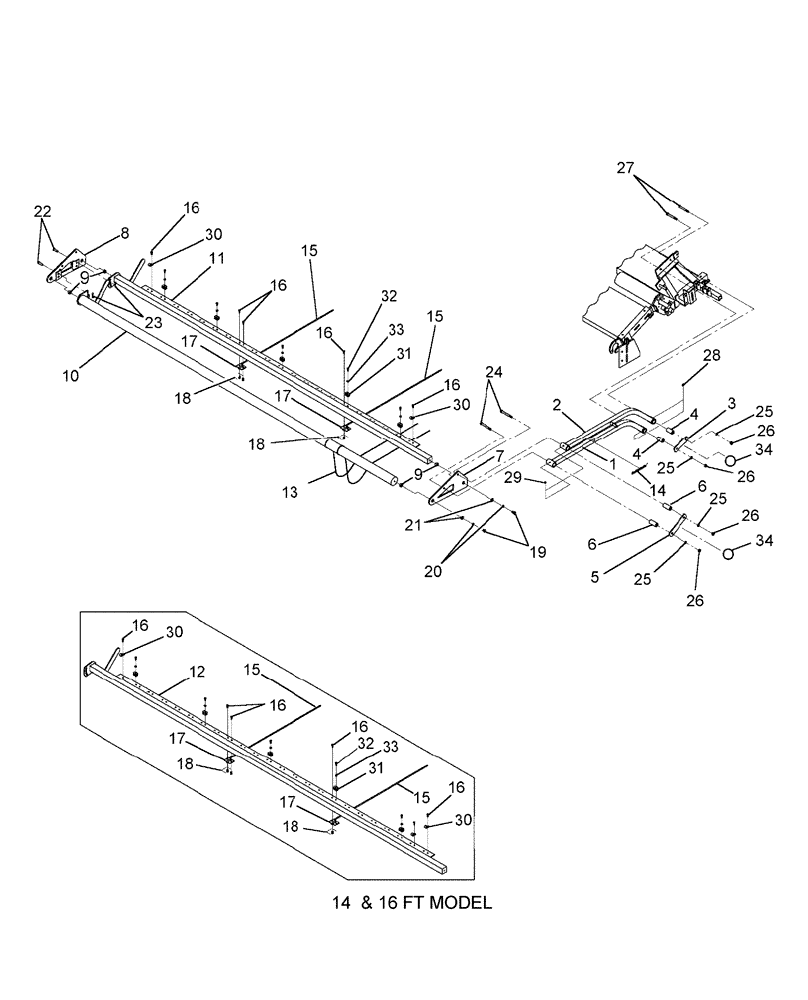

Запчасти Case IH 2016 (20.10[01]) - HOLD DOWN, HYDRAULIC, BELT TYPE OR RAKE TYPE, BPIN CAB010350 [CBC010035] (58) - ATTACHMENTS/HEADERS

1

87481050

ARM

LH Lower Holddown, W/Decal

1шт.

1

87481096

ARM

RH Lower Holddown, W/Decal

1шт.

2

448510A1

ARM ASSY.

LH Upper, W/Decal, Rake Up

1шт.

2

448513A1

ARM ASSY.

LH Upper, W/Decal, Belt [Swathmaster]

1шт.

2

448511A1

ARM ASSY.

RH Upper, W/Decal, Rake Up

1шт.

2

448514A1

ARM ASSY.

RH Upper, W/Decal, Belt [Swathmaster]

1шт.

3

373953A1

PLATE

Rear Hold Down, W/Decal 84334829

2шт.

4

373961A1

BUSHING

Short, Hold Down

4шт.

5

373954A1

PLATE

Hold Down, W/Decal 84334829

2шт.

6

373962A1

BUSHING

Long, Hold Down

4шт.

7

373966A1

PLATE

LH Side

1шт.

8

373965A1

PLATE

RH Side

1шт.

9

373941A1

BUSHING

Holddown Bracket

4шт.

10

374026A1

TUBE,3406.8 mm Length

Wire, 12 Ft, Belt Type

1шт.

10

374027A1

TUBE,3889.4 mm Length

Wire, 14 Ft, Belt Type

1шт.

10

87433446

TUBE,4372 mm L

Wire, 16 Ft, Belt Type

1шт.

10

373951A1

TUBE,3619.5 mm Length

Wire, 12 Ft, Rake Type

1шт.

10

373952A1

TUBE,4102.1 mm Length

Wire, 14 Ft, Rake Type

1шт.

10

87448945

TUBE,4584.7 mm L

Wire, 16 Ft, Rake Type

1шт.

11

374028A1

TUBE

Fiberglass Rod, 12 Ft, Belt Type

1шт.

11

373955A1

TUBE

Fiberglass Rod, 12 Ft, Rake Type

1шт.

12

374029A1

TUBE

Fiberglass Rod, 14 Ft, Belt Type

1шт.

12

373956A1

TUBE

Fiberglass Rod, 14 Ft, Rake Type

1шт.

12

87433447

TUBE

Fiberglass Rod, 16 Ft, Belt Type

1шт.

12

87448944

TUBE,180.5 mm L

Fiberglass Rod, 16 Ft, Rake Type

1шт.

13

373949A1

WIRE

WIRE 12 Ft Rakeup & Belt

11шт.

13

373949A1

WIRE

WIRE 14 Ft Belt

12шт.

13

373949A1

WIRE

WIRE 14' Rake

13шт.

13

373949A1

WIRE

WIRE 16' Rakeup & Belt

14шт.

14

442687A1

DECAL

Belt Type, Swathmaster

2шт.

14

442688A1

DECAL

Rake Type, Rake Up

2шт.

15

374172A1

ROD

12'

21шт.

15

374172A1

ROD

14' Belt

23шт.

15

374172A1

ROD

14' Rakeup

24шт.

15

374172A1

ROD

16' Belt/Rakeup

27шт.

16

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12'

37шт.

16

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14' Belt type

41шт.

16

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14' Rakeup

43шт.

16

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

16'

48шт.

17

373950A1

CLIP

Fiberglass, Rod Retaining, 12'

21шт.

17

373950A1

CLIP

Fiberglass, Rod Retaining, 14' Belt

23шт.

17

373950A1

CLIP

Fiberglass, Rod Retaining, 14' Rakeup

24шт.

17

373950A1

CLIP

Fiberglass, Rod Retaining, 16'

27шт.

18

9635082

NUT,5/16" - 18, Gr 5

12'

42шт.

18

9635082

NUT,5/16" - 18, Gr 5

14'

43шт.

18

9635082

NUT,5/16" - 18, Gr 5

16'

48шт.

18

80681

LOCK WASHER,5/16"

12'

42шт.

18

80681

LOCK WASHER,5/16"

14'

43шт.

18

80681

LOCK WASHER,5/16"

16'

48шт.

19

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

21

86636809

WASHER

1/2"

4шт.

22

86636812

CLEVIS PIN,1/2" x 1.53"

1/2" x 1-1/2"

2шт.

23

1978737C1

COTTER PIN,Int, 1/8" x 49mm

1/8"

2шт.

24

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

4шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

26

280431

NUT,1/2"-13, G5

8шт.

27

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

28

86585176

LUBE NIPPLE,90 Degree, 1/4" NPT x .75" lg

4шт.

29

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

4шт.

30

413662A1

HOSE CLAMP

12', 16'

5шт.

30

413662A1

HOSE CLAMP

14'

6шт.

31

413632A1

CLAMP

3/8"

5шт.

32

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

10шт.

33

87362

WASHER,5/16" SAE

10шт.

34

84334829

DECAL

50 Hour Grease

1шт.
