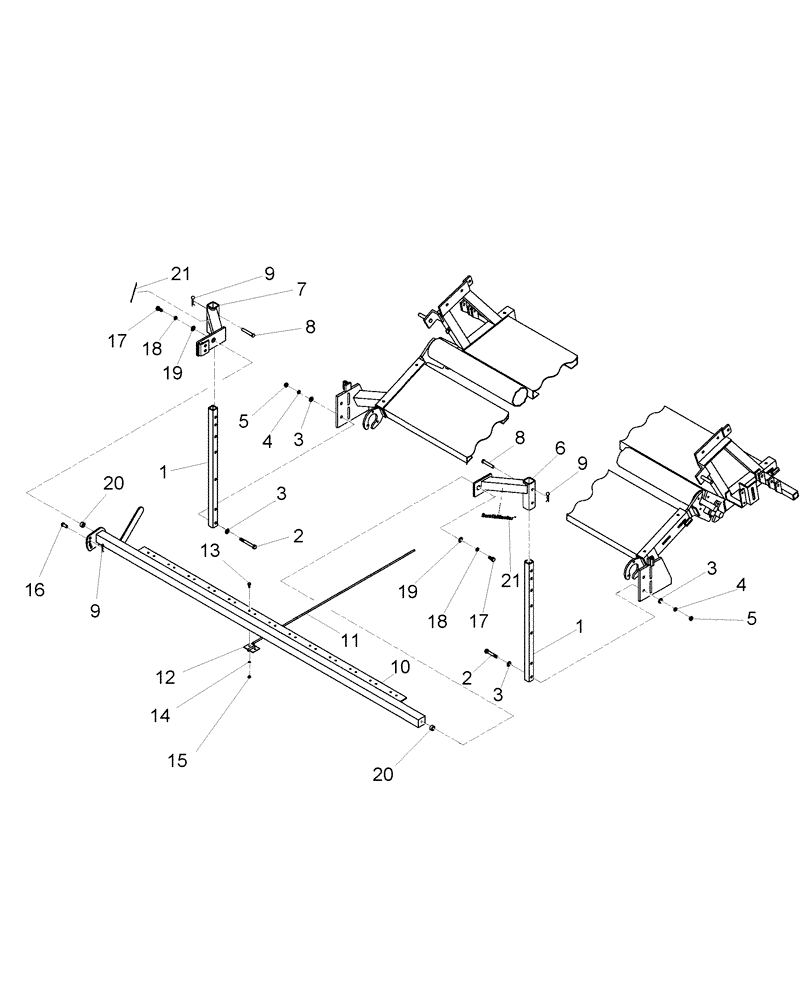

Запчасти Case IH 2016 (20.09) - HOLD DOWN, MECHANICAL, BELT TYPE [SWATHMASTER] (58) - ATTACHMENTS/HEADERS

1

448682A1

ARM ASSY.

Upright

2шт.

2

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

3

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

8шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

5

280431

NUT,1/2"-13, G5

4шт.

6

448683A1

BRACKET

Holddown, LH, W/Decal

1шт.

7

448684A1

BRACKET

Holddown, RH, W/Decal

1шт.

8

86837477

CLEVIS PIN,12.7mm OD x 57.15mm L

2шт.

9

1978737C1

COTTER PIN,Int, 1/8" x 49mm

3шт.

10

374028A1

TUBE

Fiberglass Rod, 12'

1шт.

10

374029A1

TUBE

Fiberglass Rod, 14'

1шт.

11

374172A1

ROD

Fiberglass, 12'

21шт.

11

374172A1

ROD

Fiberglass, 14'

24шт.

12

373950A1

CLIP

Fiberglass Retainer, 12'

21шт.

12

373950A1

CLIP

Fiberglass Retainer, 14'

24шт.

13

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12'

37шт.

13

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14'

43шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12'

42шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

14'

48шт.

15

425-105

NUT,5/16"-18, G5

12'

42шт.

15

425-105

NUT,5/16"-18, G5

14'

48шт.

16

86636812

CLEVIS PIN,1/2" x 1.53"

1шт.

17

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

19

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

20

373941A1

BUSHING

2шт.

21

436098A1

DECAL

SwathMaster

2шт.
