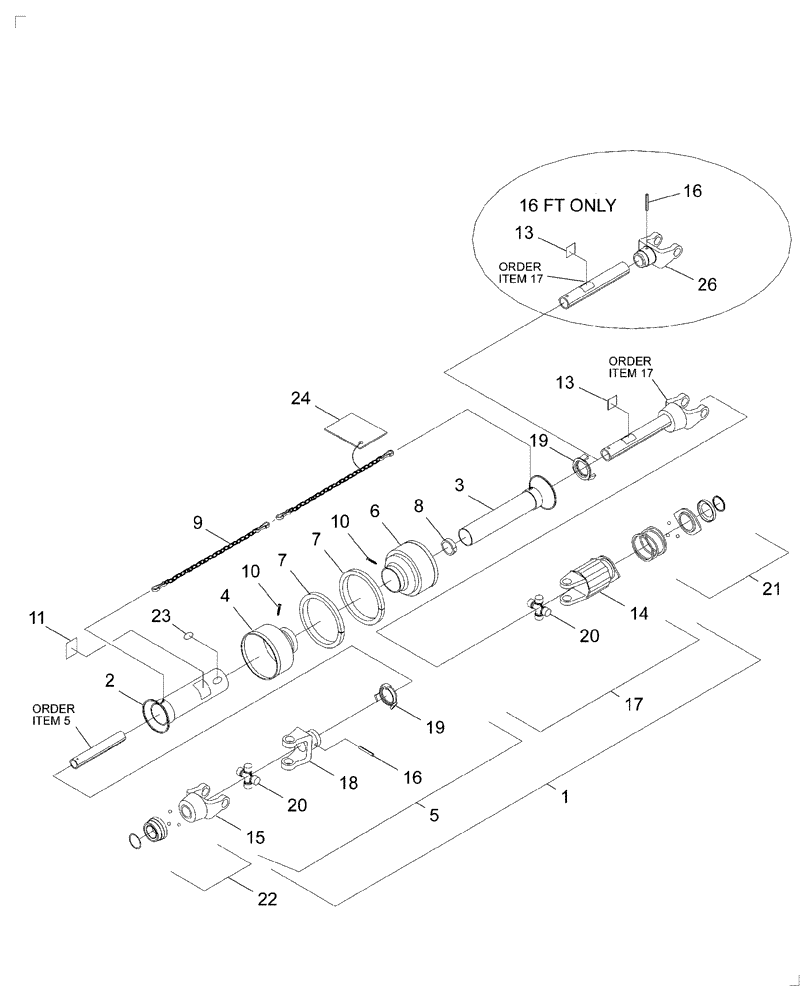

Запчасти Case IH 2016 (20.07[02]) - DRIVE SHAFT, P.I.N.PMN002173 [PNU0002011] TO PPP003801 (58) - ATTACHMENTS/HEADERS
![Схема запчастей Case IH 2016 - (20.07[02]) - DRIVE SHAFT, P.I.N.PMN002173 [PNU0002011] TO PPP003801 (58) - ATTACHMENTS/HEADERS](https://partsell.ru/storage/images/caseih/1044117.png)
№
Артикул
Название
Примечание
Количество
1
87532572
DRIVE SHAFT
12', 14' W/40" Feed Opening
1шт.
1
87532573
DRIVE SHAFT
12', 14' W/50"-60" Feed Opening
1шт.
1
87532574
DRIVE SHAFT
16' All Feed Openings
1шт.
2
84139605
OUTER SHIELD
Outer, 12', 14' W/50"-60" Feed Opening
1шт.
2
84139604
OUTER SHIELD
12' & 14' W/40" Feed Opening
1шт.
2
84147690
SHIELD
Outer, 16' All Openings
1шт.
3
389032A1
SHIELD
Inner, 12', 14", 40" Opening
1шт.
3
87433423
SHIELD
Inner, 12', 14', 50"-60" Opening
1шт.
3
87551248
SHIELD
Inner, 16' All Openings
1шт.
4
87433421
SHIELD
Cone, 7 Rib
1шт.
5
84147696
DRIVE ASSY.
Half, Combine End, 12' & 14' W/40" Opening
1шт.
5
84147694
DRIVE ASSY.
Half, Combine End, 12' & 14' W/50"-60" Opening
1шт.
5
84147692
DRIVE ASSY.
Half, Combine End, 16' All Openings
1шт.
6
87432435
SHIELD
Cone, 5 Rib Black
1шт.
7
80564C1
COLLAR
Reinforcing
2шт.
8
1281454C1
SUPPORT
Bearing
1шт.
9
379650
CHAIN
2шт.
10
87432438
SCREW
2шт.
11
849471
DANGER DECAL
Rotating Drive Line
1шт.
13
1326528C1
DECAL
Missing Guard
1шт.
14
389015A1
CLUTCH ASSEMBLY
850 N-m
1шт.
14
700703406
CAM
24шт.
14
700703408
SPRING
Outer
24шт.
14
297908A1
SPRING
Inner
11шт.
14
298004A1
RING
1шт.
15
389386A1
YOKE
1-3/8"-Z6, QD, W
1шт.
16
30907R1
LOCK PIN,M10 x 70, Slotted
2шт.
17
84147695
DRIVE ASSY.
Half, Header End, 12', 14', Feed Opening
1шт.
17
84147693
DRIVE ASSY.
Half, Header End, 12', 14', 50"60" Feed Opening
1шт.
17
84147691
DRIVE ASSY.
Half, Header End, 16' Feed Opening
1шт.
18
389011A1
LINKAGE YOKE
W/Shaft
1шт.
19
1281450C1
RING
Bearing
2шт.
20
87433419
KIT
Repair, Cross
2шт.
21
87547C1
KIT
Repair, Quick Disconnect
1шт.
22
389033A1
KIT
Repair, Disconnect Slide
1шт.
23
87432434
DECAL
CE Mark
1шт.
24
NS
NOT SERVICED
Instruction Manual
1шт.
26
389014A1
LINKAGE YOKE
Clutch End, 12', 14', 16' 40" Feed Openings
1шт.
700707556
NIPPLE, LUBE
Not Shown
1шт.
Выбрано товаров: 39
