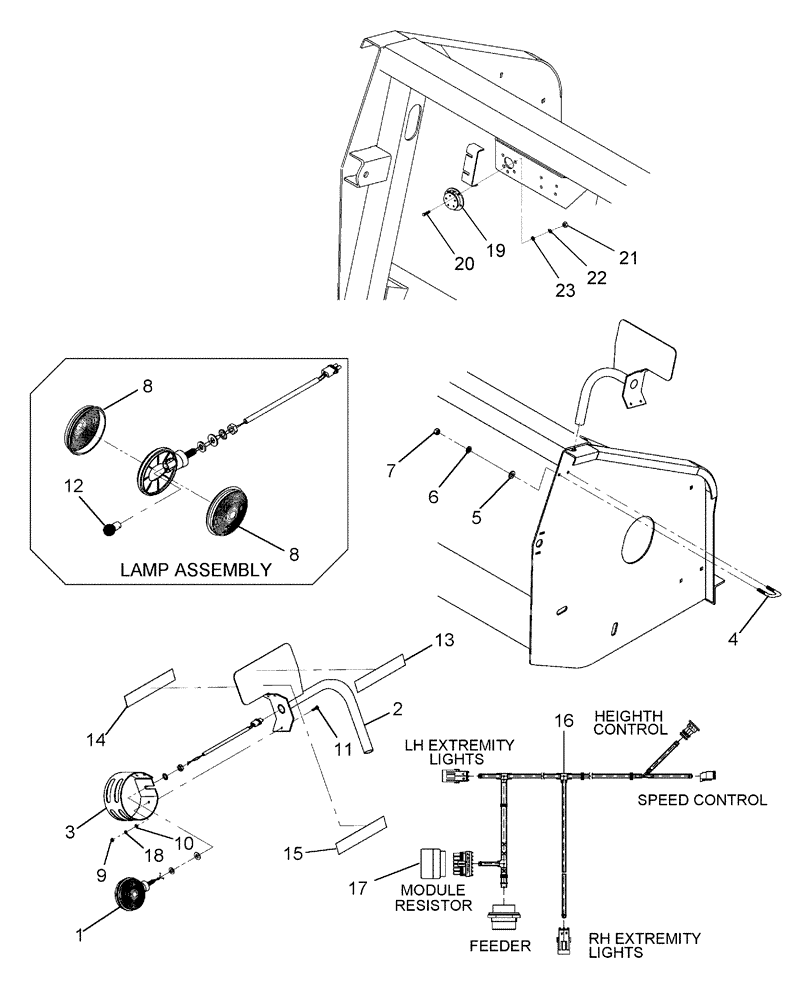

Запчасти Case IH 2016 (55.795.01) - ELECTRICAL / LIGHTING (55) - ELECTRICAL SYSTEMS

1

440403A1

LAMP

2шт.

2

86989894

BRACKET

Light, Left Hand, W/Decals

1шт.

2

86989895

BRACKET

Light, Right Hand, W/Decals

1шт.

3

86989890

SHIELD

Extremity Light Shield

2шт.

4

374331A1

U-BOLT

BOLT "U" M8 x 1.25, W37mm x L55mm

2шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

6

892-11008

LOCK WASHER,8mm ID

4шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

8

376901A1

LENS

Amber

4шт.

9

829-1406

NUT,Hex, M6 x 1, Cl 10.9

6шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

11

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

6шт.

12

376902A1

LENS

Bulb

2шт.

13

311863A1

REFLECTOR

Decal, Red

1шт.

14

311864A1

REFLECTOR

Decal, Yellow

1шт.

15

311865A1

REFLECTOR

Decal, Orange

1шт.

16

87424059

HARNESS

Wire Assembly, 12 & 14 Ft

1шт.

16

87433445

HARNESS

Wire Assembly, 16 Ft

1шт.

17

86837775

RESISTOR

Header Recognition Module

1шт.

18

892-11006

LOCK WASHER,M6

6шт.

19

86606228

COVER

Dust, HD Box Series

1шт.

20

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

5шт.

21

86508813

NUT,M5, Cl 8

5шт.

22

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

5шт.

23

140014

WASHER,M5 x 10mm OD x 1mm Thk

5шт.
