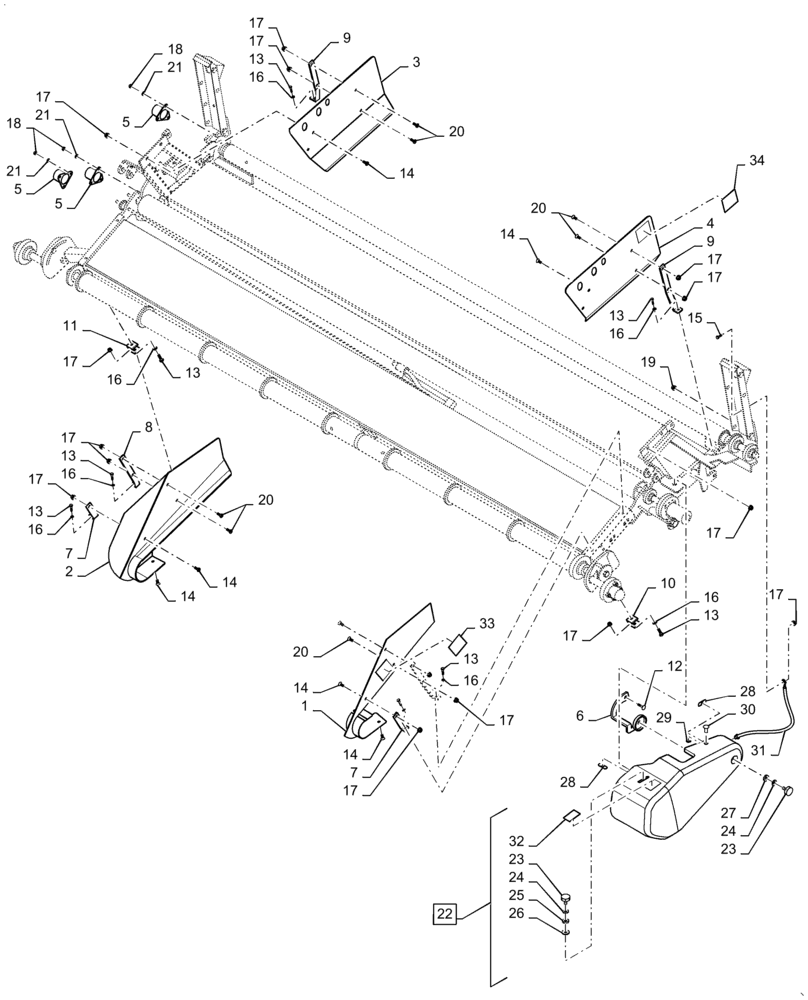

Запчасти Case IH 2016 (60.220.11) - SHIELDS & GUARDS, SWATHMASTER (39) - FRAMES AND BALLASTING

1

87372560

SHIELD

Wind,Front Left Hand With Decal, 3 Panel

1шт.

North America

1шт.

1

87532580

GUARD

Wind,Front Left Hand With Decal, 2 Panel

1шт.

Europe

1шт.

2

87372563

SHIELD

Wind,Front Right Hand With Decal, 3 Panel

1шт.

North America

1шт.

2

87532581

GUARD

Wind,Front Right Hand With Decal, 2 Panel

1шт.

Europe

1шт.

3

86989885

WINDGUARD

Rear, Right Hand With Decal, 3 Panel

1шт.

North America

1шт.

3

446292A1

WINDGUARD

Rear, Right Hand With Decal, 2 Panel

1шт.

Europe

1шт.

4

86989886

WINDGUARD

Rear, Left Hand With Decal, 3 Panel

1шт.

North America

1шт.

4

446291A1

WINDGUARD

Rear, Left Hand With Decal, 2 Panel

1шт.

Europe

1шт.

5

376885A1

BEARING COVER

Bearing

3шт.

6

87372622

BRACKET

Rear Shield

1шт.

7

87642420

BRACKET

Front Windguard

2шт.

8

87642419

BRACKET

Windguard

2шт.

9

373895A1

BRACKET

Windguard, Rear

2шт.

10

87532559

BRACKET

Lower, Left Hand

2шт.

11

87532561

BRACKET

Lower, Right Hand

1шт.

12

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

1шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

14

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

5/16" x 3/4", Truss

6шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

17

483303R1

LOCK NUT

5/16"

15шт.

18

231-4246

LOCK NUT,3/8"-16, GB

Qty 8, 12 Ft Grass Seed

9шт.

18

86509499

JAM NUT,3/8"-16, G2

Front Roller Rear Frame, 12 Ft Grass seed

9шт.

19

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

20

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

8шт.

21

495-21044

WASHER,3/8"

9шт.

22

87372558

SHIELD

Inc. 23 - 32, 3 Panel

1шт.

22

87532578

SHIELD

Grey, Inc. 23 - 32, 2 Panel

1шт.

23

87372658

KNOB

2шт.

24

492-11031

LOCK WASHER,5/16"

2шт.

25

495-11034

WASHER,5/16", SAE

1шт.

26

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

2шт.

27

87372623

BUSHING

Rear Shield Pivot

1шт.

28

87532624

NUT

5/16"

2шт.

29

374327A1

WASHER

1шт.

30

151-570

RIVET,Pop, 1/4" x 3/4"

2шт.

31

86989903

CABLE

Shield Anchor

1шт.

32

86626958

WARNING DECAL

Do Not Open, 3 Panel, English

1шт.

North America

1шт.

32

144373A1

WARNING DECAL

Do Not Open, Chain Entanglement, ISO Non-Verbal

1шт.

Europe

1шт.

33

86996879

DECAL

Danger, Pinch Point, 3 Panel

1шт.

North America

1шт.

33

278215A1

DECAL

Danger, Pinch Point, ISO Non-Verbal

1шт.

Europe

1шт.

34

86989680

DECAL

Attention, Storage Brace, 3 Panel

1шт.

North America

1шт.

34

446299A1

DECAL

Attention, Storage Brace, ISO Non-Verbal

1шт.

Europe

1шт.

35

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.
