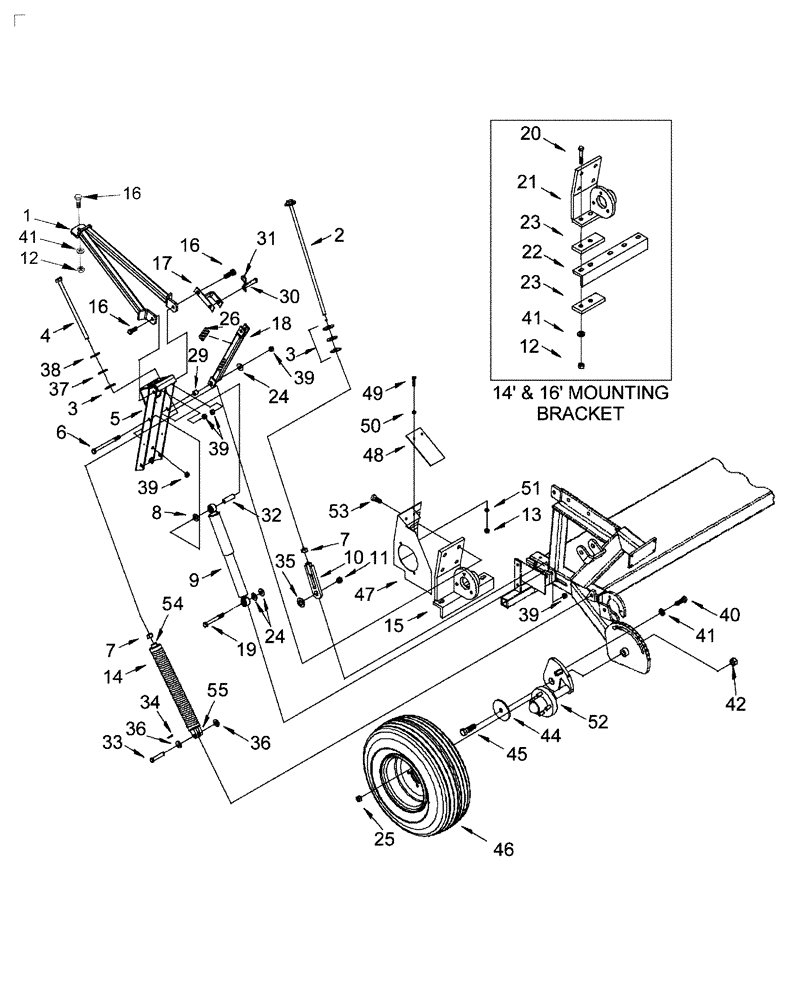

Запчасти Case IH 2016 (20.28[02]) - MAIN FRAME, RAKE TYPE, PIN PMN003045 [PNP002010] AND AFTER (39) - FRAMES AND BALLASTING

1

374078A1

BRACE

12 Ft RH, 14 & 16 Ft LH

1шт.

1

374079A1

BRACE

12 Ft LH, 14 & 16 Ft RH

1шт.

2

373982A1

BOLT

Lifter Adjustment

2шт.

3

373938A1

STOP

Rubber

8шт.

4

87303012

BOLT,Hex, 5/8" - 11 x 14", Gr 5

2шт.

5

87451998

CHANNEL

3/4" Bolt Hole

2шт.

6

9627857

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

2шт.

7

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

8

374626A1

WASHER

1-1/4" x 17/32" x 1/4"

4шт.

9

374171A1

SHOCK ABSORBER

2шт.

10

87532555

BRACKET

Lifter

2шт.

11

373940A1

BUSHING

Lifter Bracket

2шт.

12

280431

NUT,1/2"-13, G5

6шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

14

87635823

SPRING

W/O Plugs, See Ref 54 & 55

2шт.

15

87635733

BRACKET

LH, (On Cutter Bar), 12 Ft

1шт.

15

87635734

BRACKET

RH (On Cutter Bar), 12 Ft

1шт.

16

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

6шт.

17

373907A1

BRACE

Stiff Arm Clevis

2шт.

18

87452011

BRACE

Storage, LH, W/Yellow Bars Decal, Ref 26

1шт.

18

87452013

BRACE

Storage, RH, W/Yellow Bars Decal, Ref 26

1шт.

19

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

2шт.

20

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

4шт.

21

87372143

BRACKET

LH, (Below Cutter Bar), 14 & 16 Ft

1шт.

21

87372144

BRACKET

RH, (Below Cutter Bar), 14 & 16 Ft

1шт.

22

87642400

ANGLE

LH, (Below Cutter Bar)

1шт.

22

87642412

ANGLE

RH, (Below Cutter Bar)

1шт.

23

413630A1

SHIM

Mounting Bracket, (Below Cutter Bar)

4шт.

24

86636809

WASHER

6шт.

25

374570A1

WHEEL NUT

Wheel, 1/2" UNF

8шт.

26

87452006

DECAL

Notification, Yellow Bars

8шт.

29

373963A1

BUSHING

Stiff Arm

2шт.

30

27-8231

CLEVIS PIN,1/2" x 2 5/16"

1/2" x 1-5/16", Universal Clevis

2шт.

31

87532622

PIN

Grip Clip, 1/8" x 2-9/16"

2шт.

32

87408990

SPACER

Shock Mount

2шт.

33

86837477

CLEVIS PIN,12.7mm OD x 57.15mm L

2шт.

34

87673

COTTER PIN,1/8" x 1 3/4"

2шт.

35

87366

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

2шт.

36

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

37

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

38

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

2шт.

39

231-5348

FLANGE NUT,Flg, 1/2"-13

14шт.

40

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

41

87532623

CONE WASHER

Lock, 12mm

8шт.

42

280375

NUT,3/4"-10, GC

2шт.

44

87642414

PLATE

Retainer

2шт.

45

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

2шт.

46

See Figure 20.15 (03)

1шт.

47

376879A1

GUARD

Belt, Rear, RH

1шт.

48

376880A1

FLAP

Rear Belt Guard

1шт.

49

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

50

86636807

WASHER

1/4", Flat

2шт.

51

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

52

See Figure 20.15 (03)

1шт.

53

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

8шт.

54

87635742

PLUG

Insert, Top

2шт.

55

87635743

PLUG

Insert, Bottom Clevis

2шт.

280717

NUT,7/16"-14, G5

Not Shown, Ref 22 to Header Cutter Bar

6шт.

88586

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

Not Shown, Ref 22 to Header Cutter Bar

6шт.

87532623

CONE WASHER

Not Shown, Ref 22 to Header Cutter Bar

6шт.
