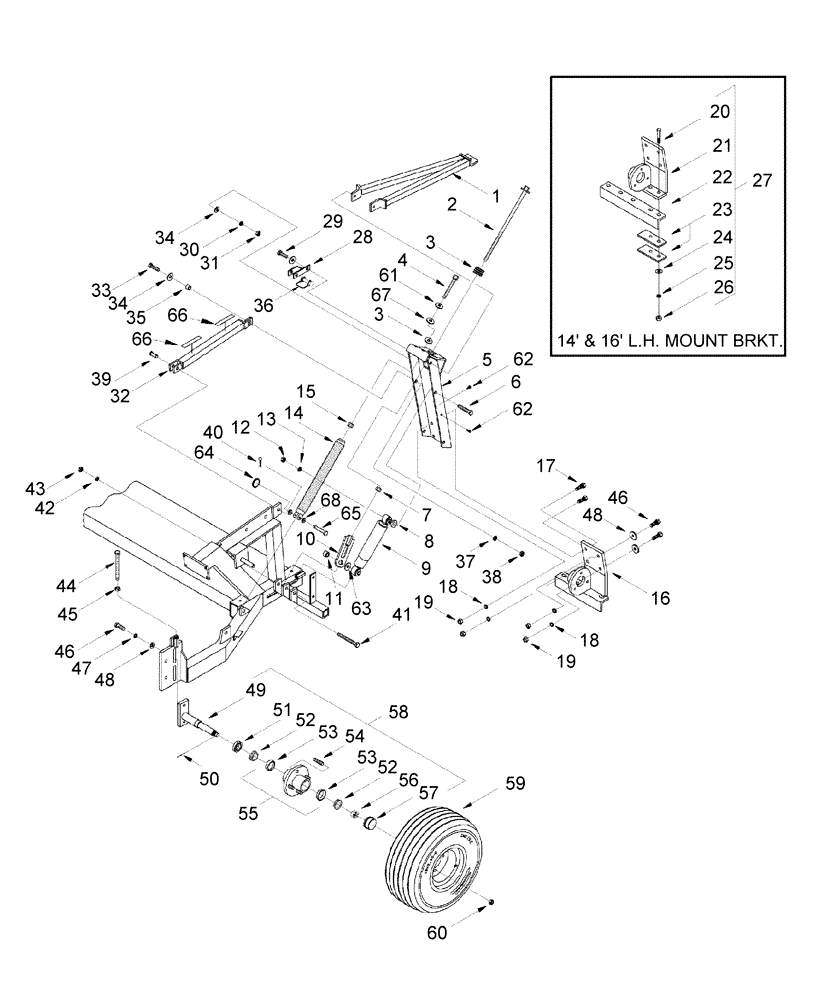

Запчасти Case IH 2016 (20.28[01]) - MAIN FRAME, RAKE TYPE, BPIN PMN003045 [PNP002010] (39) - FRAMES AND BALLASTING

1

374078A1

BRACE

12 Ft RH, 14 Ft LH, 16 Ft LH

1шт.

1

374079A1

BRACE

12 Ft LH, 14 Ft RH, 16 Ft RH

1шт.

2

373982A1

BOLT

Lifter Adjust

2шт.

3

373938A1

STOP

Rubber, (3) Each For Item 2

8шт.

4

373981A1

BOLT

HH, G5, 1/2"-13 x 12"

2шт.

BPIN PMN002375 (PNU002030, AUS)

1шт.

4

413-10192

BOLT,Hex, 5/8" - 11 x 12", Gr 5

2шт.

PIN PMN002375 (PNU002030, AUS) and after

1шт.

5

373903A1

CHANNEL

Upright

2шт.

BPIN PMN002375 (PNU002030, AUS)

1шт.

5

87451998

CHANNEL

Upright, 3/4" Bolt Holes

2шт.

PIN PMN002375 (PNU002030, AUS) and after

1шт.

6

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

7

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

8

374626A1

WASHER

1-1/4" x 17/32" x 1/4"

2шт.

9

374171A1

SHOCK ABSORBER

2шт.

10

87532555

BRACKET

Nut Centered In Plate Slot, Was 373904A1, Nut Welded To Outer Edge

2шт.

11

373940A1

BUSHING

Lifter Bracket

2шт.

12

280431

NUT,1/2"-13, G5

2шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

14

373937A1

SPRING

Suspension, W/Plug

2шт.

BPIN PMN002375 (PNU002030, AUS)

1шт.

14

87451999

SPRING

Spring, W/Plugs

2шт.

PIN PMN002375 (PNU002030, AUS) and after

1шт.

14

87452000

SERVICE KIT

Suspension Spring Upgrade

1шт.

PIN PMN002375 (PNU002030, AUS) and after

1шт.

15

280431

NUT,1/2"-13, G5

2шт.

16

373890A1

BRACKET

Mounting, LH, On Cutter Bar

1шт.

16

373891A1

BRACKET

Mounting, RH, On Cutter Bar

1шт.

17

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

8шт.

18

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

19

280431

NUT,1/2"-13, G5

12шт.

20

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

4шт.

21

373899A1

BRACKET

Mounting, LH, Below Cutter Bar

1шт.

21

373900A1

BRACKET

Mounting, RH, Below Cutter Bar

1шт.

22

373897A1

ANGLE

Mounting, LH, Below Cutter Bar

1шт.

23

413630A1

SHIM

Mounting, Below Cutter Bar

4шт.

24

86636809

WASHER

1/2"

4шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

26

280431

NUT,1/2"-13, G5

4шт.

27

373892A1

BRACKET

Mounting, RH, Below Cutter Bar

1шт.

27

373893A1

BRACKET

Mounting, LH, Below Cutter Bar

1шт.

28

373907A1

BRACE

Storage Holder

2шт.

29

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

30

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

31

280431

NUT,1/2"-13, G5

2шт.

32

413631A1

BRACE

Storage

2шт.

BPIN PMN002375 (PNU002030, AUS)

1шт.

32

87452011

BRACE

Storage, LH

1шт.

PIN PMN002375 (PNU002030, AUS) and after

1шт.

32

87452013

BRACE

Storage, RH

1шт.

PIN PMN002375 (PNU002030, AUS) and after

1шт.

33

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

2шт.

34

86636809

WASHER

1/2"

4шт.

35

373963A1

BUSHING

Storage Brace

2шт.

36

390586A1

PIN

Lock, 3/8" x 2-1/4"

2шт.

37

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

38

280431

NUT,1/2"-13, G5

2шт.

39

413663A1

CLEVIS PIN

1/2" x 1-3/4"

2шт.

40

1978737C1

COTTER PIN,Int, 1/8" x 49mm

1/8"

2шт.

41

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

2шт.

42

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

43

280431

NUT,1/2"-13, G5

2шт.

44

373933A1

BOLT

Height Adjust

2шт.

45

280431

NUT,1/2"-13, G5

2шт.

46

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

47

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

48

86636809

WASHER

1/2"

4шт.

49

373935A1

SPINDLE

2шт.

50

86523956

COTTER PIN,5/32" x 1"

2шт.

51

374186A1

SEAL

2шт.

52

374125A1

ROLLER BEARING

4шт.

53

374123A1

BEARING CUP

4шт.

54

374166A1

STUD

8шт.

55

374165A1

HUB

Includes (2) 53, (4) 54

2шт.

56

374326A1

NUT

1"-12, Castellated

2шт.

57

374167A1

CAP

2шт.

58

373932A1

HUB ASSY.

Includes 49-57 and 60

2шт.

59

442598A1

WHEEL ASSY,457.2mm OD x 215.9mm W

Tire & Rim, 18 x 8.5 x 8

2шт.

59a

374168A1

TYRE/TIRE

TIRE, RUBBER 18 x 8.5 x 8, Turf

1шт.

59

442599A1

WHEEL ASSY

Tire & Rim, 18 x 8.5 x 8, Heavy Duty

2шт.

59b

442597A1

RIM

Rim, 8" x 7" x 4 Bolt

1шт.

59c

436096A1

TYRE/TIRE

TIRE, RUBBER 18 x 8.5 x 8, Heavy Duty

1шт.

59d

374169A1

TUBE

18/8.5-9.5 x 8, WTR-13 Valve

1шт.

60

374570A1

WHEEL NUT

Wheel, 1/2"-20

2шт.

61

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

Hardened, 1/2"

2шт.

BPIN PMN002375 (PNU002030, AUS)

1шт.

61

87452003

WASHER

Hardened, 5/8"

2шт.

PIN PMN002375 (PNU002030, AUS) and after

1шт.

62

87432436

CLAMP

3/8" Loom, 12 Ft

1шт.

62

87432436

CLAMP

3/8" Loom, 14 Ft & 16 Ft

2шт.

63

87366

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

2шт.

64

87452005

RING

Split

2шт.

65

86837477

CLEVIS PIN,12.7mm OD x 57.15mm L

2шт.

66

87452006

DECAL

Notification

8шт.

67

87452004

WASHER

5/8"

2шт.

68

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

Ref 1 to Header

6шт.

280431

NUT,1/2"-13, G5

Ref 1 to Header

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

Ref 1 to Header

6шт.

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

Ref 1 to Ref 5

6шт.

280431

NUT,1/2"-13, G5

Ref 1 to Ref 5

6шт.

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

Ref 1 to Ref 5

6шт.
