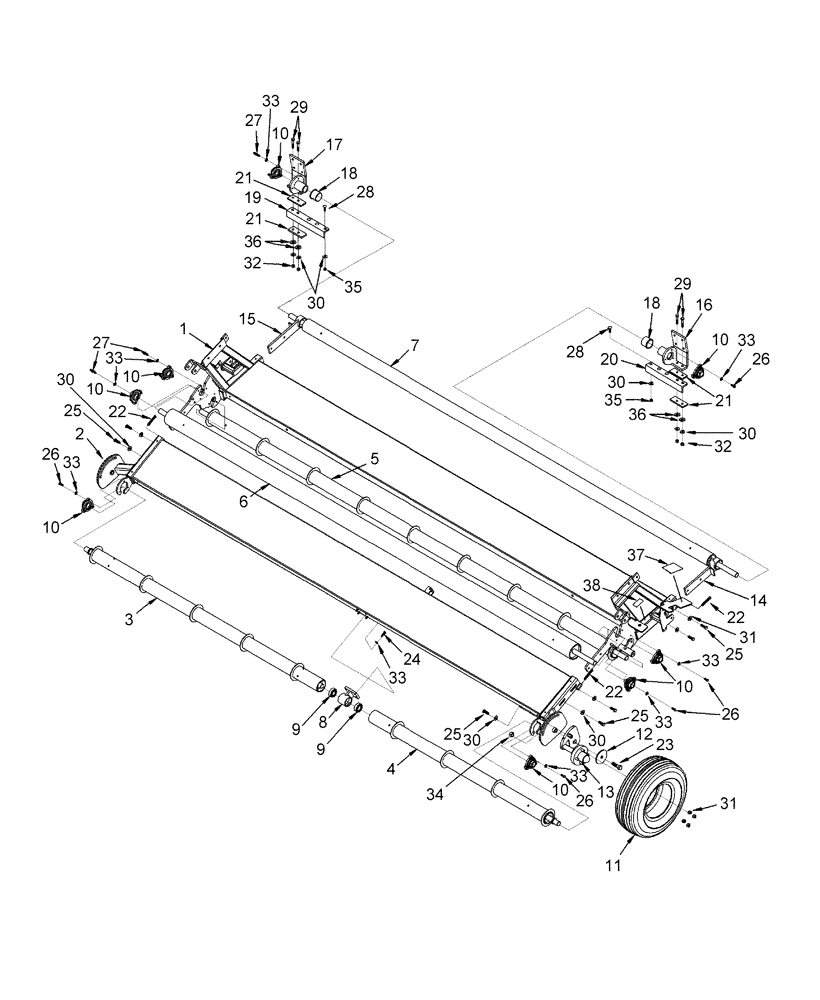

Запчасти Case IH 2016 (20.15[02]) - FRAME, FRONT, TIRE, BELT TYPE [SWATHMASTER], P.I.N. PMN003045 [PNP002010] & AFTER (39) - FRAMES AND BALLASTING

1

87675675

FRAME ASSY

Rear, 12 Ft W/Decals, Grass Seed Special

1шт.

1

87494149

FRAME ASSY

Rear, 14 Ft W/Decals

1шт.

1

87494150

FRAME ASSY

Rear, 16 Ft W/Decals

1шт.

2

87494148

FRAME ASSY

Front, 12 Ft, Grass Seed Special

1шт.

2

87372555

FRAME

Front, 14 Ft

1шт.

2

87372556

FRAME

Front, 16 Ft

1шт.

3

87635765

ROLLER

RH, 12 Ft Grass Seed Special (LH & RH Same)

1шт.

3

87462703

ROLLER

RH, 14 & 16 Ft

1шт.

4

87635765

ROLLER

LH, 12 Ft Grass Seed Special (LH & RH Same)

1шт.

4

87462702

ROLLER

LH, 14 Ft

1шт.

4

87462703

ROLLER

RH, 16 Ft

1шт.

5

87635766

ROLLER

12 Ft Grass Seed Special

1шт.

5

87462697

ROLLER

14 Ft

1шт.

5

87462698

ROLLER

16 Ft

1шт.

6

87462699

ROLLER

12 Ft

1шт.

6

87462700

ROLLER,4180mm L

14 Ft

1шт.

6

87462701

ROLLER,4662mm L

16 Ft

1шт.

7

87462693

ROLLER,3820.5mm L

12 Ft

1шт.

7

87462694

ROLLER,4302.5mm L

14 Ft

1шт.

7

87462695

ROLLER

16 Ft

1шт.

8

373997A1

BEARING HOUSING

Bearing

1шт.

9

156011C92

BALL BEARING

2шт.

10

373987A1

BEARING ASSY

Bearing

8шт.

10

156011C92

BALL BEARING

8шт.

11

See Figure 20.15 (03)

1шт.

12

87642414

PLATE

Wheel Retainer

2шт.

13

See Figure 20.15 (03)

1шт.

14

87372133

BRACKET

LH, Carrier, CNH

1шт.

15

87372130

BRACKET

RH

1шт.

16

87635733

BRACKET

LH (On Cutter Bar), 12 Ft

1шт.

16

87372143

BRACKET

LH (Below Cutter Bar), 14 & 16 Ft

1шт.

17

87635734

BRACKET

RH (On Cutter Bar), 12 Ft

1шт.

17

87372144

BRACKET

RH (Below Cutter Bar), 14 & 16 Ft

1шт.

18

87372657

BUSHING

Flanged

2шт.

19

87642412

ANGLE

RH (Below Cutter Bar), 14 & 16 Ft

1шт.

20

87642400

ANGLE

LH (Below Cutter Bar), 14 & 16 Ft

1шт.

21

413630A1

SHIM

(Below Cutter Bar)

4шт.

22

87759335

SET SCREW,Sq Hd, 1/2" - 13 x 3"

2шт.

23

281074

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

2шт.

24

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

25

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

10шт.

26

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

15шт.

27

87635779

STUD

3/8" x 1" x 1/2", Front, Rear Frame, 12 Ft Grass Seed Special

1шт.

27

386986A1

STUD

3/8" x 1" x 3/4", 12 Ft Grass Seed Special

8шт.

27

386986A1

STUD

3/8" x 1" x 3/4", 14 & 16 Ft

9шт.

28

88586

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

6шт.

29

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

4шт.

30

87532623

CONE WASHER

Lock, M12

20шт.

31

374570A1

WHEEL NUT

Wheel, 1/2"-20 UNF

8шт.

32

280431

NUT,1/2"-13, G5

10шт.

33

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

28шт.

34

280375

NUT,3/4"-10, GC

2шт.

35

280717

NUT,7/16"-14, G5

6шт.

36

86636809

WASHER

.0531" ID x 1-1/4" OD x 1/8"

4шт.

37

87532571

DECAL

Warning, Shield Open, 3-Panel

1шт.

37

84011345

DECAL

2-Panel, Wordless

1шт.

38

87494153

DECAL

Draper Tension

2шт.
