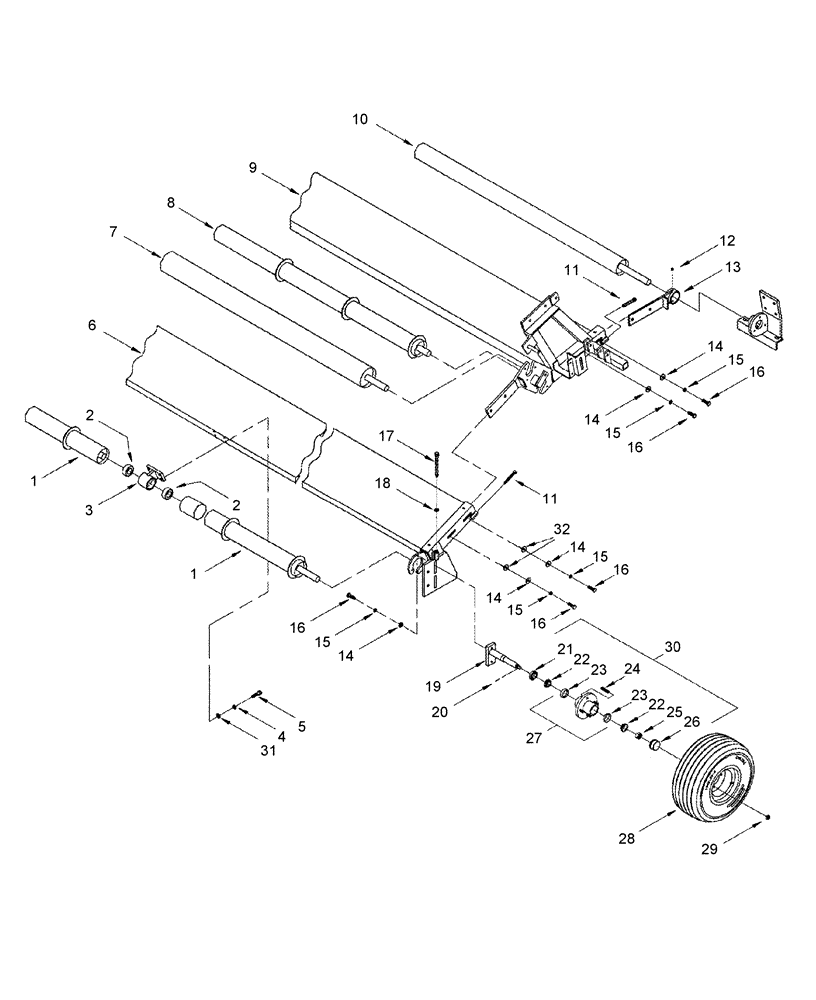

Запчасти Case IH 2016 (20.15[01]) - FRAME, FRONT, BELT TYPE [SWATHMASTER], P.I.N. PMN003045 [PNP002010] & PRIOR (39) - FRAMES AND BALLASTING

1

87462702

ROLLER

Front, 12 Ft, Was 374004A1

2шт.

1

87462702

ROLLER

Front, 14 Ft, Was 374004A1

1шт.

1

87462703

ROLLER

Front, 14 Ft, Was 374005A1

1шт.

1

87462703

ROLLER

Front, 16 Ft, Was 374005A1

2шт.

2

156011C92

BALL BEARING

2шт.

3

373997A1

BEARING HOUSING

Front Roller

1шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

5

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

6

373992A1

FRAME

Front, 12 Ft

1шт.

6

373993A1

FRAME

Front, 14 Ft

1шт.

6

87433449

FRAME

Front, 16 Ft

1шт.

7

87462699

ROLLER

Front, Rear Roller, 12 Ft, Was 374007A1

1шт.

7

87462700

ROLLER,4180mm L

Front, Rear Roller, 14 Ft, Was 374008A1

1шт.

7

87462701

ROLLER,4662mm L

Front, Rear, 16 Ft, Was 87433450

1шт.

8

87462696

ROLLER

Rear, Front Roller, 12 Ft, Was 374009A1

1шт.

8

87462697

ROLLER

Rear, Front Roller, 14 Ft, Was 374010A1

1шт.

8

87462698

ROLLER

Rear, Front, 16 Ft, Was 87433451

1шт.

9

86989883

FRAME

Rear, 12 Ft, W/Decals

1шт.

9

86989884

FRAME

Rear, 14 Ft, W/Decals

1шт.

9

87433448

FRAME

Rear, 16 Ft, W/Decals

1шт.

10

87462693

ROLLER,3820.5mm L

Rear, 12 Ft, Was 373863A1

1шт.

10

87462694

ROLLER,4302.5mm L

Rear, 14 Ft, Was 373864A1

1шт.

10

87462695

ROLLER

Rear, 16 Ft, Was 87433452

1шт.

11

87759335

SET SCREW,Sq Hd, 1/2" - 13 x 3"

4шт.

12

86636811

LUBE NIPPLE

Straight, 1/8"

2шт.

13

373889A1

BRACKET

Carrier, RH

1шт.

13

86992031

BRACKET, SUPPORTING

Carrier, LH, W/AHHC Tab

1шт.

14

86636809

WASHER

1/2"

12шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

16

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

12шт.

17

373933A1

BOLT

Adjust Wheel Height, 1/2"-13 x 6"

2шт.

18

280431

NUT,1/2"-13, G5

2шт.

19

373935A1

SPINDLE

2шт.

20

86523956

COTTER PIN,5/32" x 1"

2шт.

21

374186A1

SEAL

2шт.

22

374125A1

ROLLER BEARING

4шт.

23

374123A1

BEARING CUP

4шт.

24

374166A1

STUD

Hub, 1/2"-20

8шт.

25

374326A1

NUT

1"

2шт.

26

374167A1

CAP

2шт.

27

374165A1

HUB

W/Cups and Studs

2шт.

28

442598A1

WHEEL ASSY,457.2mm OD x 215.9mm W

W/Rim, Standard, 18 x 8.5 x 8

2шт.

374168A1

TYRE/TIRE

TIRE, RUBBER 18 x 8.5-8, Turf

1шт.

28

442599A1

WHEEL ASSY

W/Rim, HD, 18 x 8.5 x 8

2шт.

442597A1

RIM

Rim, 8". 4 Bolt

1шт.

436096A1

TYRE/TIRE

TIRE, RUBBER HD, 18 x 8.5-8

1шт.

374169A1

TUBE

18 x 8.5/9.5-8, W/TR-13 Valve

1шт.

29

374570A1

WHEEL NUT

Wheel, 1/2"

8шт.

30

373932A1

HUB ASSY.

Includes Ref 29

2шт.

31

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

32

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

1/2". Hardened

8шт.
