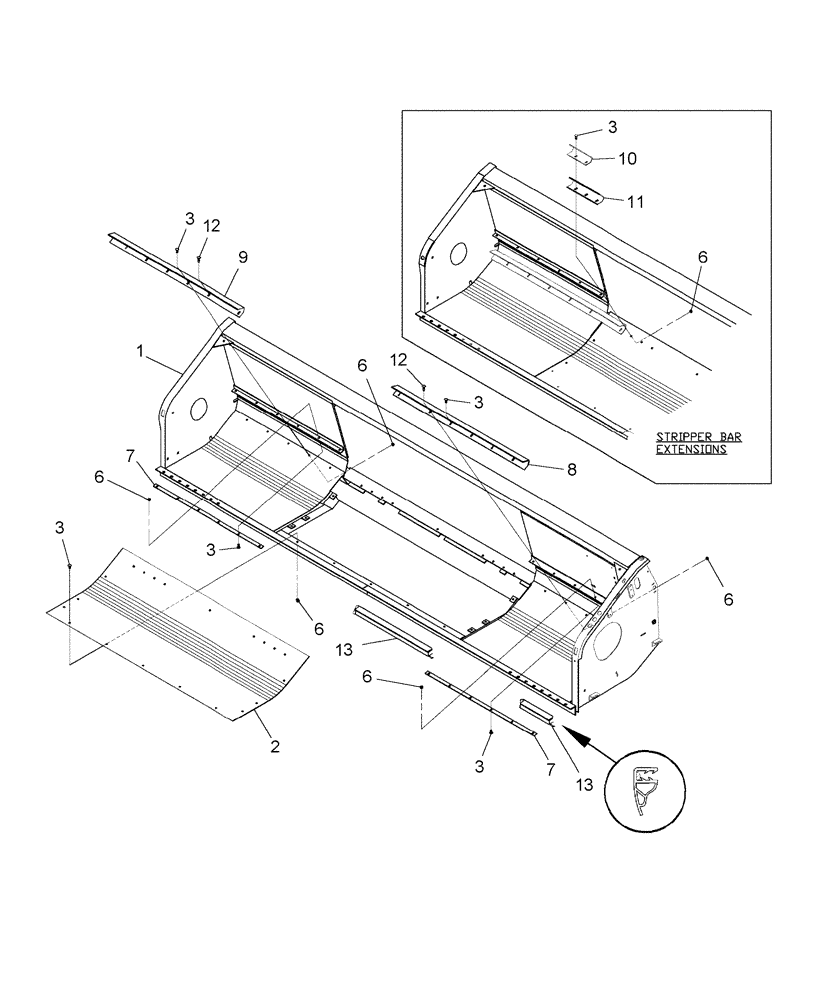

Запчасти Case IH 2016 (20.01) - FRAME (39) - FRAMES AND BALLASTING

1

NLS

NO LONGER SERVICED

Header, W/Decals, 12 Ft & 14 Ft

1шт.

1

NLS

NO LONGER SERVICED

Header, W/Decals, 16 Ft

1шт.

2

440392A1

SHEET

Bottom, Center

1шт.

3

86636815

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 8.8, Full Thd

12 Ft & 14 Ft

44шт.

3

86636815

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 8.8, Full Thd

16 Ft

48шт.

4

86636807

WASHER

M8 Flat, 12 Ft & 14 Ft

42шт.

4

86636807

WASHER

M8 Flat, 16 Ft

46шт.

5

87016617

LOCK WASHER,M8

12 Ft & 14 Ft

42шт.

5

87016617

LOCK WASHER,M8

16 Ft

46шт.

6

43362

NUT,M8 x 1.25, Cl 10

12 Ft & 14 Ft

42шт.

6

43362

NUT,M8 x 1.25, Cl 10

16 Ft

46шт.

7

87473303

BAR

Upper Stripper, 12 Ft & 14 Ft

2шт.

7

87753033

BAR

Upper Stripper, 16 Ft

2шт.

8

87675655

CHANNEL

Lower, Stripper, LH, 12 Ft & 14 Ft

1шт.

8

87675652

CHANNEL

Lower, Stripper, LH, 16 Ft

1шт.

9

87675656

CHANNEL

Lower, Stripper, RH, 12 Ft & 14 Ft

1шт.

9

87675653

CHANNEL

Lower, Stripper, RH, 16 Ft

1шт.

10

87675654

CHANNEL

Stripper Ext, RH, CR 970/980, 50"

1шт.

10

87675651

CHANNEL

Stripper Ext, LH, CR 970/980, 50"

1шт.

11

440398A1

BAR

Stripper Ext, RH, CR 920/960, 40"

1шт.

11

440399A1

BAR

Stripper Ext, LH, CR 920/960, 40"

1шт.

12

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

13

87635776

RUBBER

3223mm LOng, 12 Ft Grass Seed Special Only

1шт.
