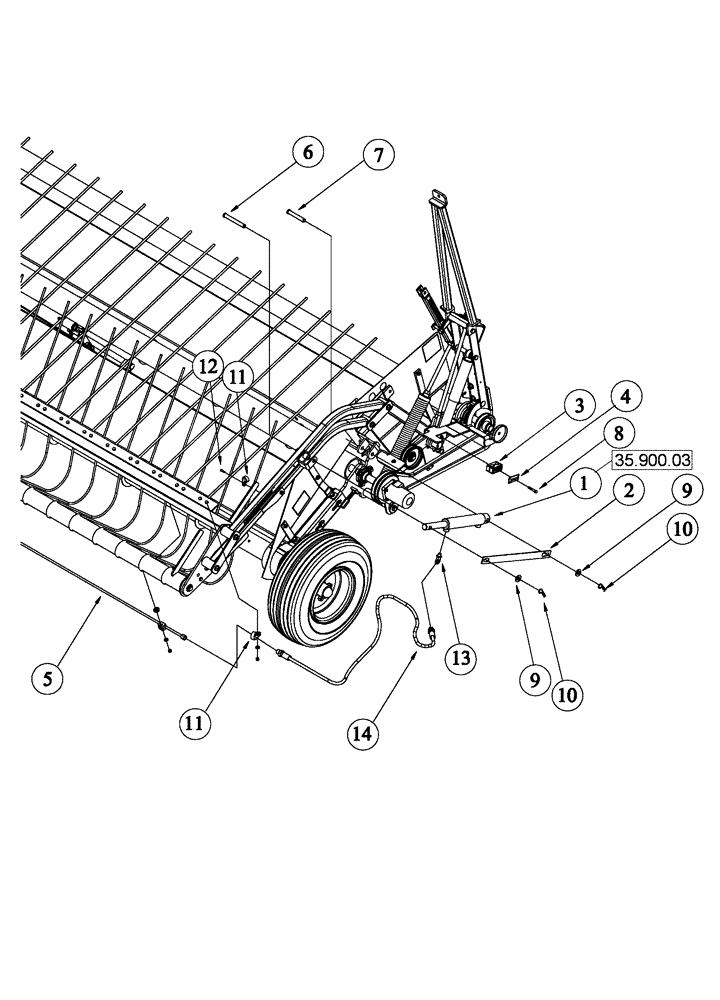

Запчасти Case IH 2016 (35.900.01) - HYDRAULIC, SWATHMASTER (35) - HYDRAULIC SYSTEMS

1

413650A1

CYLINDER,Double Acting, 254mm Stroke

Master, 3000 psi, 1.5 x 10

1шт.

1

413651A1

CYLINDER

Slave, 3000 psi, 1.25 x 10

1шт.

2

NSS

NOT SOLD SEPARAT

BRACE, Cylinder, For Shipping Only

2шт.

3

87532568

INSERT

1шт.

4

87532569

PLATE

1шт.

5

413633A1

HYD TUBE

12 Ft

1шт.

5

413634A1

TUBE

14 Ft

1шт.

5

87448946

TUBE,7.747 mm ID x 9.525/0.375 mm OD x 3810 mm L

16 Ft

1шт.

6

87522306

CLEVIS PIN

5/8" x 5"

2шт.

7

345911A1

PIN

5/8" x 4"

2шт.

8

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

9

495-11066

WASHER,5/8", SAE

4шт.

10

341198A1

PIN

4шт.

11

413662A1

HOSE CLAMP

Hose, Vinyl, 9/16"

7шт.

12

377773A1

SCREW,Hex, #14 x 19mm

#14 x 3/4", Sheet Metal

2шт.

13

374569A1

ELBOW UNION

Union Elbow #6 MORB x #6 MJIC

2шт.

14

413635A1

HOSE

2шт.
