Запчасти Case IH 2016 (20.05) - HYDRAULICS (35) - HYDRAULIC SYSTEMS

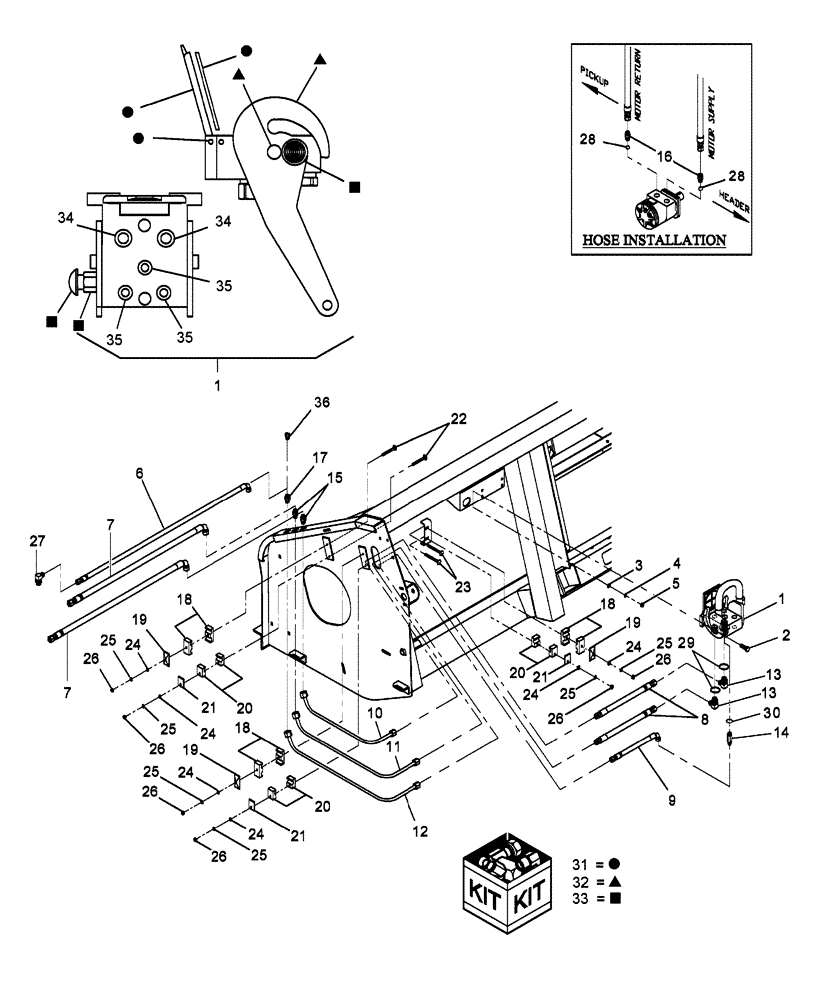

Схема запчастей Case IH 2016 - (20.05) - HYDRAULICS (35) - HYDRAULIC SYSTEMS
24
19
14
33
32
24
21
15
7
24
8
28
31
35
7
20
31
13
33
33
26
26
11
24
31
1
23
28
32
25
34
25
19
24
26
35
32
3
6
27
26
9
18
36
20
21
18
25
25
12
19
26
17
35
30
22
32
31
4
10
34
26
5
20
33
1
21
18
33
25
13
29
25
24
31
16
2

Артикул

Название

Примечание

Количество

1

87400249

COUPLING

Quick Release

1шт.

2

863-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

892-11008

LOCK WASHER,8mm ID

4шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

6

440407A1

HOSE

Holddown

1шт.

7

440408A1

HOSE

Drive, Rakeup

2шт.

7

87372650

HOSE,12.70 mm ID x 1400.00 mm, SAE 100R16

Drive, Belt Type (Swathmaster)

2шт.

8

440409A1

HOSE,12.70 mm ID x 280.00 mm, SAE 100R2AT

Intermediate

2шт.

9

440410A1

HOSE

Hold Down Intermediate

1шт.

10

440404A1

HYD TUBE

Motor Supply, 12 Ft & 14 Ft

1шт.

10

87433440

TUBE,9.3 mm ID x 12.7/0.5 mm OD x 1000 mm L

Motor Supply, 16 Ft

1шт.

11

440405A1

HYD TUBE

Motor Return, 12 Ft & 14 Ft

1шт.

11

87433441

HYD TUBE,9.398 mm ID x 12.7/0.5 mm OD x 1750 mm L

Motor Return, 16 Ft

1шт.

12

440406A1

HYD TUBE

Hold Down, 12 Ft & 14 Ft

1шт.

12

87433442

HYD TUBE,7.747 mm ID x 9.525 / 0.375 mm OD x 1335 mm L

Hold Down, 16 Ft

1шт.

13

440419A1

ELBOW

#8 ORB M x #8 JIC M

2шт.

14

440420A1

ADAPTER

#6 ORB M x #6 JIC M

1шт.

15

441789A1

UNION

#8 JIC

2шт.

16

441788A1

ADAPTER

ORB to JIC, 10-8S

2шт.

17

86989926

UNION

6-6S

1шт.

18

86989928

PIPE CLAMP

3шт.

19

86989929

COVER PLATE

3шт.

20

86989930

PIPE CLAMP

3шт.

21

86989932

COVER PLATE

Clamp

3шт.

22

412454

CARRIAGE BOLT,Short Sq Nk, M6 x 60mm, Cl 8.8

4шт.

23

412364

CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8

2шт.

24

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6шт.

25

892-11006

LOCK WASHER,M6

6шт.

26

829-1406

NUT,Hex, M6 x 1, Cl 10.9

6шт.

27

374569A1

ELBOW UNION

#6 MORB x #6 MJIC

1шт.

28

87433414

O-RING

#10

2шт.

29

87433413

O-RING

#8

2шт.

30

87433415

O-RING

#6

1шт.

31

84435044

GUARD

Kit

1шт.

32

86623901

HANDLE

Kit

1шт.

33

86623902

LATCH

Kit

1шт.

34

84435046

COUPLING

Kit, Quick Opening, 3/8" x 3/4"-16, UNF

1шт.

35

87433417

KIT

1/4" x 9/16"-18, UNF

1шт.

36

86513049

PLUG,9/16" - 18 JIC

1шт.

Выбрано товаров: 40
