(35.900.03) - HYDRAULIC CYLINDER, SWATHMASTER AND RAKE-UP

Запчасти Case IH 2015 (35.900.03) - HYDRAULIC CYLINDER, SWATHMASTER AND RAKE-UP (35) - HYDRAULIC SYSTEMS

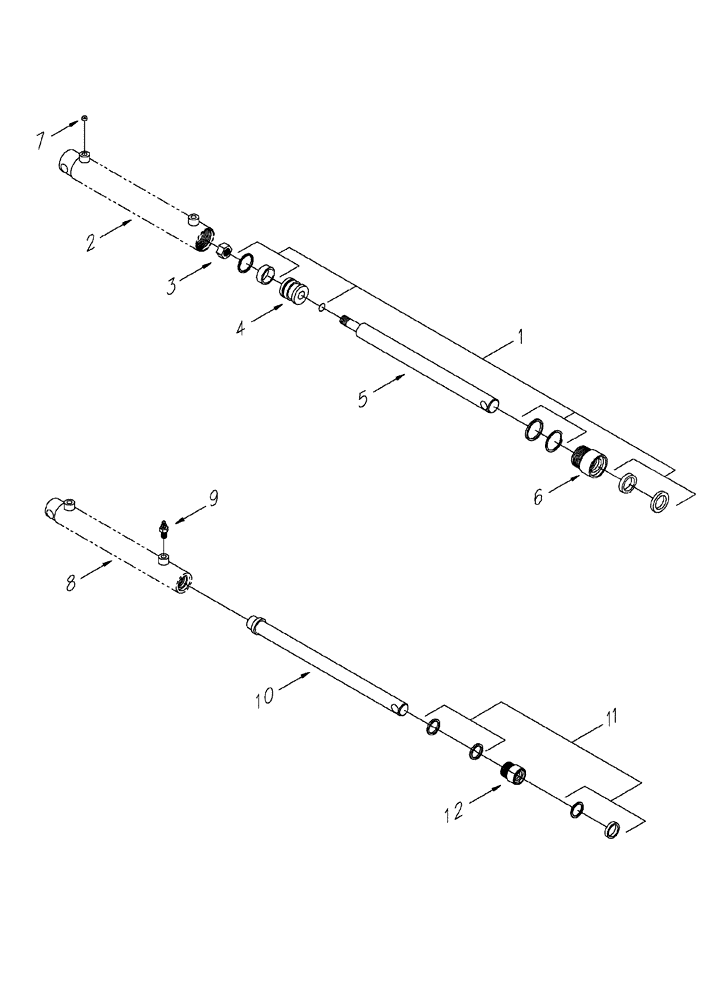

Схема запчастей Case IH 2015 - (35.900.03) - HYDRAULIC CYLINDER, SWATHMASTER AND RAKE-UP (35) - HYDRAULIC SYSTEMS
6
11
2
4
9
5
7
1
8
10
12
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

413650A1

CYLINDER,Double Acting, 254mm Stroke

Master, 1-1/2 ID x 10 in strk, 3000 PSI

1шт.

1

413656A1

SEAL KIT

Seal, 3000 PSI Master

1шт.

2

NSS

NOT SOLD SEPARAT

BARREL, 3000 PSI Master

1шт.

3

NSS

NOT SOLD SEPARAT

NUT, Lock

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON, 3000 PSI Master

1шт.

5

NSS

NOT SOLD SEPARAT

SHAFT, 3000 PSI Master

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND, 3000 PSI Master

1шт.

413651A1

CYLINDER

Slave, 1-1/4 ID x 10 in strk, 3000 PSI

1шт.

7

403772A1

ORIFICE

#6 Orb x 0.03125

1шт.

8

NSS

NOT SOLD SEPARAT

BARREL, 3000 PSI Slave

1шт.

9

413661A1

PLUG

Bleed Screw, 3000 PSI #4 Orb

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT, 3000 PSI Slave

1шт.

11

413660A1

SEAL KIT

Seal, 3000 PSI Slave

1шт.

12

NSS

NOT SOLD SEPARAT

GLAND, 3000 PSI Slave

1шт.
