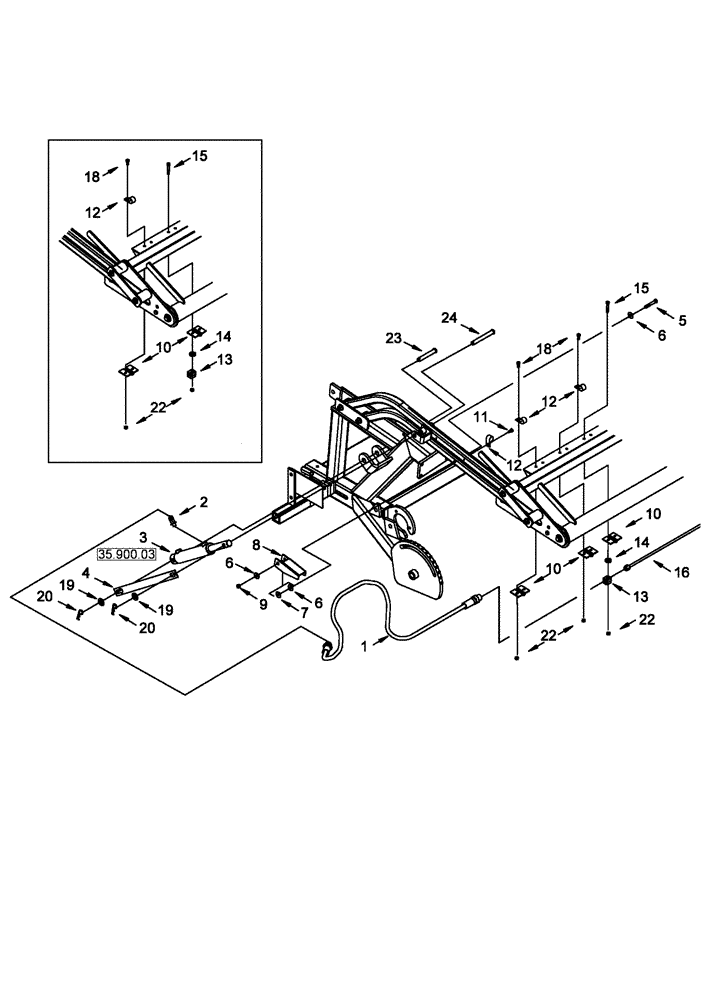

Запчасти Case IH 2015 (35.900.02) - HYDRAULIC HOLDDOWN, RAKE-UP (35) - HYDRAULIC SYSTEMS

1

413635A1

HOSE

Hydraulic Lift

2шт.

2

374569A1

ELBOW UNION

Union Elbow

2шт.

3

413650A1

CYLINDER,Double Acting, 254mm Stroke

Master, 1-1/2 ID x 10 in strk, 3000 PSI

1шт.

3

413651A1

CYLINDER

Slave, 1-1/4 ID x 10 in strk, 3000 PSI

1шт.

4

NSS

NOT SOLD SEPARAT

BRACE,Cylinder, For Shipping Only

2шт.

5

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

6

495-21044

WASHER,3/8"

6шт.

7

374328A1

WASHER

3/8 x 1.1 x .062

2шт.

8

448679A1

LOCK

Safety Hold Down

2шт.

9

231-4246

LOCK NUT,3/8"-16, GB

2шт.

10

87642415

CLIP

Fiberglass Rod

6шт.

11

377773A1

SCREW,Hex, #14 x 19mm

3/4

3шт.

12

413662A1

HOSE CLAMP

9/16"

6шт.

13

413632A1

CLAMP

3/8"

5шт.

14

87372633

SPACER

5шт.

15

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5шт.

16

413634A1

TUBE

Steel Line

1шт.

18

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

19

495-11066

WASHER,5/8", SAE

4шт.

20

341198A1

PIN

4шт.

22

483303R1

LOCK NUT

5/16"

6шт.

23

345911A1

PIN

5/8" x 4"

2шт.

24

87522306

CLEVIS PIN

5/8" x 5"

2шт.
