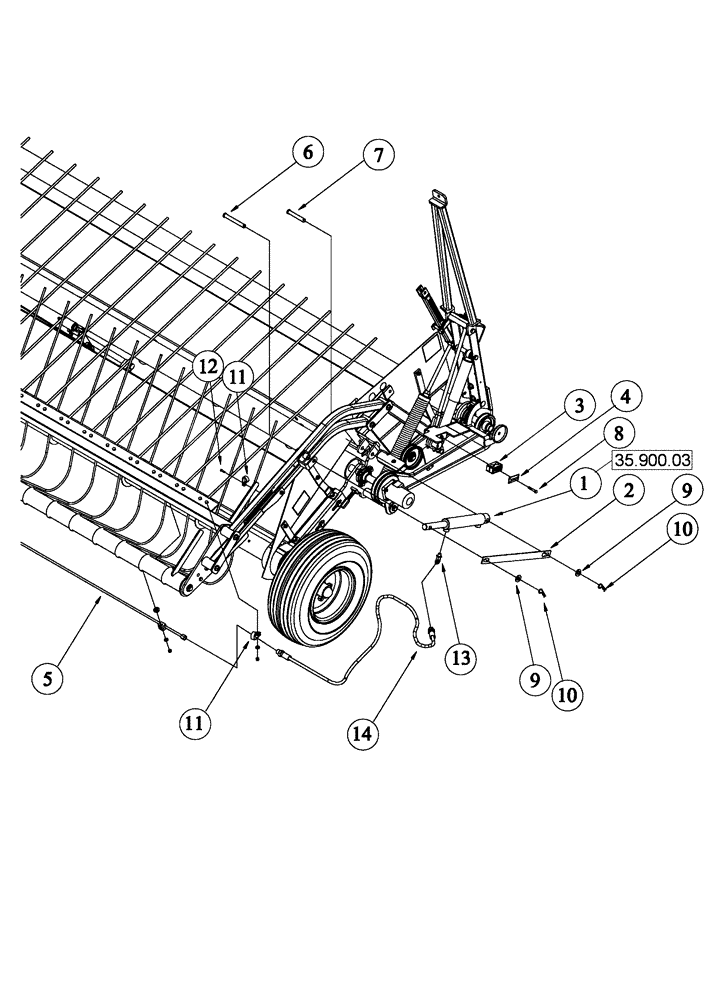

Запчасти Case IH 2015 (35.900.01) - HYDRAULIC, SWATHMASTER (35) - HYDRAULIC SYSTEMS

1

413650A1

CYLINDER,Double Acting, 254mm Stroke

Master, 3000 psi, 1.5 x 10

1шт.

1

413651A1

CYLINDER

Slave, 3000 psi 1.25 x 10

1шт.

2

NSS

NOT SOLD SEPARAT

BRACE, Cylinder, For Shipping Only

2шт.

3

87532568

INSERT

1шт.

4

87532569

PLATE

1шт.

5

413634A1

TUBE

1шт.

6

87522306

CLEVIS PIN

5/8" x 5"

2шт.

7

345911A1

PIN

5/8" x 4"

2шт.

8

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

9

495-11066

WASHER,5/8", SAE

4шт.

10

341198A1

PIN

4шт.

11

413662A1

HOSE CLAMP

7шт.

12

377773A1

SCREW,Hex, #14 x 19mm

#14 x .75

2шт.

13

374569A1

ELBOW UNION

Union Elbow

2шт.

14

413635A1

HOSE

2шт.
